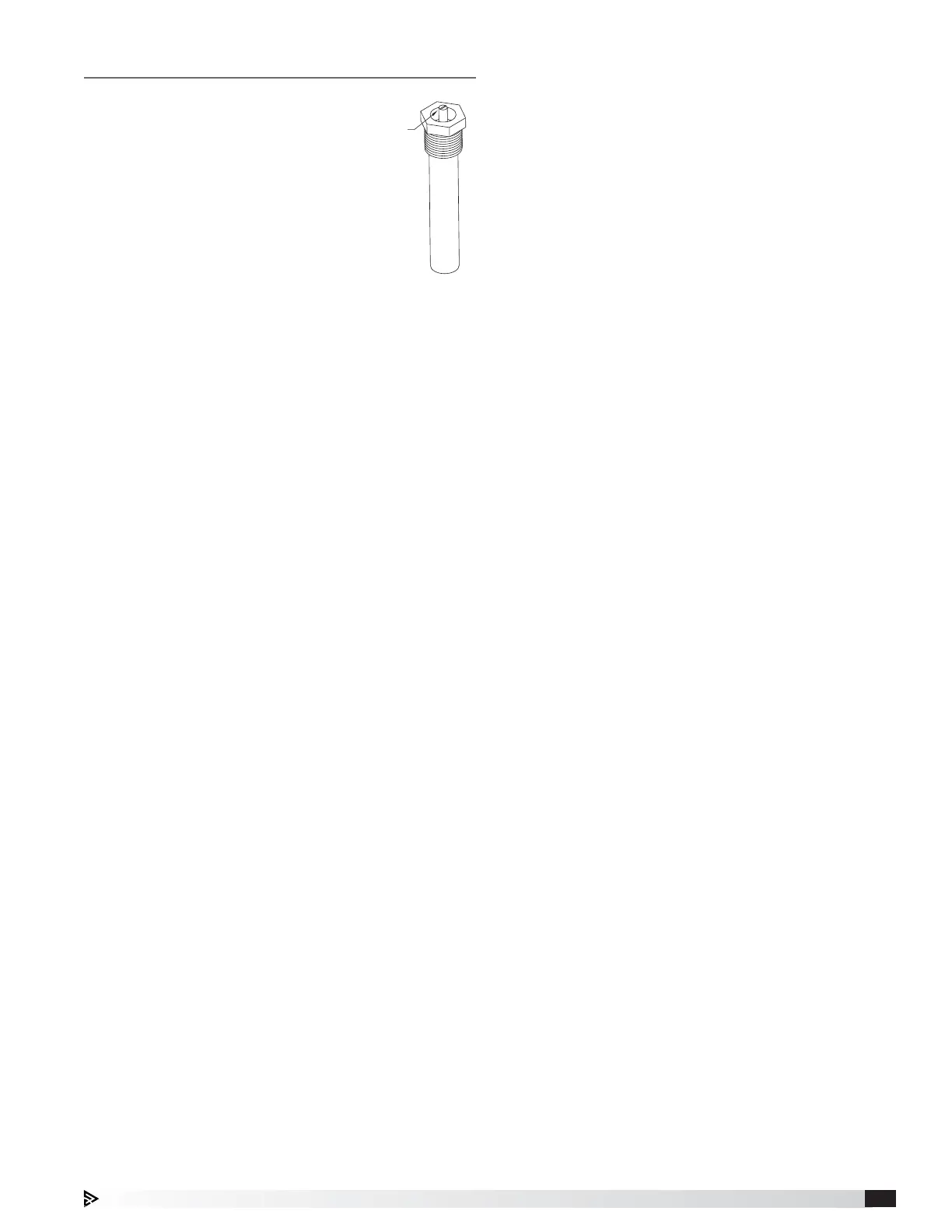

Page #7 background image
Calibration
Thermostat is preset by factory to
95°F (35°C) and has a slow make
and break contact. It will make
contact on a temperature rise and
break contact on temperature
fall. The temperature set point
may have to be adjusted slightly
depending of both ambient
and cooking conditions. The
adjustment knob is located on
the back of the thermostat. Use a
small blade screwdriver to make the adjustments.
1. Turn counterclockwise to increase the temperature
set point, turn clockwise to decrease the
temperature set point.
2. Quarter revolution in either direction corresponds to
a 22.5°F (-5.3°C) adjustment. Be sure to make small
adjustments, about 1/16 of a turn (≈6°F) or less at
one time.
3. Do not exceed more than one-half revolution in either
direction.
4. Check system operation before making additional
adjustments.
Adjustment
Screw
Temperature Interlock 7
