Tag barcodes
Tag barcodes (Figure 2.3) contain a Tag’s
manufacturing history.

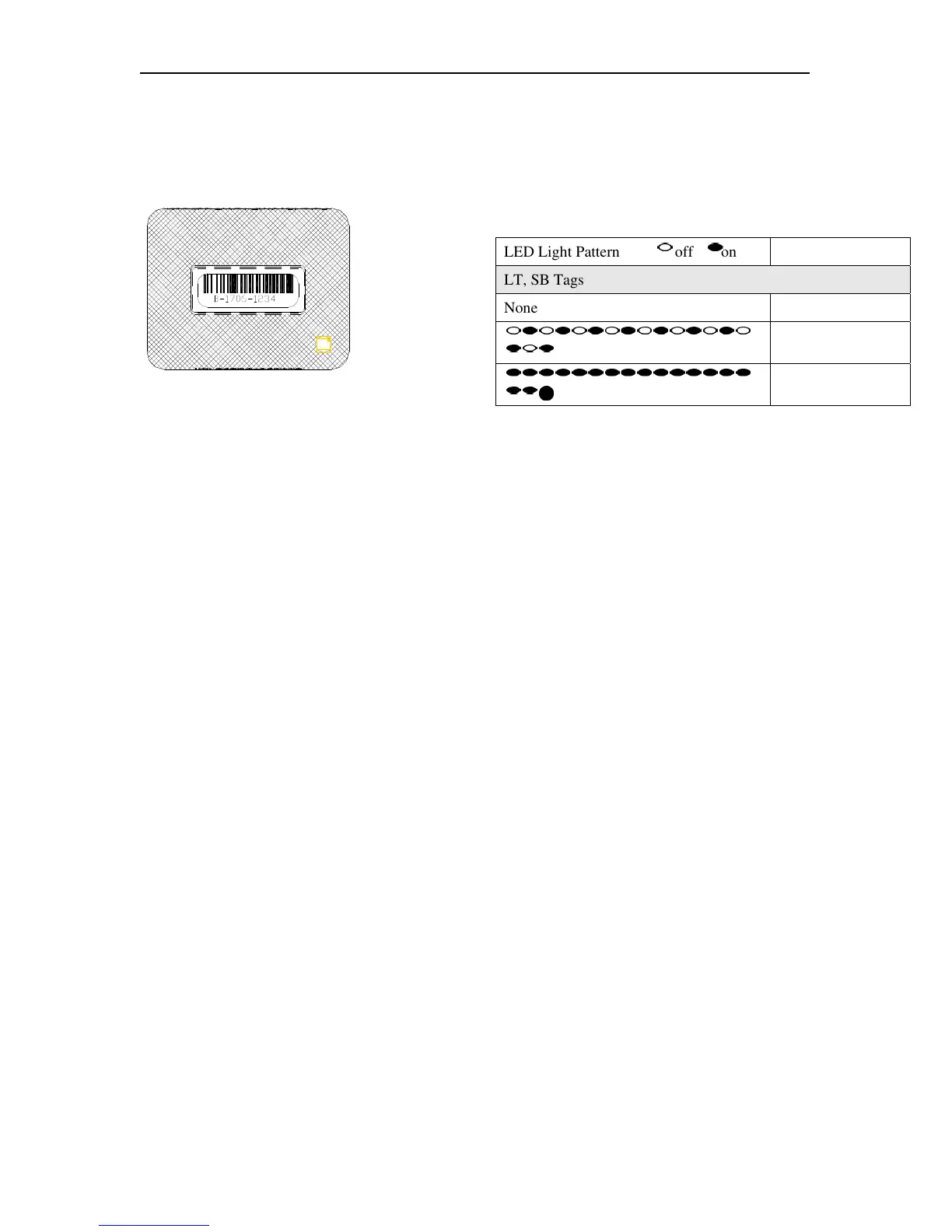

Figure 2.3 Tag barcode example
The coding scheme is as follows:
M-WWYY-TSSS
”M” is the manufacturer designator.
”WWYY” is the date code.
(“1706” would mean the 17
th
week of 2006)
”T” is the tag type designator.
3 is for LT (Long Term)
4 is for SB (Slotted Back)
”SSS” is the serial number for that tag type
manufactured during that week.
Visual Pulse LED
The Visual Pulse LED indicates the Tag’s
current mode (
see Table 2.1)
Table 2.1 Visual Pulse LED status
LED Light Pattern off on Tag LED Status
LT, SB Tags
None
Tag is off.
Active, not in zone
Active, in zone
