Installation Manual I General Information
6
MP4010-1903

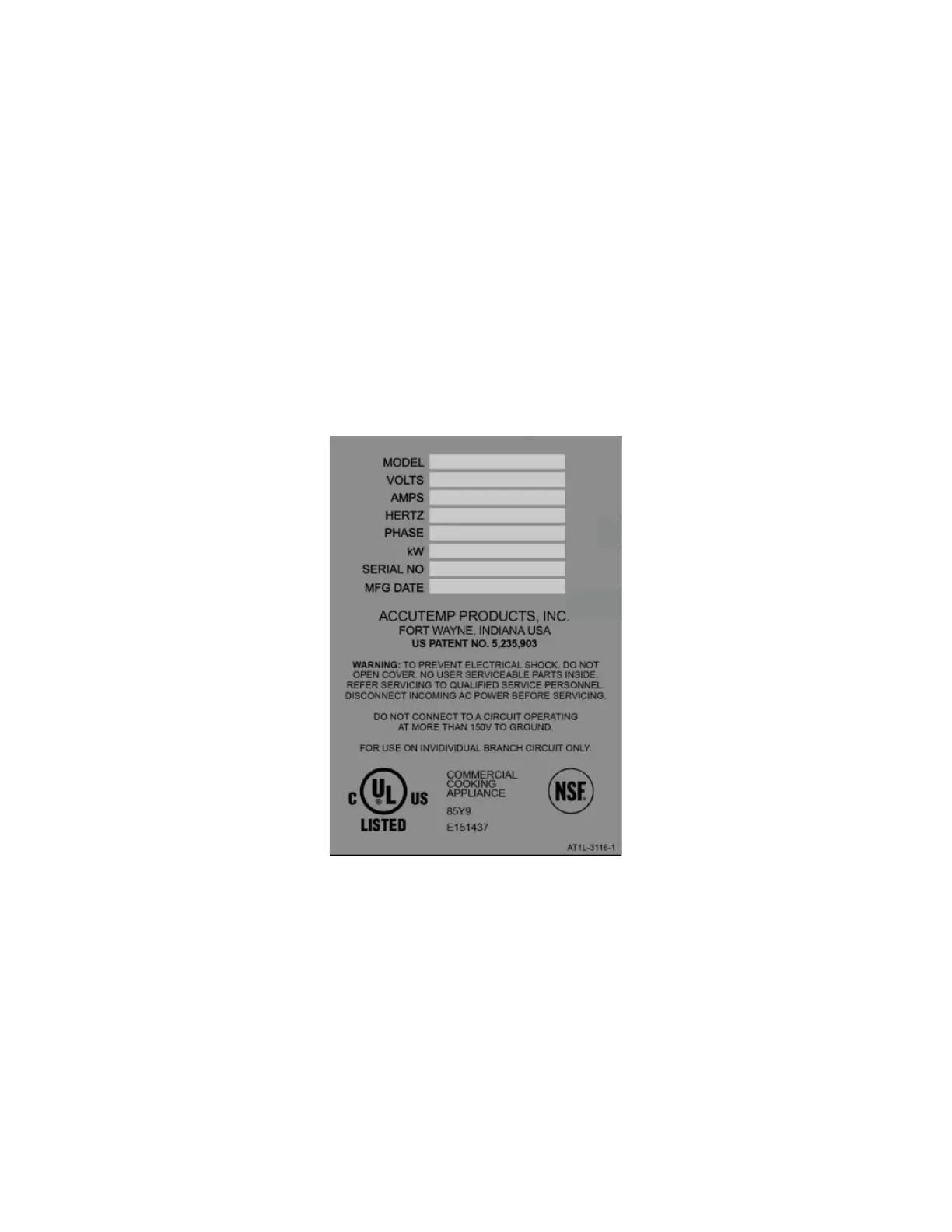

2. EQUIPMENT DATA PLATE
2.1 Labeling
Model: A B CCC D E FFF G H I J K
Where:
A is the base model E = Electric
B is the size of the unit: 6 pan
CCC is the supply Voltage
D is the number of phases: 1 or 3
E is the control series D=Manual Fill, E=Autofill
F is the energy input
G is the timer configuration
H is the thermostat configuration
I is the door configuration
J is the leg configuration
K is the HDW configuration
