I/O Connections
Location: There are three locations on the VS-U610I that have I/O connections.
(1) The rear of the chassis (integrated into the motherboard)
(2) The front of the chassis (integrated into the chassis front panel)
(3) The rear of the chassis (integrated into the graphics card, as applicable)
Procedure:
Note: I/O connections are integral parts of higher-level
assemblies and thus to replace them the entire assembly would
need to be replaced.
To uninstall/reinstall any of the I/O connections refer to the
sections below:
(1) Motherboard Section (page 23).
(2) Chassis Section (page (page 11)
(3) Expansion Card/Graphics Card Section (page 19).

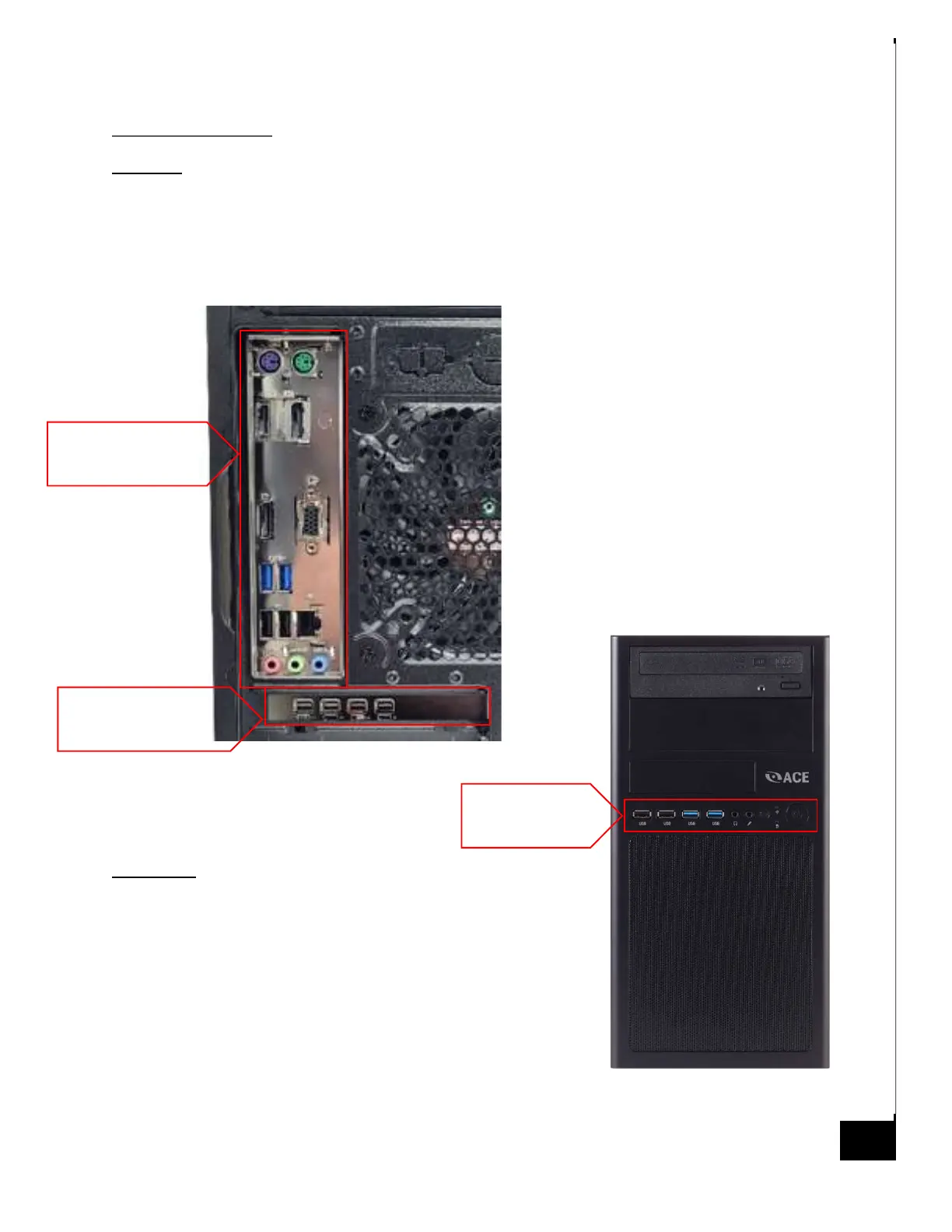

Graphics Card I/O
Connections
Front Panel I/O
Connections
Motherboard I/O
Connections
To Next Page
