Step 9: Reconnect the required power cables. Depending on the configuration of the system
this may vary, but the basic system required connection of the following:
24 Pin ATX_PWR (see motherboard diagram below for location)
8 Pin ATX_12V (see motherboard diagram below for location)
SATA Power to HDD
SATA Power to Optical Drive

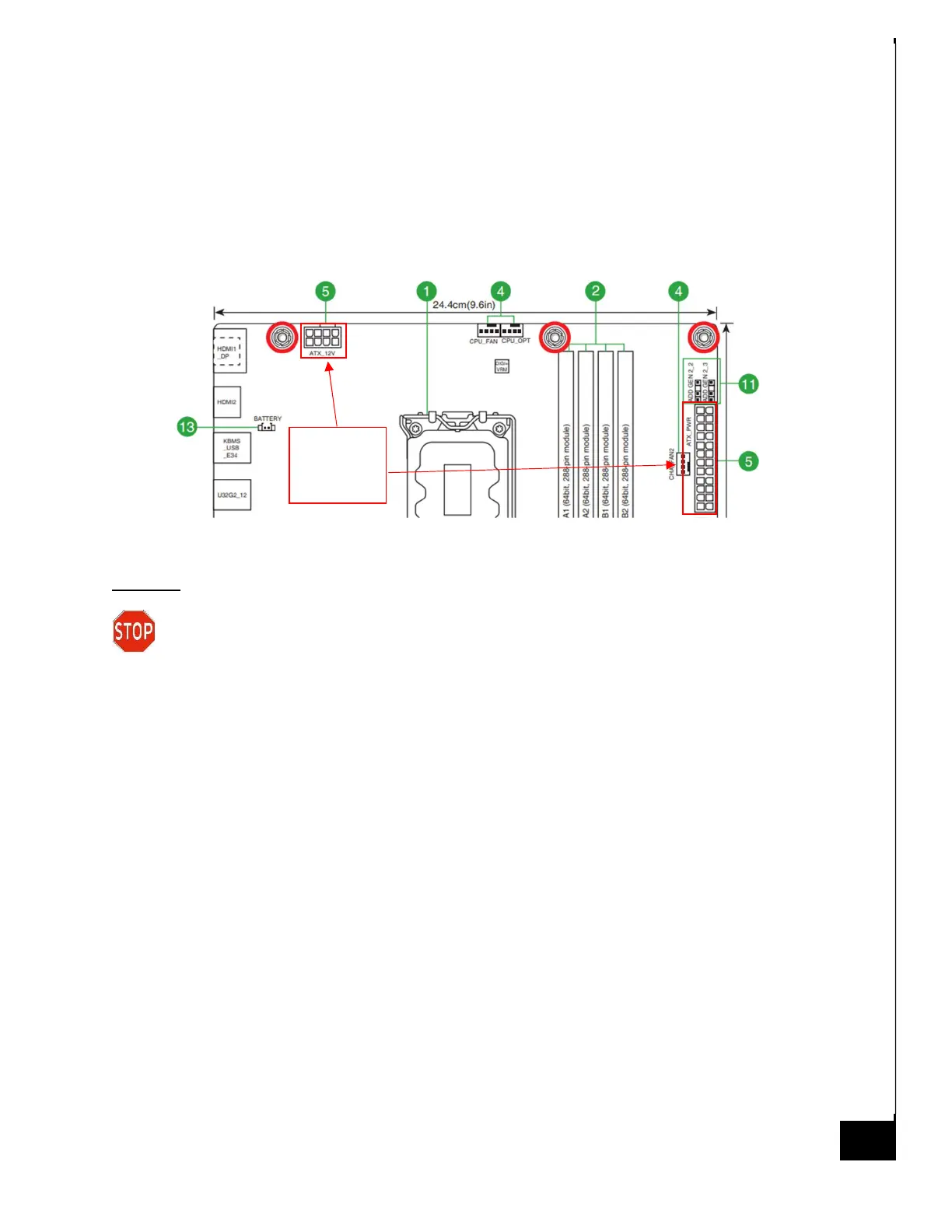

Motherboard Diagram for PSU Connections
Disposal:
Selective Treatment/ Special Handling Per Annex VII, Directive 2012/19/EU: The
motherboard is a printed circuit board of greater than 10 sq. cm and must be removed
from the device and must be disposed of, or recovered, in compliance with the requirements of
Directive 2008/98/EC.
PSU
connection
points
