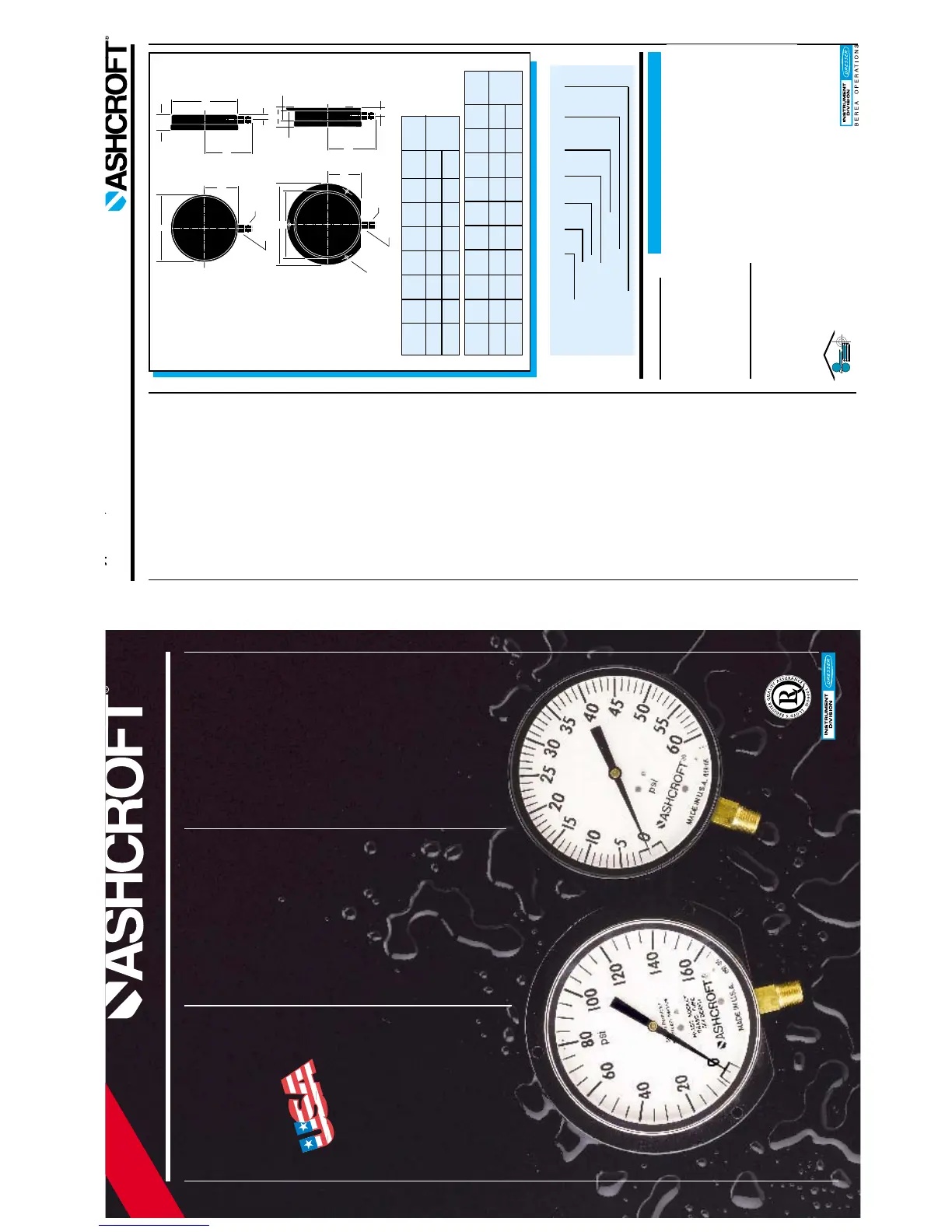

Product Specifications
Ashcroft Model Number: 1000, 2071A
Size: 4
1
⁄2˝
Case: 1000 - Black painted steel
2071A- Black painted
aluminum with
back flange
Ring: 1000 - Black painted steel,
friction fit
2071A- Chrome plated steel,
friction fit
Window: Glass
Dial: Black figures on white
background, steel
Pointer: 1000 - Black, Aluminum
2071A- Adjustable, Black,
Aluminum
Bourdon
Tube: 1000 - Bronze
2071A- Bronze, soldered,
siphon required for
steam service
Movement: PowerFlex with
polyester segment
Socket: Brass
Connection: 1/4" NPT lower
Ranges: Vacuum - 600 psi and
compound
Accuracy: 1000 - ASME B40.1,
Grade B, ± 3-2-3%
2071A- ASME B40.1,
Grade A, ± 2-1-2%
Optional Features
Case: Case color (other than black)
Window: Plastic
Pointer: Adjustable (Type 1000)
Socket: Nickel Plated
Throttle plugs
_
0.007˝, 0.013˝,
0.020˝, 0.063˝ orifices
Others: Customized dials
Chrome ring (Type 1000)
Black ring (Type 2071A)
Non-standard ranges
Special calibration on
application
Commercial Gauges
A
➤
➤
➤
➤
➤
➤
➤
➤
1/4 N.P.T.
G
➤
➤
F
E
D
B
➤
➤
➤
➤
C
D
➤
➤
➤
➤
➤
➤
➤
1/4 N.P.T.
G
E
H
➤
➤
➤
➤
C
➤
3 HOLES .218 (ø 5.5)
EQUALLY SPACED ON
ø 5 3/8 (137) BOLT CIRCLE.
➤
I
➤
➤
A
➤
➤
➤
➤
F
B
T-1000
T-2071A
How to Order 45 W 1000 H 02L X(AP) 100#
Dial Size: 4
1
⁄2 ˝
PowerFlex Movement
Case type number: 1000
Socket material: Brass
Connection size/location: 1/4˝ Lower
Option: Adjustable Pointer
Range: 100 psi
Dimensions
Domestic Headquarters
Berea, Kentucky
Harrison Road
Berea, KY 40403
Tel: (606) 986-9333
FAX 1- 800-28 BEREA
(1-800-282-3732)
email:dresser-berea-mkt@dspn.com
International Headquarters
Stratford, Connecticut
250 E. Main Street
Stratford, CT 06497
Tel: (203) 378-8281
FAX: (203) 385-0499
Sales Offices
DresserInstrument Division,Stratford
Printed
In-House
T-1000 A B C D E F Weight
4
1
⁄2 ˝G
Inches 4.75 1.13 2.34 4.69 3.38 0.34 9/16
12 oz.
mm (121) (29) (60) (119) (86) (9) (14)
Wrench
Flats
T-2071A A B C D E F H I Weight
4
1
⁄2 ˝G
Inches 4.75 1.41 2.38 5.81 3.38 0.47 9/16 0.42 0.25
16 oz.
mm (121) (36) (60) (148) (86) (12) (14) (11) (6)
Wrench
Flats
Specifications subject to change without notice.
Subject to standard terms and conditions of sale.
Copyright Instrument Division, Dresser Industries Inc., 5/95
CG 10/21 20M HG rev 10/97
Chicago, Illinois
400 W. Lake Street,
Suite 318
Roselle, IL 60172-3392
Tel: (630) 980-9030
FAX: (630) 980-9440
Hartford, Connecticut
1501 East Main St.
Meriden, CT 06450-2860
Tel: (203) 235-0450
Fax: (203) 235-0593
Houston, Texas
3838 N. Sam Houston
Parkway East, Suite 120
Houston, TX 77032
Tel: (281) 590-1092
FAX: (281) 590-7100
Los Angeles, California
3931 Mac Arthur Blvd.,
Suite 202
Newport Beach, CA 92660
Tel: (714) 852-8948
FAX: (714) 852-8971
Mobile, Alabama
851 South Beltline Hwy., Suite 402, Mobile, AL 36606
Tel: (334) 473-1692 Fax: (334) 473-1782
The tradition of providing
accurate, distinctive, reliable
pressure instruments continues in
Ashcroft 4
1
⁄2˝ Type 1000 and type
2071A commercial gauges.
Ashcroft 4
1
⁄2˝ Type 1000 gauges
utilize a black steel case and ring,
with a glass window. These
gauges are appropriate for
general industrial applications and
can be customized to complement
your equipment.
Ashcroft 4
1
⁄2˝ Type 2071A,
Contractor gauges, are
constructed with a back flanged
aluminum case, painted black,
and a chrome ring with glass
window. These gauges are
designed to meet the needs of
heating, ventilating, plumbing and
air conditioning contractors. The
accuracy of these gauges is
ASME B40.1, Grade A, ± 2-1-2%.
BULLETIN CG - 10/21
Commercial
Gauges
Type 1000, 2071A
AVAIL
FROM STO
Incorporated in both, Type 1000
gauges and Type 2071A gauges,
is the PowerFlex
™
movement.
This movement provides superior
resistance to shock, vibration, and
pulsation; thereby assuring longer
life for your pressure instrument.
True Zero™ indication, a
standard feature on these gauges,
reduces the potential risk of
installing a damaged gauge on
your equipment. Other benefits of
this unique safety feature include
reduced manufacturing and
inspection costs.
As in all Ashcroft commercial
instruments, the dial artwork is
designed to provide gauges that
are consistent in appearance,
attractive, and easy to read.
BEREA OPERATIONS
MADE IN THE
Visit our website @ www.dresser.com/instruments/
