Acer AL1706

40
ONNECTOR INFORMATION

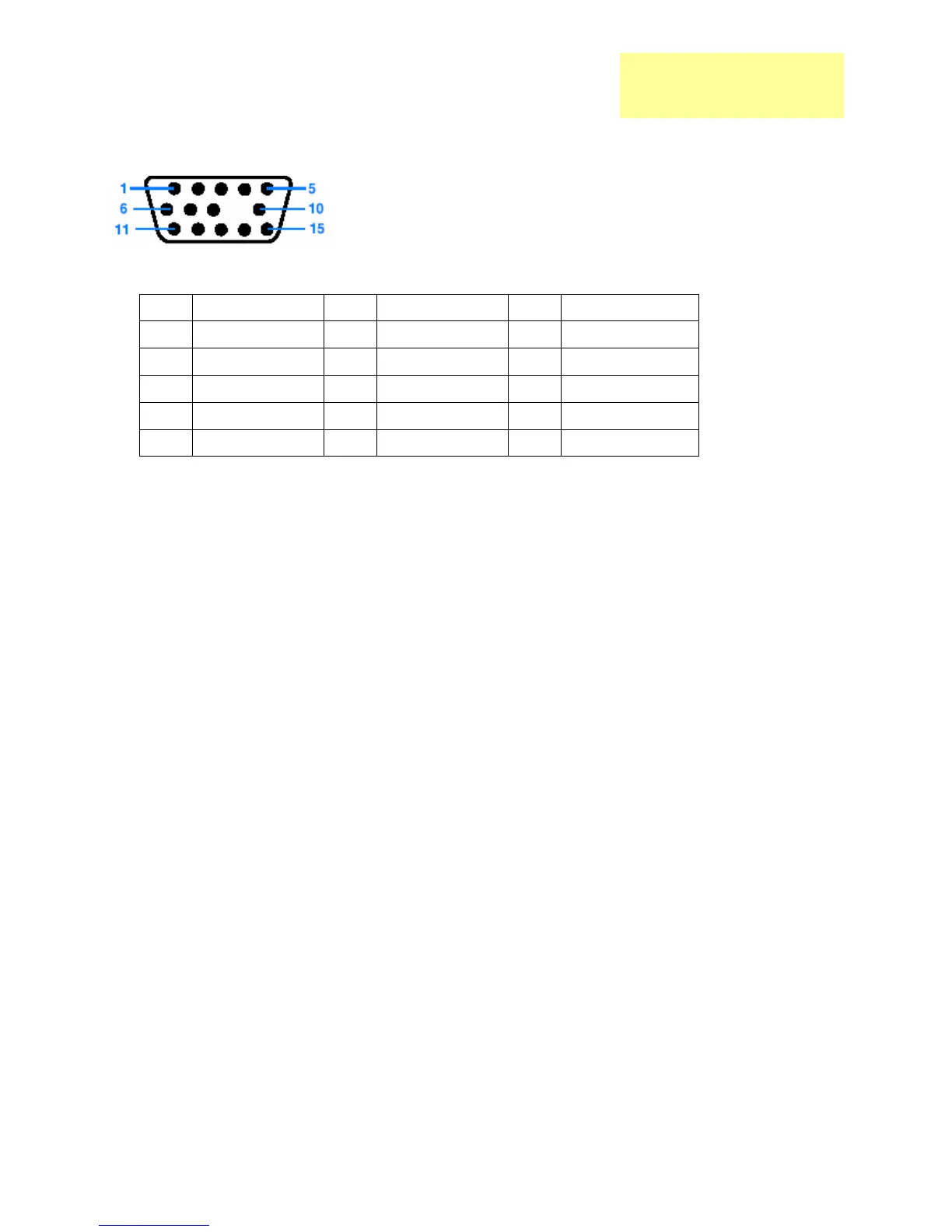

VGA Connector (D-Sub 15pin) Pin Assignments
Pin Symbol Pin Symbol Pin Symbol
1 Red 6 Red_GND 11 N.C.
2 Green 7 Green_GND 12 DDC_SDA
3 Blue 8 Blue_GND 13 HSYNC
4 N.C. 9 PC+5V 14 VSYNC
5 GND 10 N.C. 15 DDC_SCL
Chapter 5
