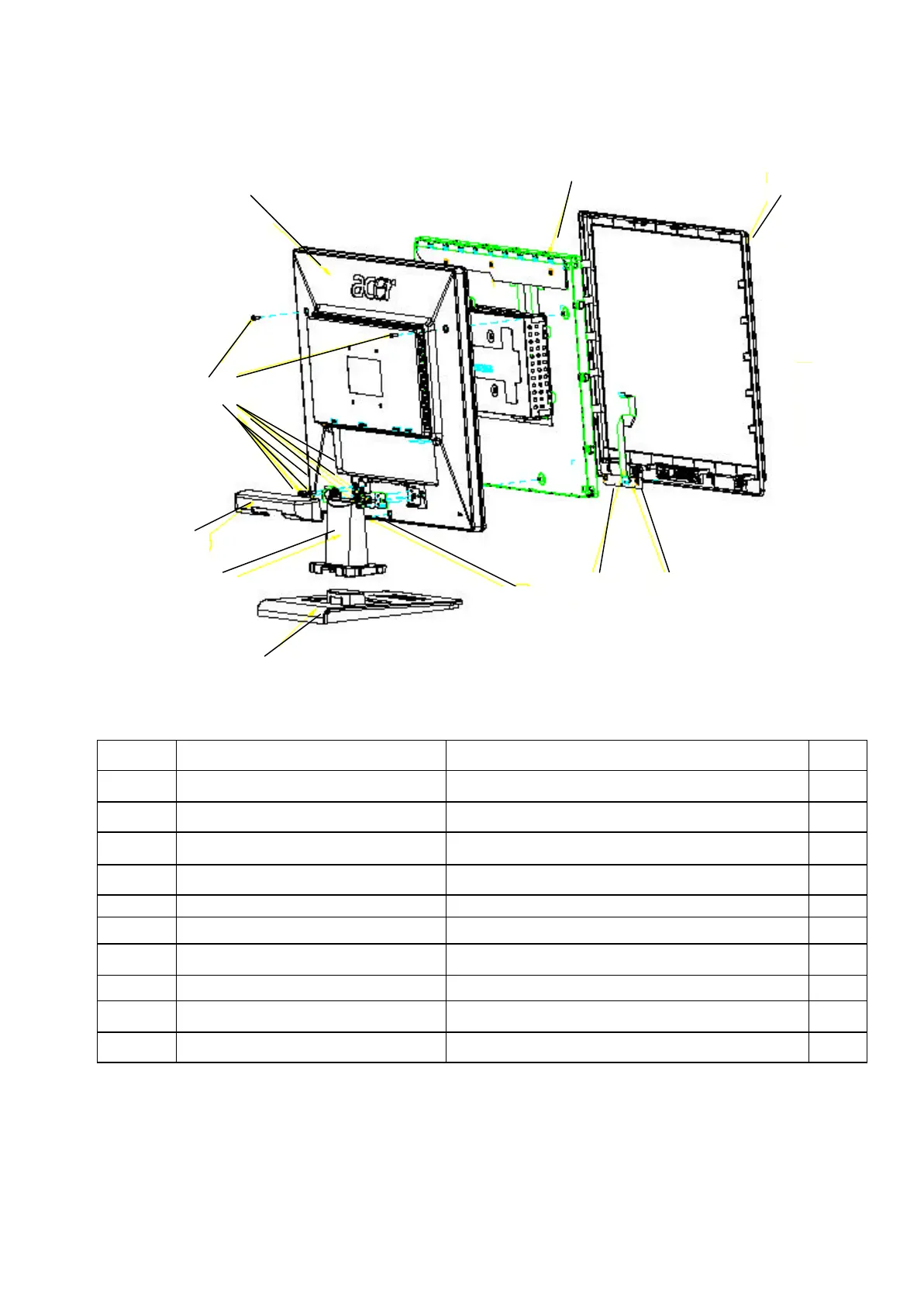

Acer AL2017 - Explosion Diagram

36
The Table of Explosion Diagram
Item
S/N
Parts Name
Q’ty
1
DK1PFT0002 D-Sub+Audio 1
2
40-D006354 Bezel Assy_A201P1_Sliver 1
3
40-D007564 Rear Assy,A201P1-H01 1
4
32-D006376 FFC-OSD-A201P1-H01 1
5
35
-
D003068
PCBA
-
OSD
-
A190A2
-
H02
1
6
42A9930017
Screw,
3*1.27*8
P
ϕ
1
7
40-D006340 Stand Assy,A201P1-H01 1
8 40-D006345 Seat Assy,A201P1-H01 1
9
42A9930029 Screw M3*P0.5*8 10
10
40-D006346 Cover Hinge 1
2
1
3
4 5
6
7
8
9
10
