Chapter 5
Connector Information

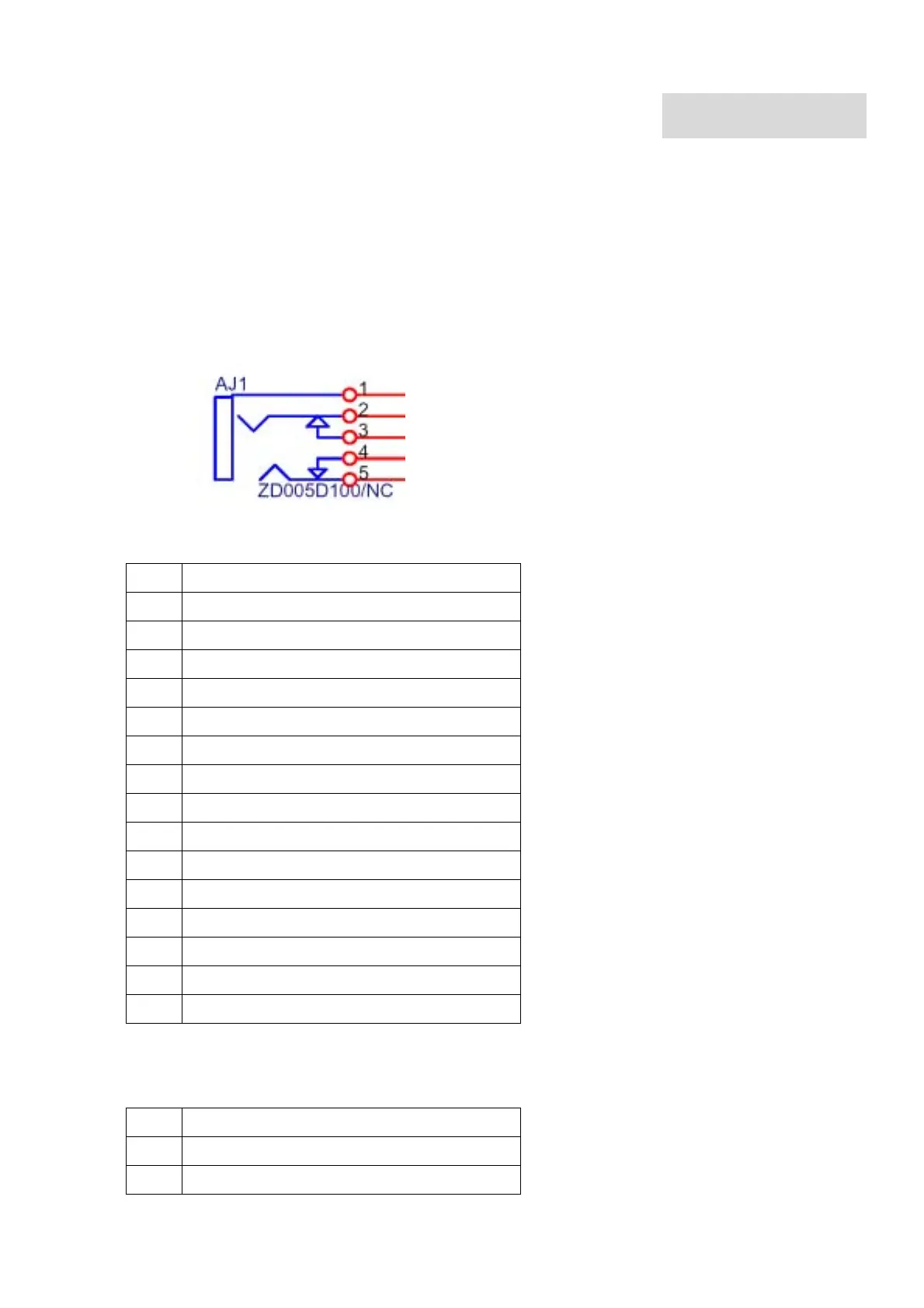

Phone jack stereo
PIN1. AC power cord: CEE22 typed connector
PIN2. Audio cable
PIN3. Audio: Line-in receptacle
15 pin mini D-Sub connector
PIN Signal
1 Red
2 Green
3 Blue
4 No Pin
5 Ground
6 Ground Red
7 Ground Green
8 Ground Blue
9 +5 V for DDC
10 Ground
11 Ground
12 SDA (DDC Data)
13 H – Sync
14 V – Sync
15 SCL (DDC Clock)
DVI-D connector (optional)
PIN Signal
1 TMDS data2-
2 TMDS data2+
