Service and Maintenance 5-43
Battery Removal
Prerequisite:
Speaker Removal on page 5-19
Microphone Removal on page 5-21
Mainboard Removal on page 5-25
WLAN Antenna Removal on page 5-33
GPS Antenna Removal on page 5-37

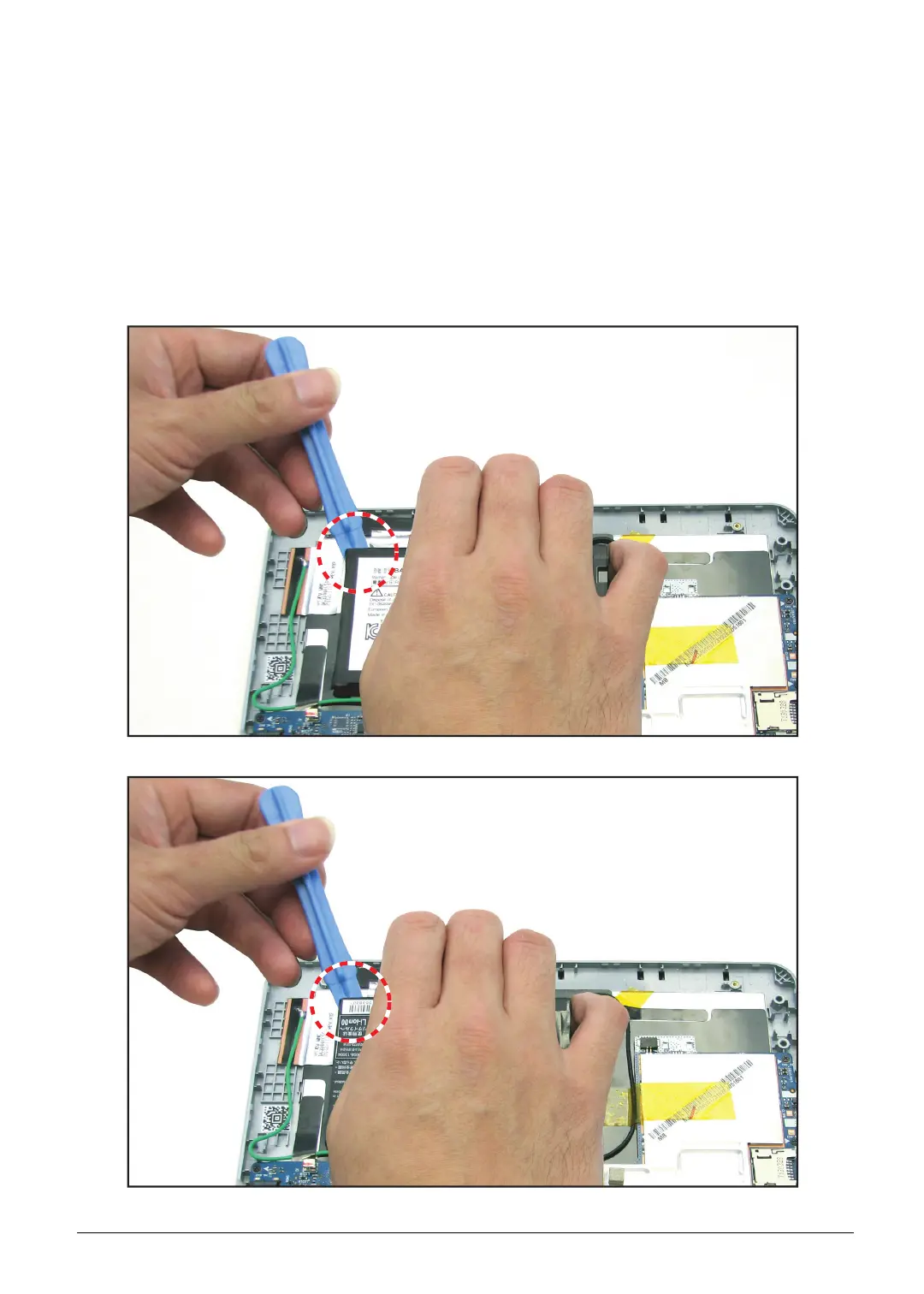

1. Pry on the upper corner to create an opening.
Figure 5-65. Removing the LG Battery (1 of 2)
Figure 5-66. Removing the Sanyo Battery (1 of 2)
To Next Page
