Disassembly Procedures 1-7
3. Starting from the upper side, carefully lift the lower case to continue releasing the remaining
latches.

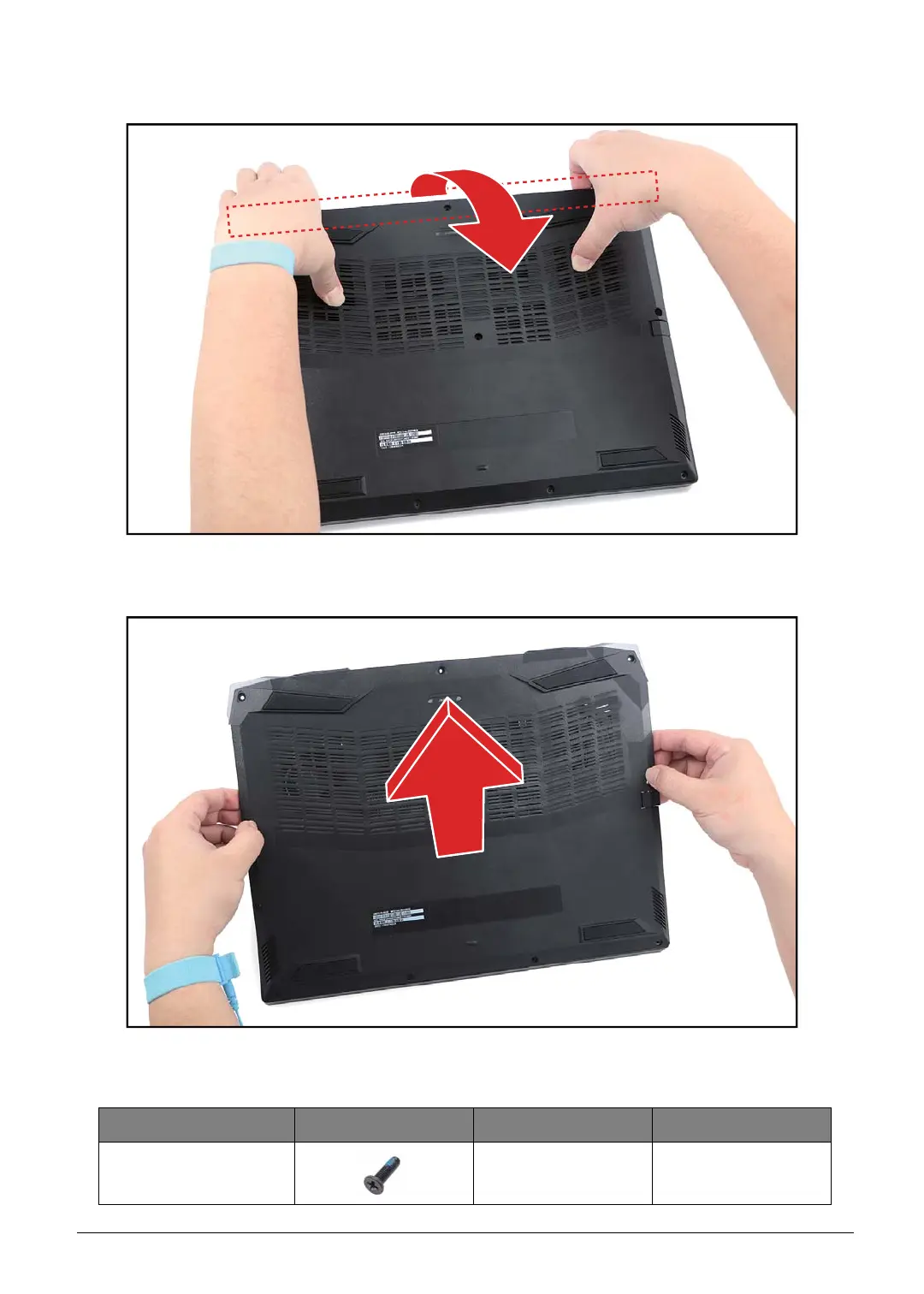

Figure 1-4. Releasing the Lower Case (2 of 2)
4. Remove the lower case.
Figure 1-5. Removing the Lower Case
Table 1-1. Lower Case Screws
Screw Name Screw Type Torque Quantity
M 2.5 x 8.0 2.65~3.0kgf.cm 11
