Exploded Diagrams 1-51
Exploded Diagrams

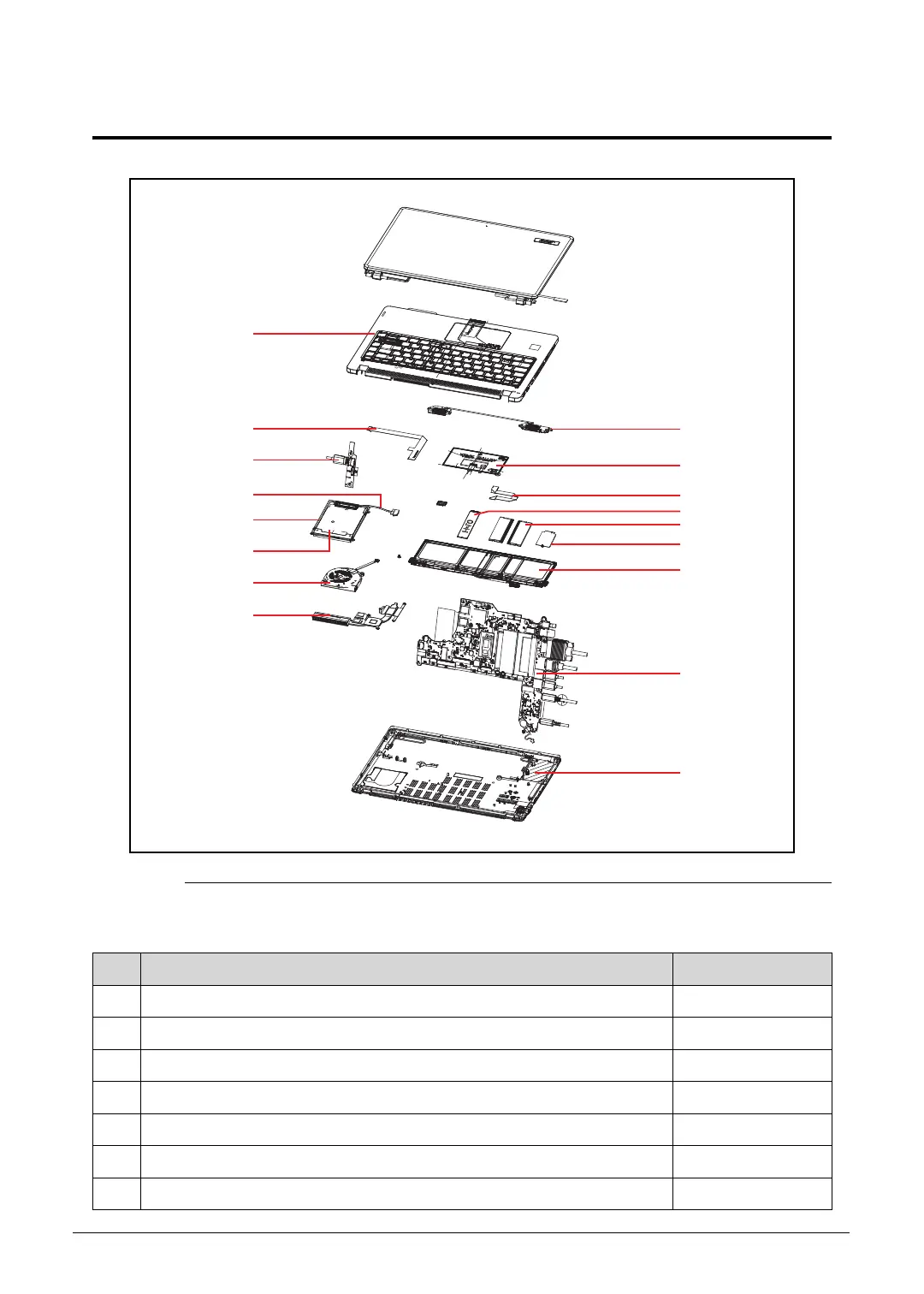

Figure 1-68. System Exploded Diagram
Table 1-2. System Exploded Diagram
No. Description Acer Part No.
1 Top Assembly 6B.VLJN7.001
2 USB Board FFC 50.VLEN7.004
3 USB Board 55.VMNN7.001
4 HDD Cable 50.VLEN7.001
5 HDD Bracket 33.VMNN7.001
6 HDD Module KH.50004.015
7 Speakers 23.VMLN7.001
7
8
9
12
11
10
16
13
17
1
3
14
15
5
6
4
2
