Exploded Diagrams 1-53

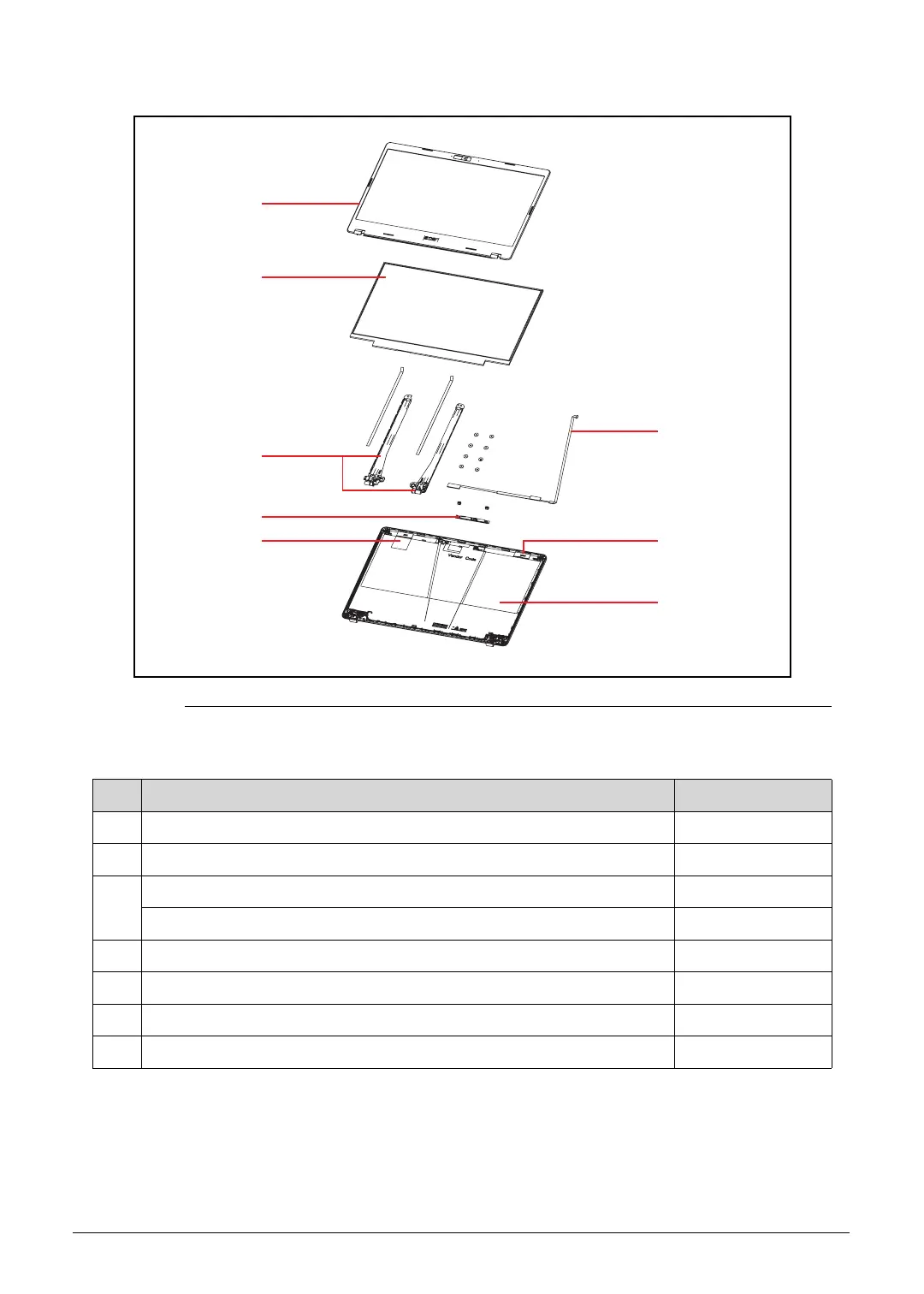

Figure 1-69. LCD Assembly Exploded Diagram
Table 1-3. LCD Assembly Exploded Diagram
No. Description Acer Part No.
1 LCD Bezel 60.VLWN7.003
2 LCD Panel KL.1400D.025
3 LCD Hinge L 33.VLWN7.001
LCD Hinge R 33.VLWN7.002
4 eDP Cable 50.VLWN7.005
5 Camera Module KS.0HD0Q.004
6 WLAN Antenna (MAIN+AUX) 50.VLWN7.001
7 LCD Cover 60.VLWN7.002
1
4
6
7
2
3
6
5
