3.1.5 Updating the base board micro-controller
3.1.6 Cable Connections

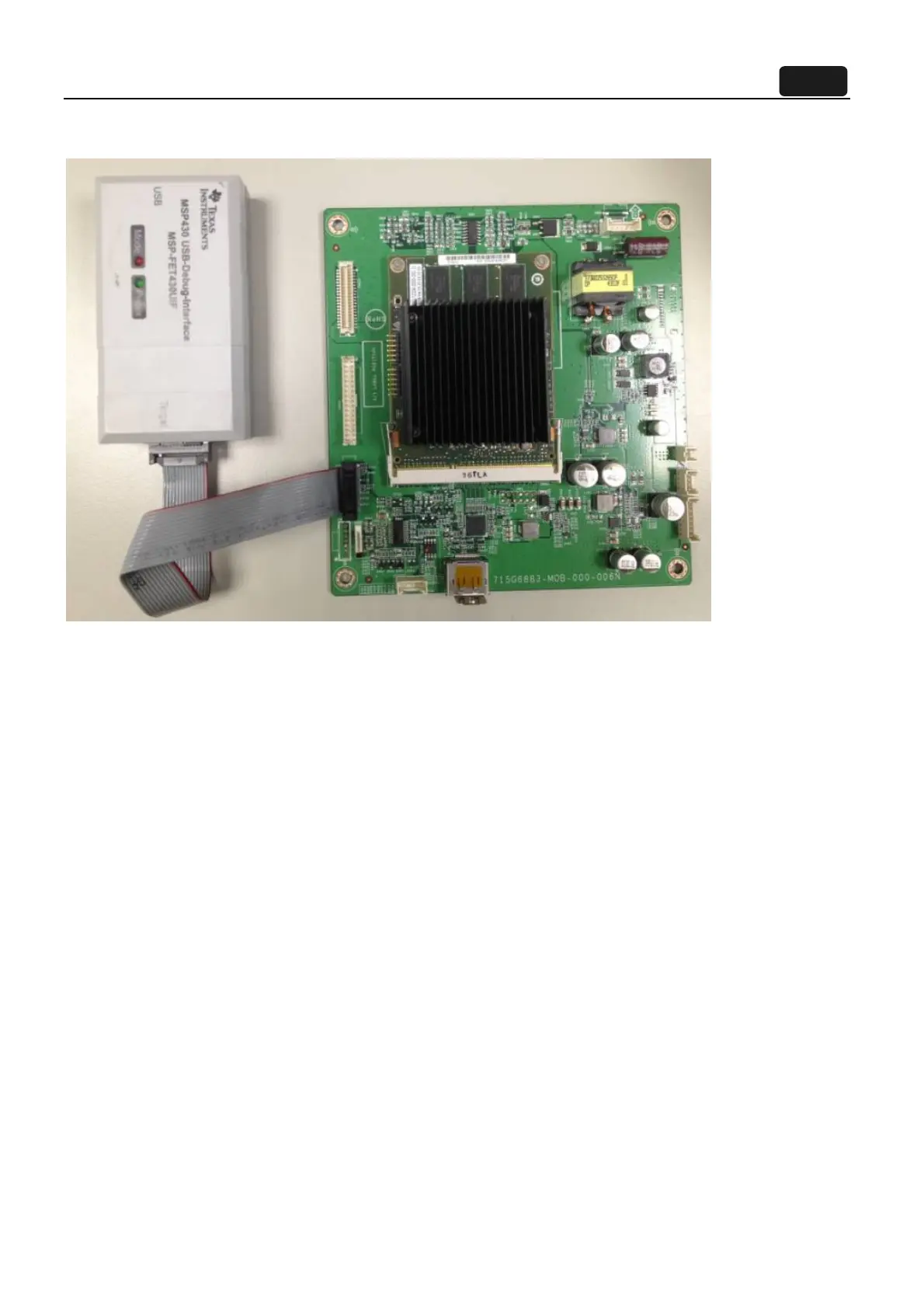

Connect the cable that came with the TI MSP-FET430UIF in the way indicated in the picture above. Make sure that
pin1 of the ribbon cable header that connects to the base board. Connect the USB cable connected to the
MSP-FET430UIF to the computer that has the FET-Pro430 Lite software installed. At this time Windows should
have a popup that says “Installing New Device Driver Software”,which should finish without any issues and install
the USB driver for the MSP-FET430UIF.
3.1.7 Starting the Software and Flashing the New Code
Double click the shortcut to the “Lite FET-Pro430 Elprotronic” icon created on the desktop earlier when installing
the software. This should bring up the following window:
