17
4. Assembly and Disassembly Procedures

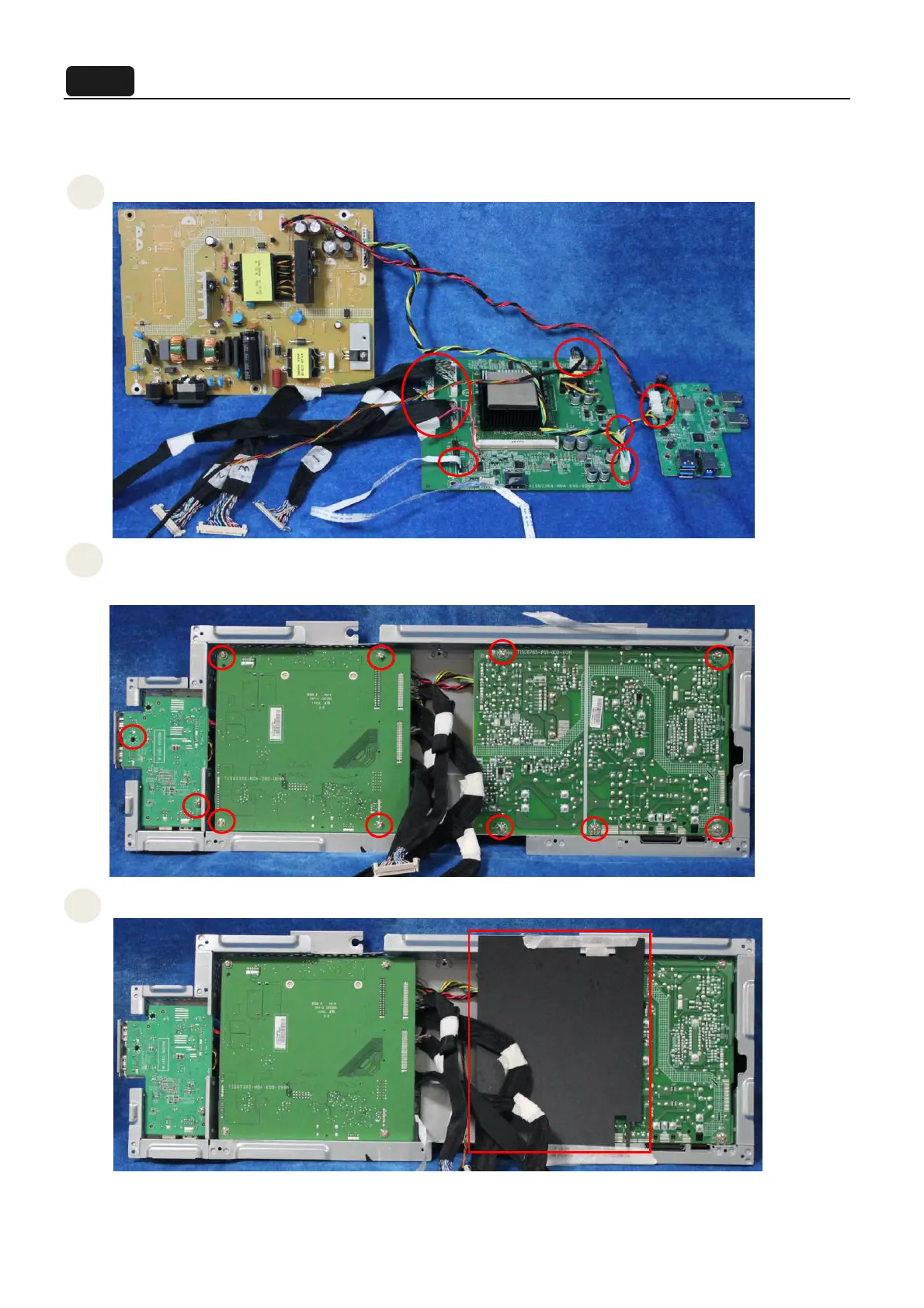

4.1 Assembly Procedures:
Prepare a main board, a power board and a USB board. Connect the boards.
Prepare a main frame and some screws.
Use a Philips-head screwdriver to
tighten the screws till the
boards with shield are firmly attached.
Prepare a MYLAR, assemble it onto the power board
.
S1
S3
S2
To Next Page
