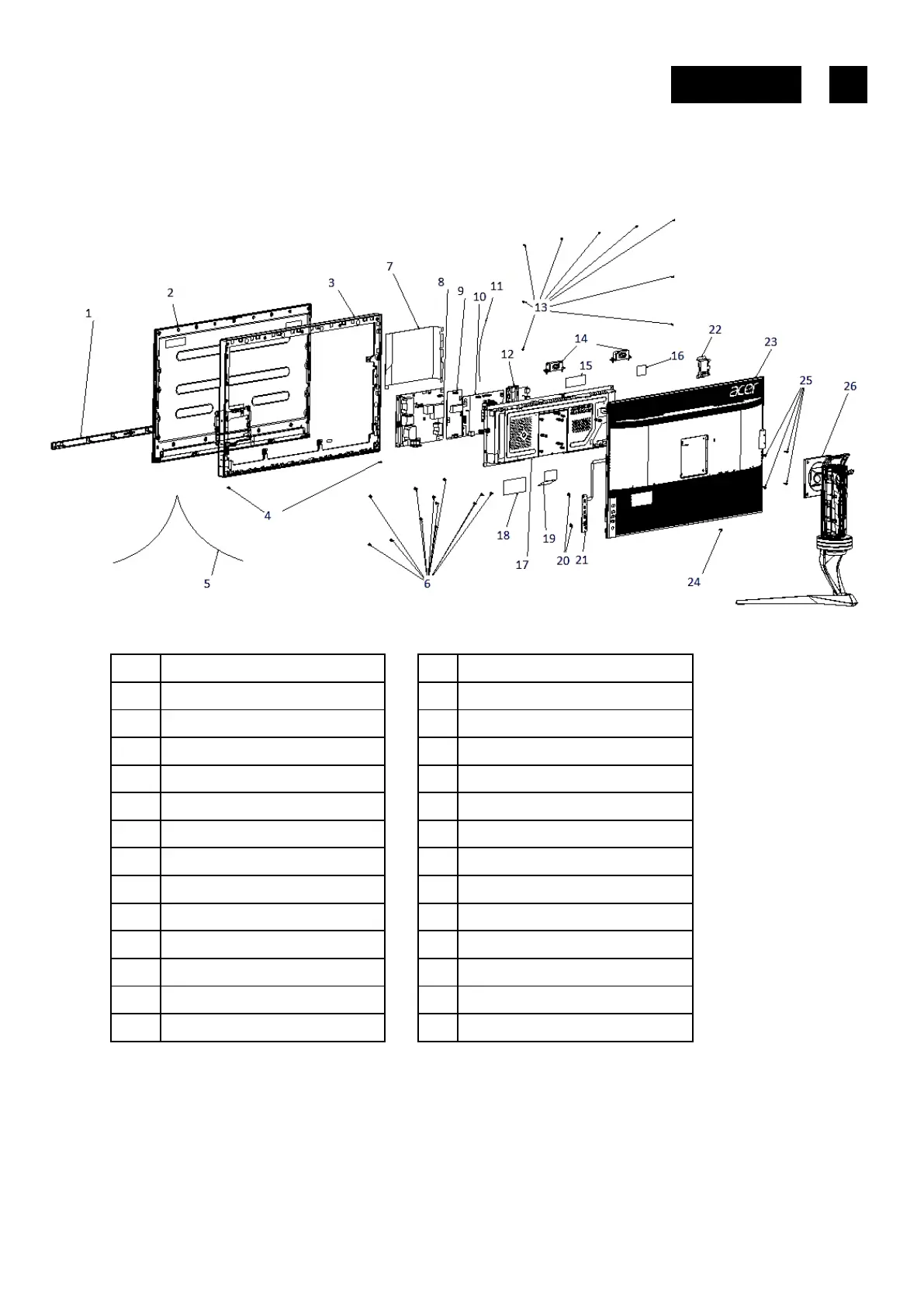

1. Exploded Diagram
1.1 Product Exploded Diagram
Item
ODM DESCRIPTION
Item
ODM DESCRIPTION
1
ASSY BZL
14
SPK
2
LCDM
15
TAPE
3
MID-FRAME
16
TAPE
4
SCRW
17
ASSY SHD
5
WIRE
18
TAPE
6
SCRW
19
MYLAR
7
MYLAR
20
SCRW
8
PCBA SPS BD
21
PCBA CTRL BD
9
PCBA LED DRIVER BD
22
ASSY USB SHD
10
PCBA IF BD
23
ASSY RC
11
WIRE
24
SCRW
12
PCBA USB BD
25
SCRW
13
SCRW
26
ASSY STAND
