Acer Z2 - Page 23

Acer
SERVICE GUIDE
Page : 23/49
Language :English
Date : 2013-01-18
页码 23/52

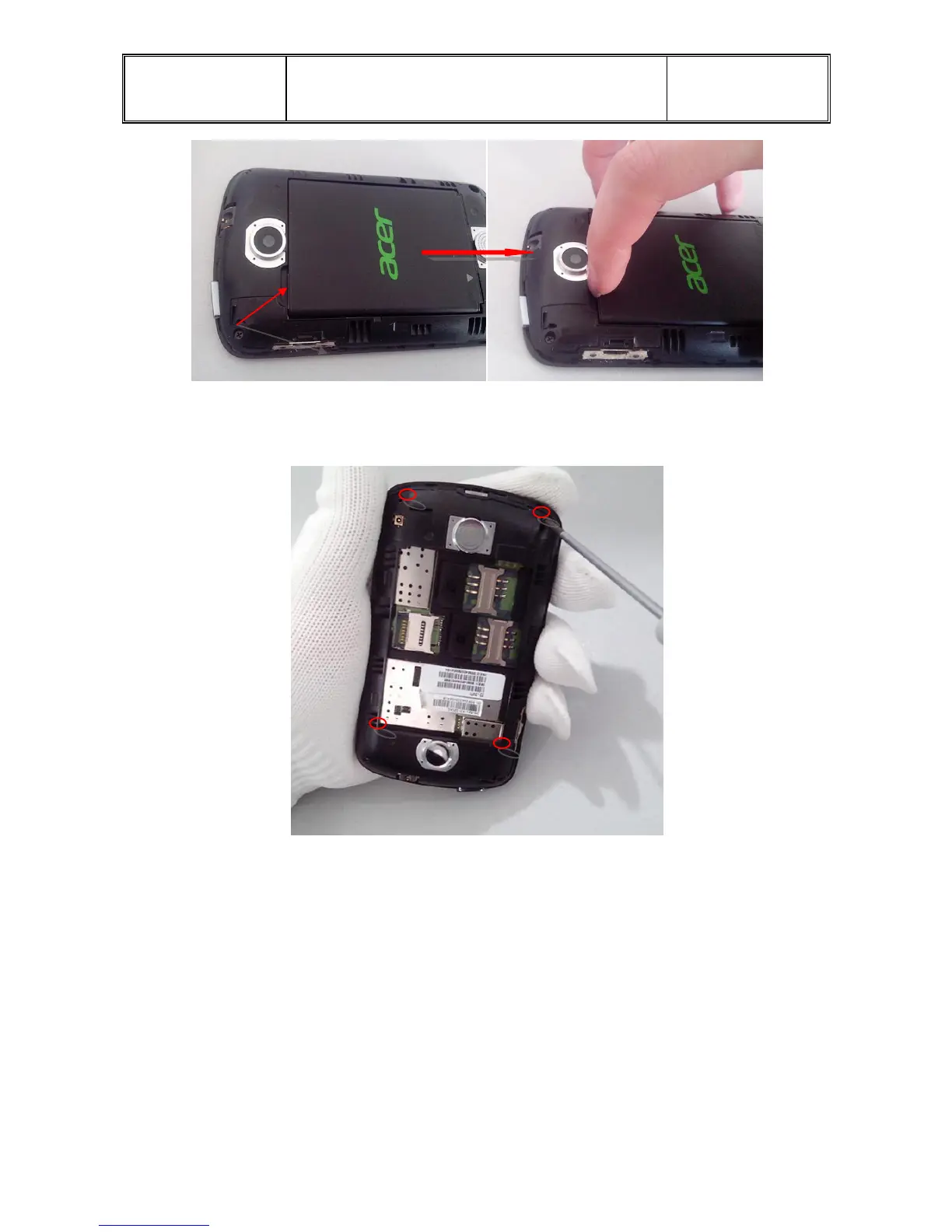

三、 Disassemble the bottom cover
（1.） Using the cross screwdriver disassemble the four screws of picture marked
（2.）first using tweezer to prize up the snap joints, then using plastic bar to insert the
gap between top cover, like the picture below after taking bottom cover away,
