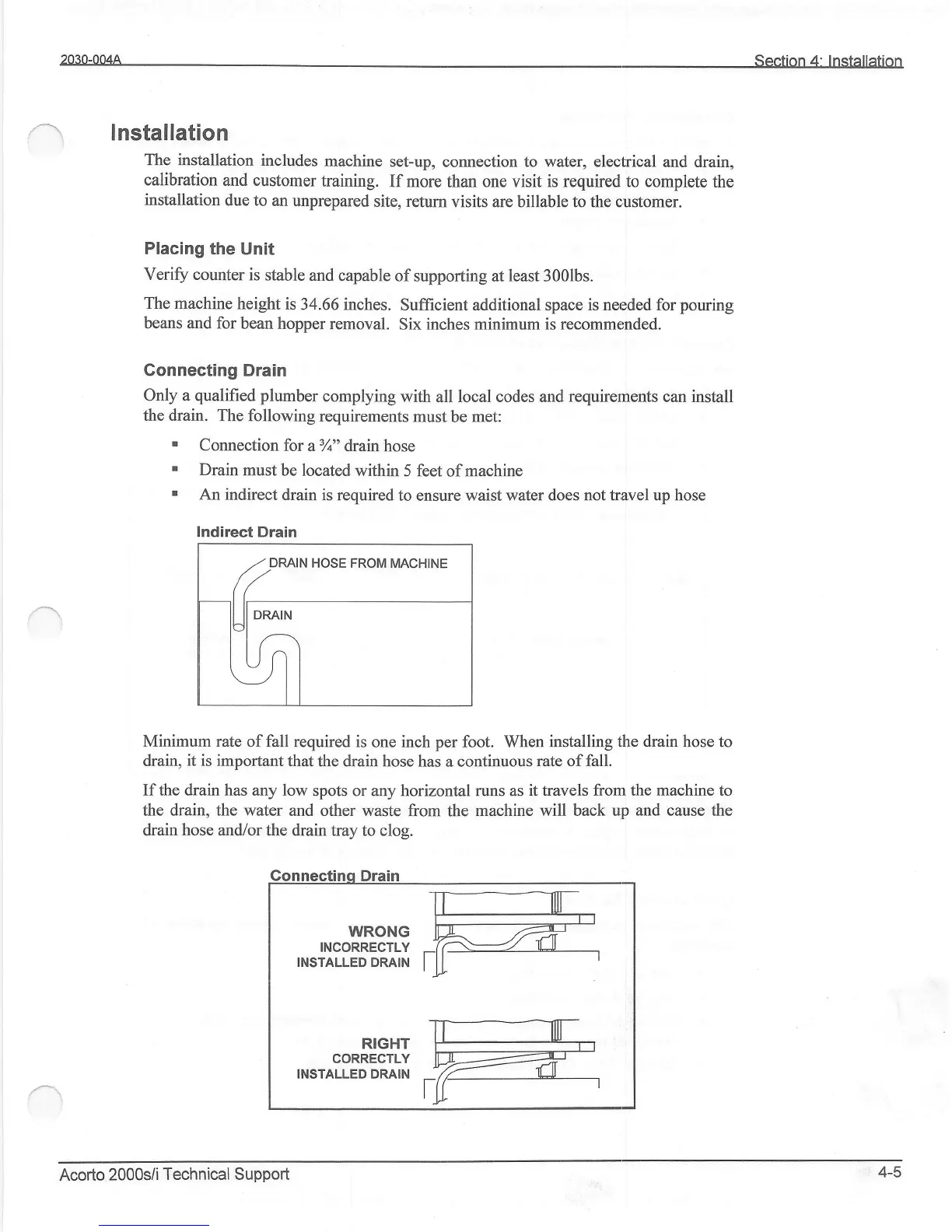

4: lnstallation
Installation
The installation
includes
machine
set-up,
connection
to water,
electrical and drain,
calibration
and customer
haining.
If more
than
one visit is required to complete
the
installation
due to
an
unprepared
site, return
visits are billable to the customer.
Placing
the Unit
Verifu counter
is stable
and
capable of
supporting at least 300lbs.
The machine
height
is
34.66 inches.
Sufficient
additional
space is needed for pouring
beans and for
bean hopper
removal.
Six inches minimum is recommended.
Gonnecting
Drain
Only a
qualified
plumber
complying
with
all
local codes and
requirements
can install
the
drain.
The following
requirements
must
be
met:
.
Connection
for
a3/t" drainhose
.
Drain
must
be located within
5 feet
of
machine
.
An
indirect drain
is required
to ensure waist water
does not travel up hose
Minimum rate
of
fall
required is one
inch
per
foot. When
installing
the drain
hose to
drain,
it is
important that
the drain hose
has a continuous
rate
of fall.
If the
drain
has any low
spots or any horizontal runs as
it travels from the machine to
the
drain, the water
and other waste
from the machine
will back up
and
cause the
drain
hose
and/or the drain tray
to clog.
WRONG
INCORRECTLY
INSTALLED
DRAIN
RIGHT
CORRECTLY
INSTALLED DRAIN
lndirect Drain
DRAIN
HOSE FROM MACHINE
