B: Milk System
Milk Valve Assembly
Operating
Voltage:
12VDC
The milk valve assemblv
mixes
steam,
milk
and
air to
produce '"steamed
milk" and
"foamed
milk."
During a Latte
Drink
Pour,
(DSteam
is
introduced into the back of
the assernbly
via
tlre
latte valve on the
steam
tank.
OThe Milk Valve
plunger
is
activatecL.
which
opens
the orifice to the
milk
pick-up
hose.
The rushing steam and the
internal shape
of milk valve.
gdraws
milk
into the
valve.
@The introduction of air
from the air
vent combines
with the
milk
and
steam
to mix and 9dispense a nice.
hc,t frothy
steamed
milk.

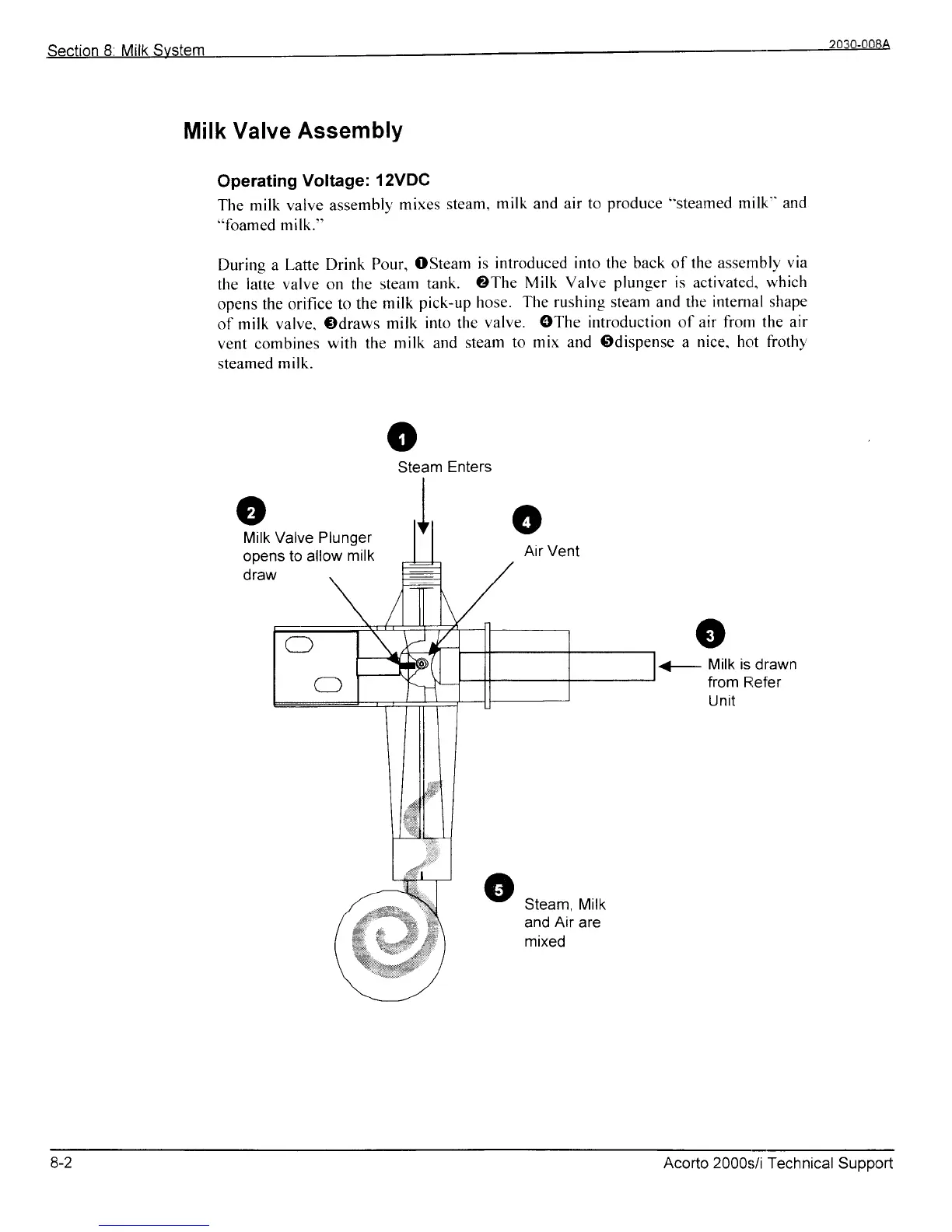

m Enters
o
Air
o
Stea
I
t*
o
MiIK V
opens
oraw
alve
Plunger
to allow
milk
Vent
Steam, Milk
and Air are
mixed
Milk is
drawn
from Rleter
Unit
+-
