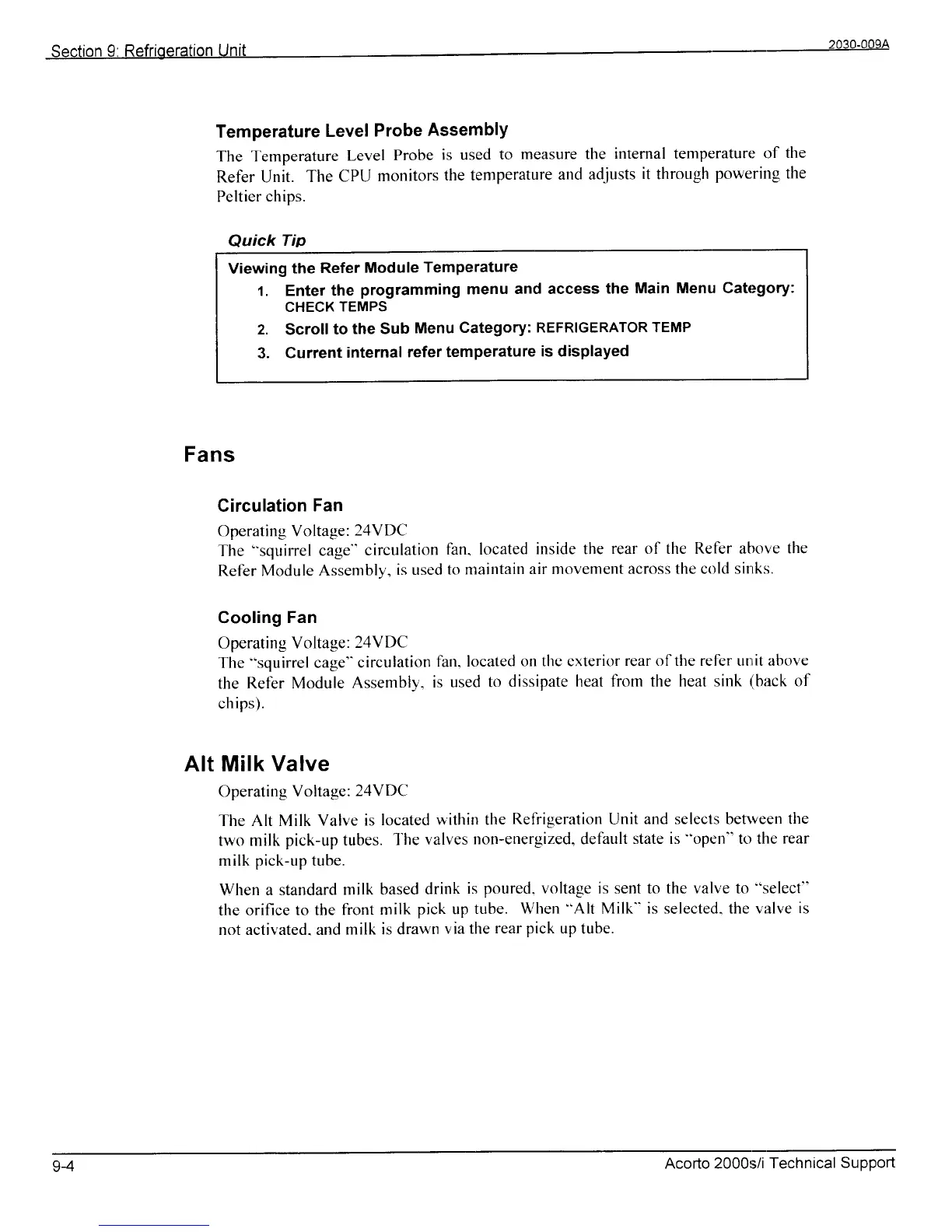

Temperature
Level
Probe
AssemblY
The T'emperature
Level
Probe
is used
to
measure the
internal temperature
of
the
Refer Unit.
The
CPU
monitors
the temperature
and adjusts
it
through
powering the
Peltier
chips.
Quick
Tip
Viewing
the
Refer
Module
Temperature
1. Enter the
programming menu
and access
the
Main Menu Gategory:
CHECK
TEMPS
2.
Scroll
to
the Sub
Menu
Gategory:
REFRIGERATOR
TEMP
3.
Current
internal
refer temperature
is displayed
Fans
Circulation
Fan
Operating
Voltage:
24VDC
The
"squirrel
cage"
circulation
fan. located
inside the
rear of the Refer above
the
Ref-er Module
Assemblv.
is used
to maintain
air movement
across the cold sinks.
Gooling
Fan
Operating
Voltage:
24VDC
The
"squirrel
cage"
circulation
fan.
located
on thc cxterior
rear of the refer unrit above
the Refer
Module
Assembly,
is
used to
dissipate
heal from the heat sink
tiback
of
chips).
Alt Milk
Valve
C)perating
Voltage:
24VDC
The Alt Milk Valve
is
located
within the
Refrigeration
Unit
and selecls betrveen the
two milk
pick-up tubes.
l'he
valves
non-energized, default
state is
"open"
to the
rear
milk
pick-up
tube.
When a standard
milk based
drink
is
poured. voltage is sent to the valve to
"select"
the orifice
to the front
milk
pick
up
tube. When
"Alt
Milk" is selected. the valve
is
not activated. and
milk is drawn
via the
rear
pick
up tube.
