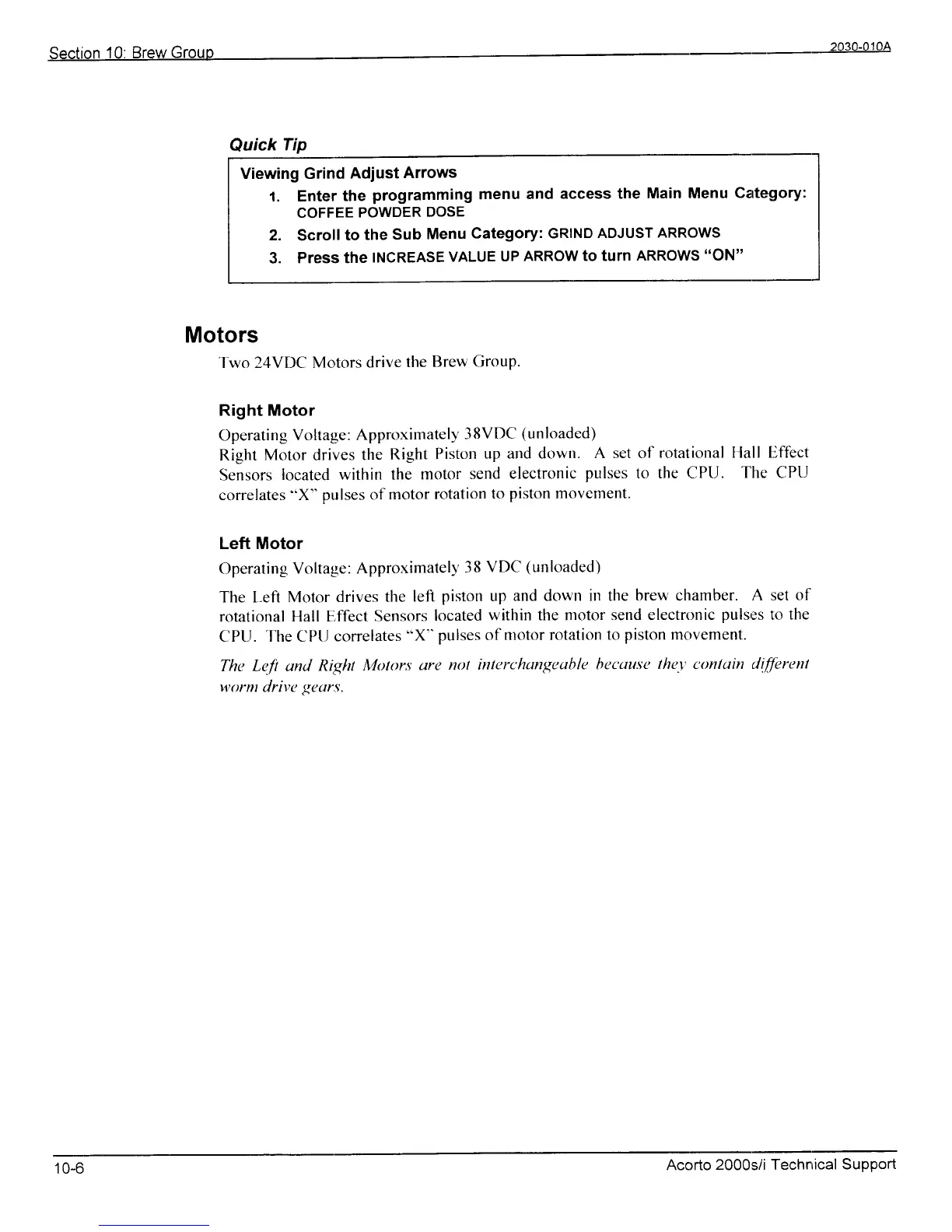

Quick
Tip
Viewing Grind
Adjust
Arrows
1. Enter
the
programming menu
and
access the
Main Menu
Cattegory:
COFFEE
POWDER
DOSE
2.
Scroll
to
the Sub
Menu
Category:
GRIND
ADJUST
ARRowS
3.
PrESS thE
INCREASE
VALUE
UP ARROW
tO tUTN
ARROWS
..ON''
Motors
Two 24VDC Motors
drive
the
Brew
Group.
Right
Motor
Operating
Voltage:
Approximately
38VDC
(unloaded)
Right
Motor
dri,ves
the
Right
Piston
up and down.
A set
of rotational l-lall llffect
Sensors
located within
the
motor
send
electronic
pulses
to the CPLJ.
The CPU
correlates
"X" pulses of
motor
rotation
to
piston
movclnent.
Left Motor
Operating Voltage:
Approximately
38
VDC
(unloaded)
The l-eft Motor
drives
the
lefl
piston
up
and down in the
brew
chamber.
A set
of
rotational Hall F,ffect
Sensors
located
within the motor send
electronic
pulsr;s
to
the
CPU. The CPIJ
correlates
"X"
pulses of
ntotor rotation to
piston movement.
The Le./i and
Ri,ght
Motors
ure not
inlcrchungcable
bec'uuse
lhe.y'
conluin
diflbrent
wrtrnt drit,e
gears.
10-6
Acorto 2000s/i
Technrical
Support
