not to pinch any
of
the wires under the plastic. When properly assembled. the wire groups should
ALL
fit under the U-shaped flap on the insulator plate.
5.
Now the woofer
box
is to
be
placed into the opening on the back of the speaker. (The box is rather
heavy
and you may wish to have an assistant help you lift the assembly into place.) Carefully
lift
the
boxupofftheframeand placeitsquarely intotheopening atthe bottomof the speakers frame.
Be
sure not to pinch any wires from the three wire groups as the
box
is
set into place.
(Be
careful Where
you grasp the
box
when lifting it. i.e. don't put
your
hand through the woofer
on
the
bottom
of the
6.
Select the two short(1/2") screws from the hardware kit. Using aflat bladescrewdriver, install these two
screws through the two
metal straps atthe topof the box and into thetwothreaded holeson the top
of the box.
NOTE:
If
the holesdo not line up, the metal strap can be easily moved to align with the hole. Simply
tap the strap with the screwdriver in the direction
necessary
to align with woofer
box
hole. Tighten
screws securely.
7.

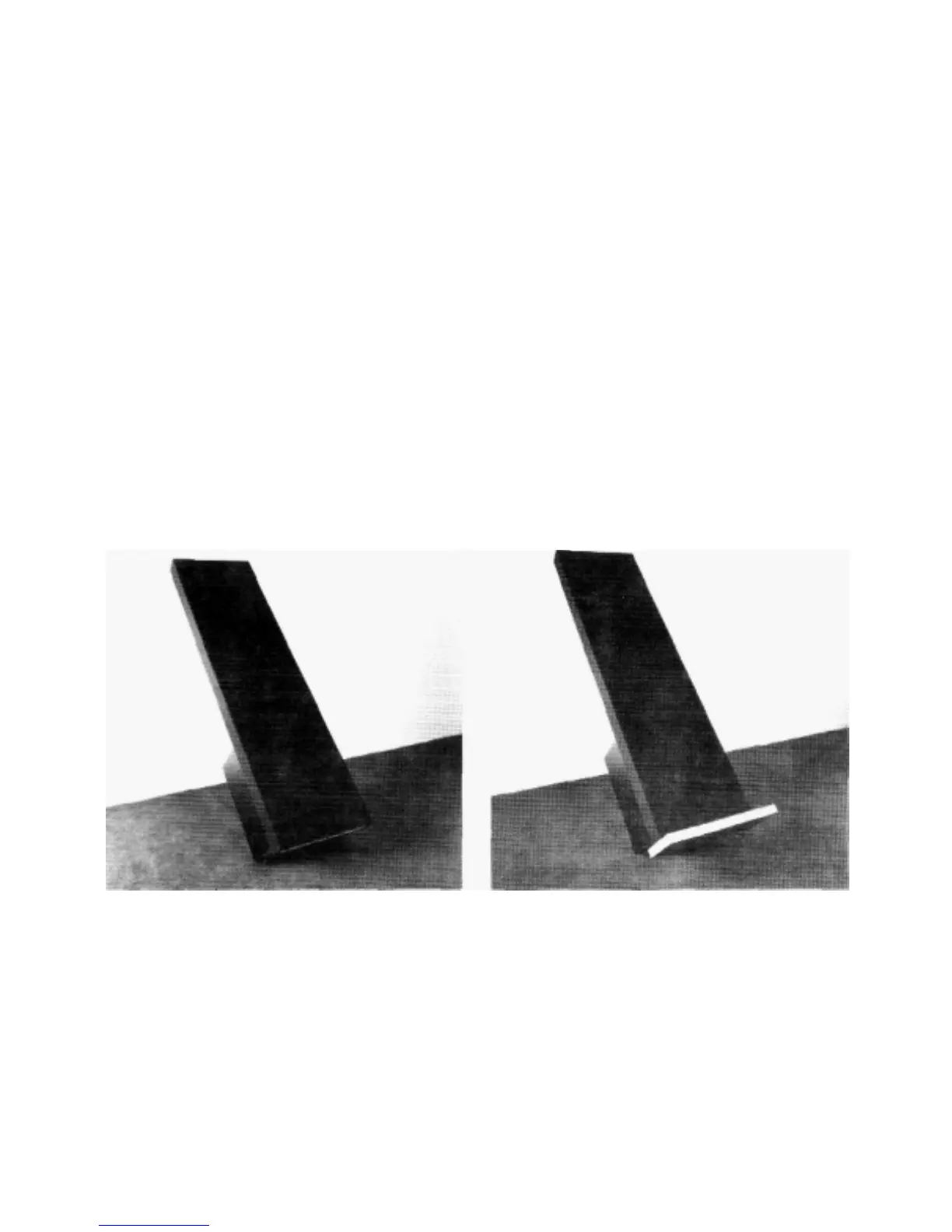

Carefully grasp the topof thesystemandstand theentireassembly upright.
At
thispoint, thesystem
Will
stand, leaning on the lower/back edge
of
the woofer box. Now, CAREFULLY lean entire assembly
back
until the top of the speaker rests on therearwalland
the back/bottom edge of the woofer box
rests on the floor.This will expose the three holeson the bottomof thespeakerframe. where the base
is
to
be
installed. Select the three long
(2 1/2')
screws and three small washers from the hardware kit.
Select one
of
the bases from the base box.
box!!)
8.
lnstall a small flat washer on each
long screw.
Insert one of these assemblies through
the bottom right
hole on the base (the hole on the side of the base with the Acoustat
nameplate), Align this screw with
the right
-
most hole on the bottom
of
the speaker's frame. Using a flat blade screwdriver, screw
LOOSELY intoframe. Select another screw/washer assembly and lift
leftsideof base until
hole
in
base
aligns with
left
hole
in
the speakers frame, insert screw/washer assembly and screw
LOOSELY
into
frame. Select
last screw/washer assembly and
install in center base/frame holesas before Once the
three screw/washer assemblies have been screwed loosely into theframe. align the rear edge of
the
base
with the
rear
edge of the speakers bottom and tighten
all
three screws
VERY
SECURELY.
WARNING
Thecasterwill not supporttheentireweightof thefinished
speaker system.The casters are
not designed to
be
used like
a
"
dolly
"
for moving the assembled system but rather are intended to
guide the assembled speaker
as
it
is
"
shuffled
"
across the floor.
