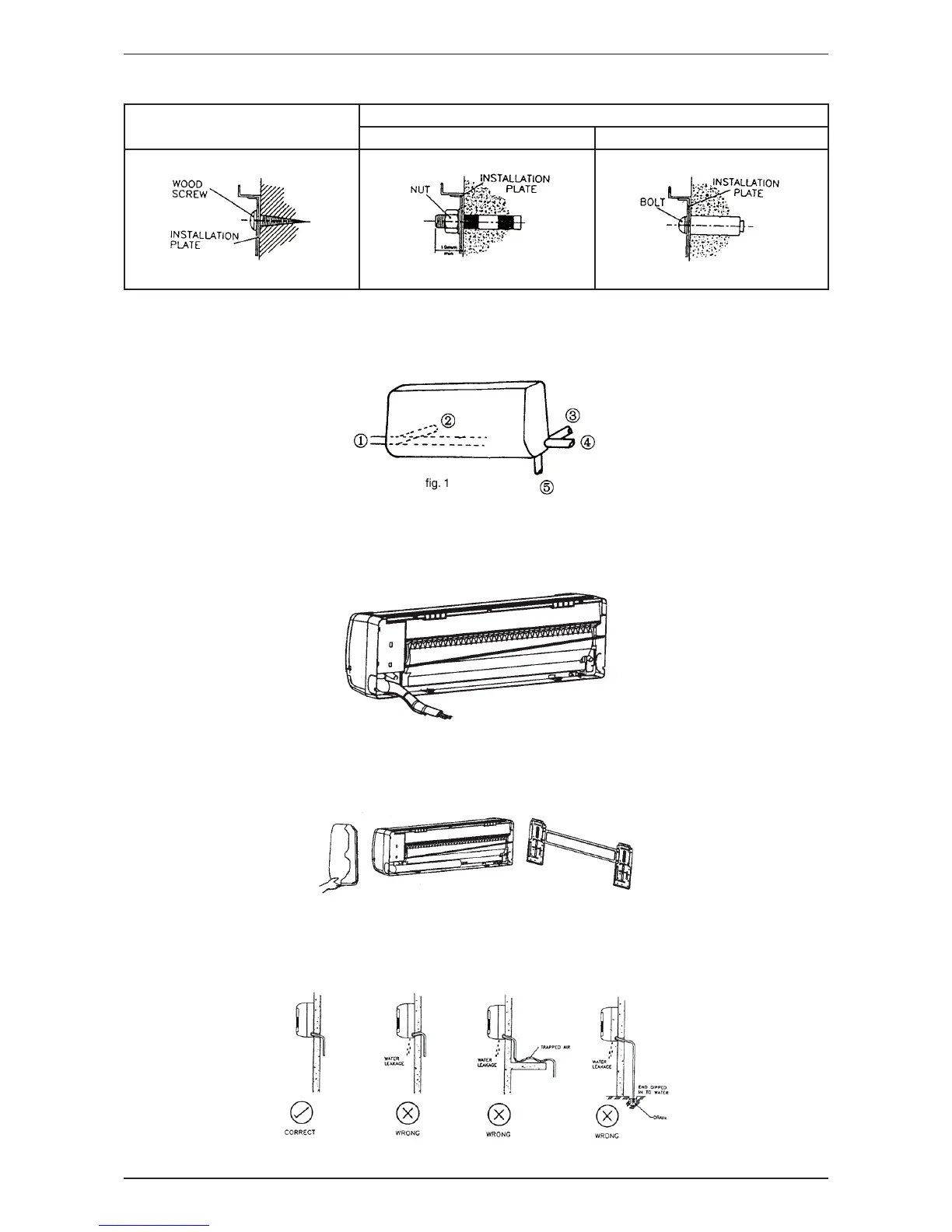

Fixing method:-
WOODENFRAME WALL
REINFORCED CONCRETE BUILDING
NUT ANCHOR BOLT ANCHOR
Indoor Unit Preparation
The refrigerant piping can be routed to the unit in 5direction, by using the cut outs in the unit casing.
(See fi g. 1)
Carefully bend the pipes to the required position toalign with the hole. For right hand and rear side
drawout, hold the bottom of the piping and fi x directionbefore shaping it to the desired position
(See fi g. 2).The condensation drain hose should be taped to thepipes with vinyl tape. The electrical cable
can also betaped to the pipes.
Mounting Indoor Unit
Hook the indoor unit onto the upper portion of installation plate. (Engage the 2 hooks of rear top of the indoor
unit withthe upper edge of the installation plate). Ensure the hooks are properly seated on the installation plate
by moving inleft and right.
Water Drainage Piping
The indoor drain pipe must be downward gradient for smooth drainage. Avoid situation as shown in fi gure
below.
•
•
•
