140

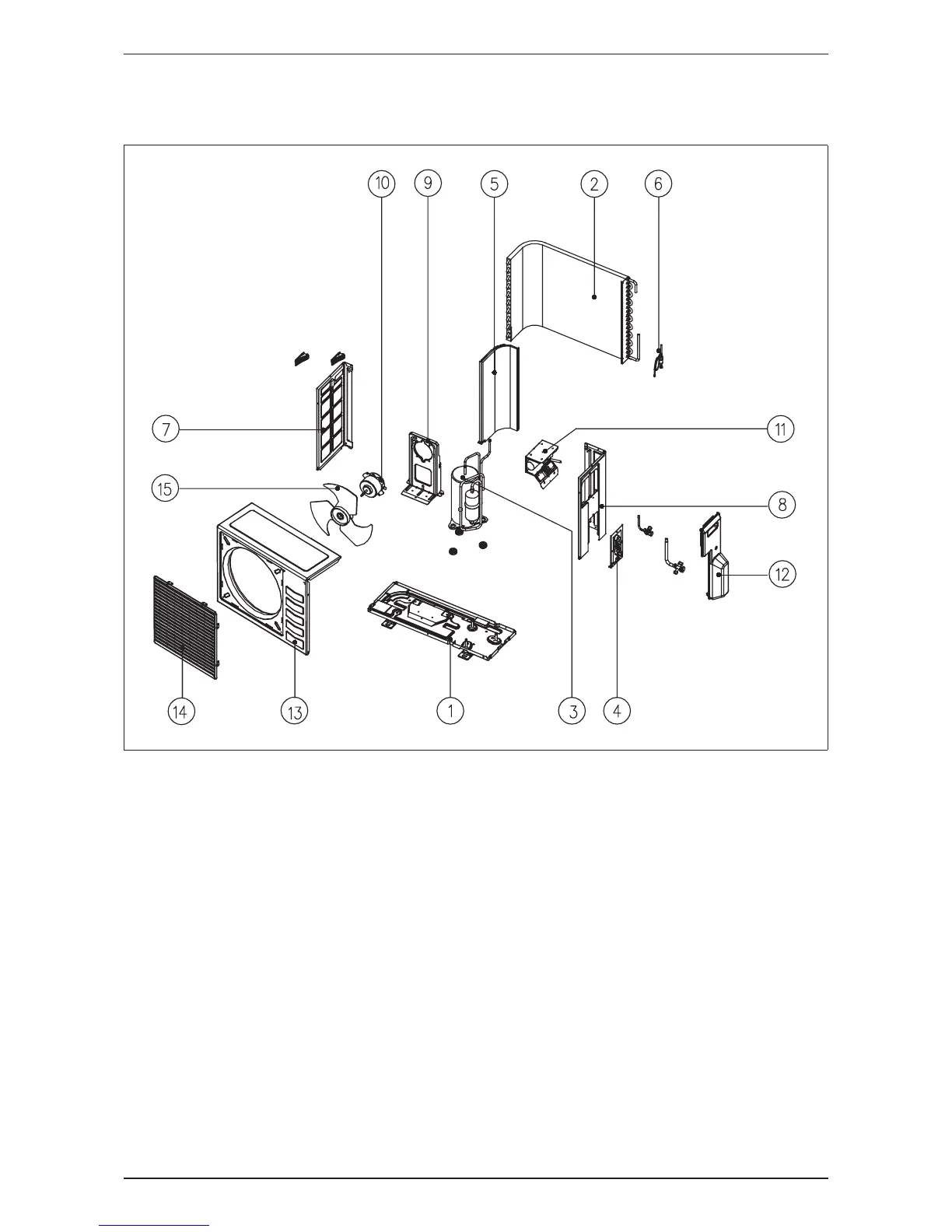

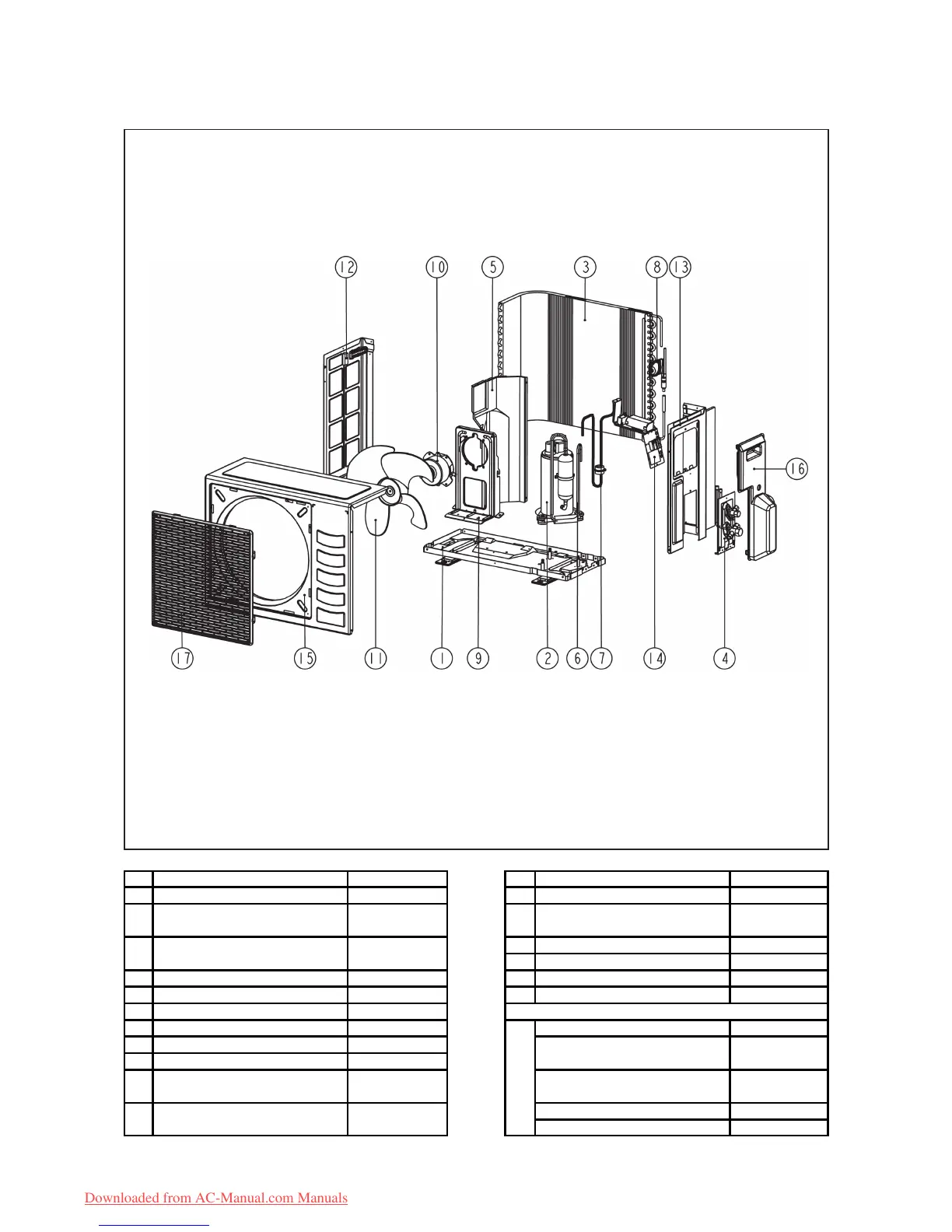

Model : ALC 07C
No Descriptions Part No No Descriptions Part No
1 ASSY,PAN BASE SL07C R50014057372 12 PANEL,LEFT R01014052510
14 ASSY,CONTROL PANEL SL07C R50044092695
15 PANEL,TOP/FRONT R01014052512
4 VALVE,BRACKET R01014051164 16 ASSY,VALVE COVER R50124055172
5 ASSY, PARTITION SL07C/09C(R) R50064084355 17 ASSY,FRONT GRILLE R50124056905
6 ASSY SUCTION TUBE R50024091725
7 ASSY DISCHARGE TUBE R50024091724 Fan CAPACITOR 2.OMFD R04029007797
8 ASSY., CAP. TUBE - SL07C R50024091764
9 BRACKET,FAN MOTOR R01014052516
Assy, 2 way flare valve 1/4" R50054054950
Assy, 3 way flare valve 3/8" R50054054951
CAPACITOR, CMPSR 20uF/450VAC
Shizuki
R04029026772
R01014084434
CAPACITOR, CMPSR 2uF/450
(TAB187)Shizuki
R04029026755
10
MOTOR, MSL 09C-502-WL
WELLING
R03039028206
11
FAN PROPELLER SL09C Ø355.0 x
115mm
R03019020744
Parts not showed in diagram
2
COMPRESSOR, 2RS122D5BC02
Matsushita
R04019029041
3
ASSY., OUTDOOR COIL - (5)SL09C
7MM RL
R50024087206
13
PANEL,RIGHT
(SL07/09C/CR)(639.4FL)
