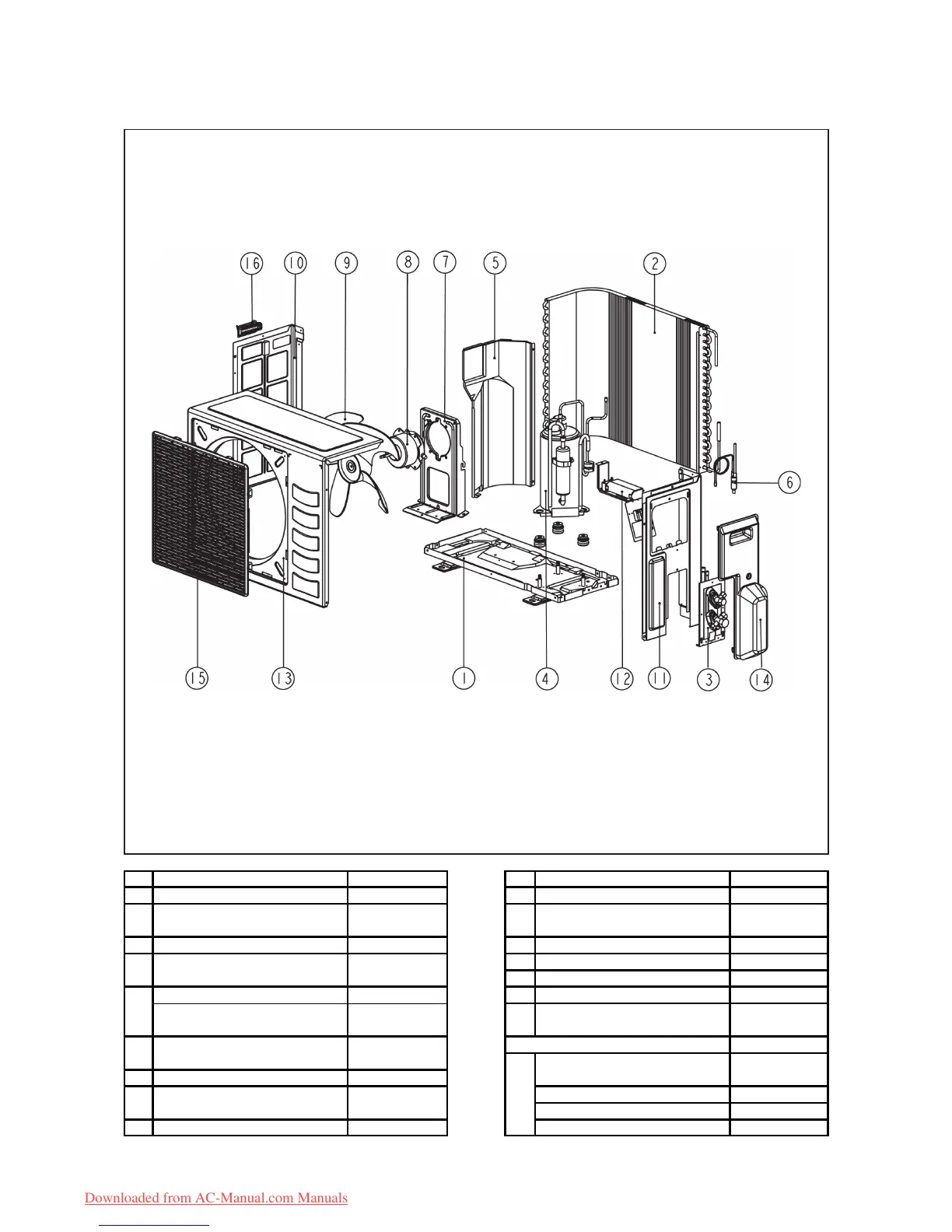

Model : ALC 09C
No Descriptions Part No No Descriptions Part No
1 ASSY,PAN BASE SL07C R50014057372 10 PANEL,LEFT R01014052510
3 VALVE BRACKET R01014051164 12 ASSY,CONTROL PANEL SL09C R50044089886
13 PANEL,TOP/FRONT R01014052512
14 ASSY,VALVE COVER R50124055172
ASSY, PARTITION SL07C/09C(R) R50064084355 15 ASSY,FRONT GRILLE R50124056905
Parts not showed in diagram
7 BRACKET,FAN MOTOR R01014052516
Fan CAPACITOR 2.OMFD R04029007797
Assy, 2 way flare valve 1/4" R50054054950
9 FAN PROPELLER SL09C R03019020744 Assy, 3 way flare valve 3/8" R50054054951
6
ASSY,CAPILLARY TUBE (SL09C-
2PS156D COMP)
R50024087403
2
ASSY., OUTDOOR COIL - (5)SL09C
7MM RL
R50024087206
4
COMPRESSOR, 2PS156D3CB02
MATSUSHITA
R04019027628
ASSY,CAPILLARY TUBE (SL09C-
7.0MM COIL)
MOTOR, MSL 09C-502-WL
WELLING
R03039028206
11
R50024079624
PANEL,RIGHT
(SL07/09C/CR)(639.4FL)
R01014084434
5
16
PLASTIC,HANDLE
SL07C/09C/10C/15C/CR
R12014057948
Comp. CAPACITOR, F 30.0µF
440VAC
R04024012931
8
