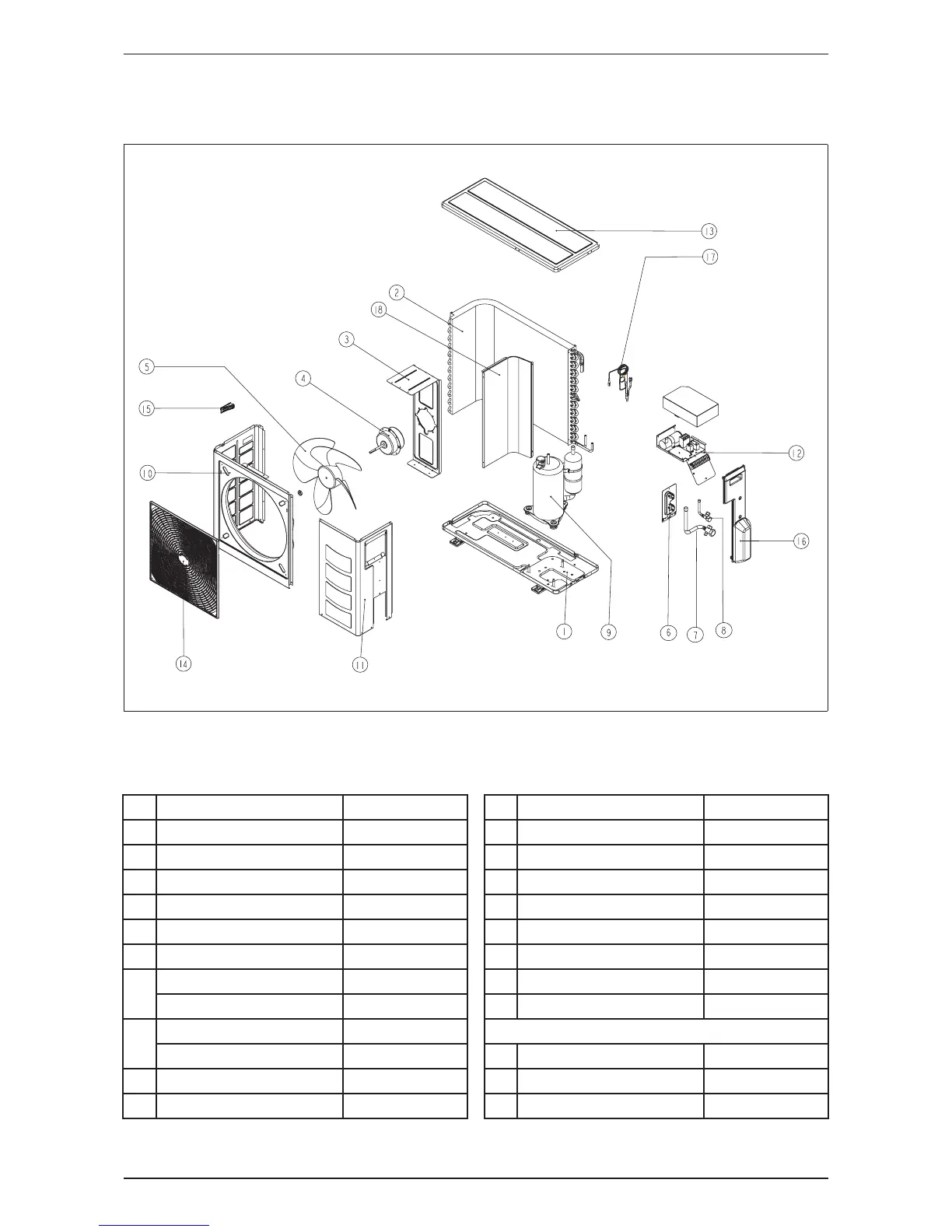

Exploded View and Part List AWM-G-2009
Note: All exploded view and part list are subjected to change by the manufacturer without prior notice
OUTDOOR UNIT
MODEL: A5LC 20C/CR (3 phase)
OUTDOOR UNIT
MODEL: A5LC 20C (3 phase)
No Description Part Number
1 Assy. Base Pan R50014078281
2 Assy. Outdoor Coil R50024079078
3 Bracket, Fan Motor R01014070601
4 Fan Motor R03039024539
5 Fan Propeller R03019023393
6 Assy. Valve Bracket R50014078280
7 Assy. 3 Ways Valve 1/2”
A5LC 20C R50059030471
8 Assy. 2 Ways Valve 1/4”
A5LC 20C R50059030628
9 Compressor R04019029246
10 Front Panel, Left R01014070597Y
No Description Part Number
11 Service Panel R01014070598
12 Assy. Control Panel R50044092272
13 Top Panel R01014070596Y
14 Assy. Front Grille R50124093631
15 Plastic Handle R12014057948
16 Assy. Valve Cover R50124072885
17 Assy. Cap Tube R50024081921
18 Partition R01014070603
Parts Not in Diagram
Capacitor, Fan Motor R04029026759
Phase Protector R04089018834
Back Panel, Right R01014070599
