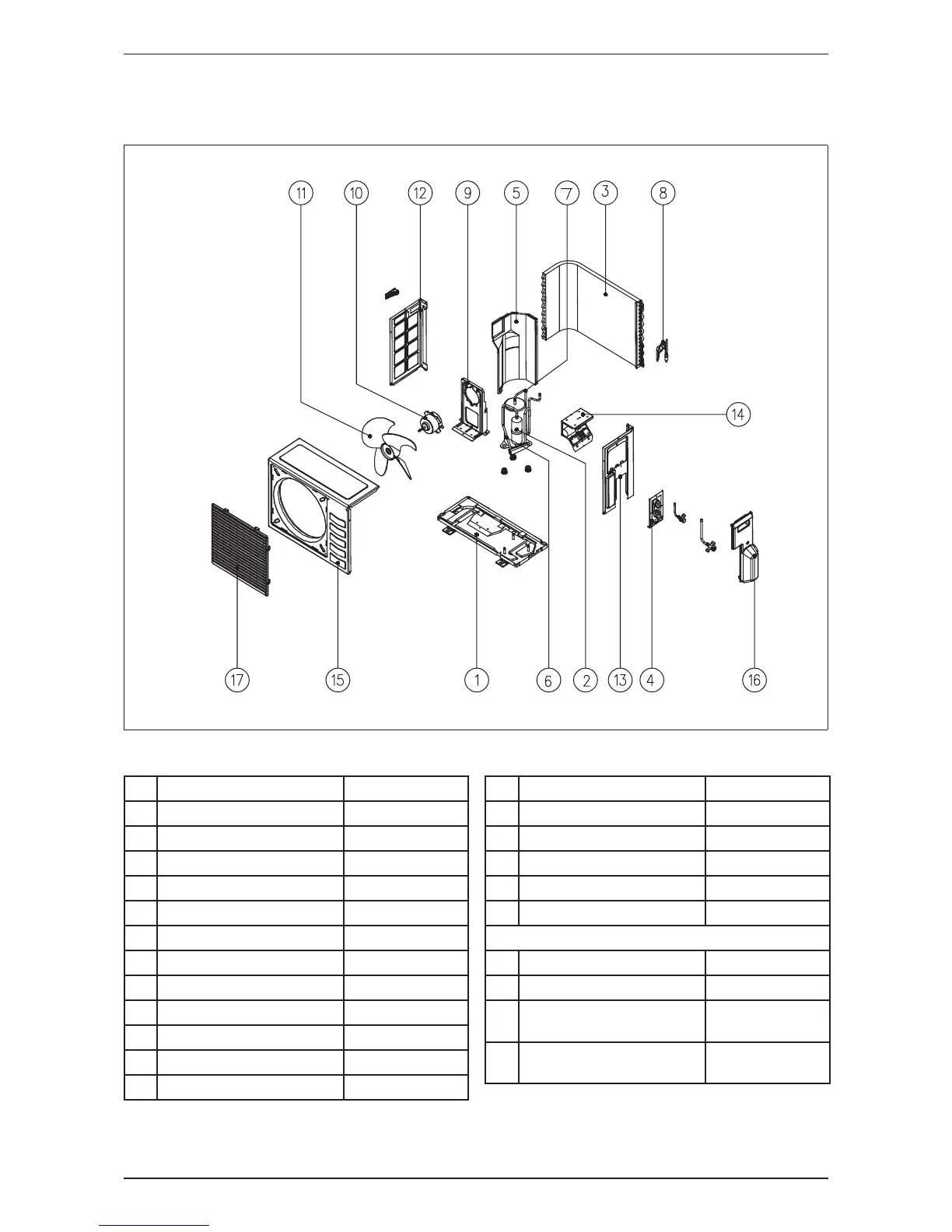

AWM-G-2009 Exploded View and Part List
Note: All exploded view and part list are subjected to change by the manufacturer without prior notice
OUTDOOR UNIT
MODEL: ALC 07C
No Description Part Number
1 Assy. Base Pan R50014057372
2 Compressor R04019029041
3 Assy. Outdoor Coil R50024087206
4 Valve Bracket R01014051164
5 Assy. Partition R50064084355
6 Assy. Suction Tube R50024091725
7 Assy. Discharge Tube R50024091724
8 Assy. Cap Tube R50024091764
9 Bracket, Fan Motor R01014052516
10 Fan Motor R03039028206
11 Fan Propeller R03019020744
12 Left Panel R01014052510Y
No Description Part Number
13 Right Panel R01014084434Y
14 Assy. Control Panel R50044092695
15 Top/Front Panel R01014052512Y
16 Assy. Valve Cover R50124055172
17 Assy. Front Grille R50124093629
Parts Not in Diagram
Capacitor, Fan Motor R04029026755
Capacitor, Compressor R04029026772
Assy. Flare Valve 2 Ways
1/4”
R50059029814
Assy. Flare Valve 3 Ways
3/8”
R50059029815
To Next Page
