109

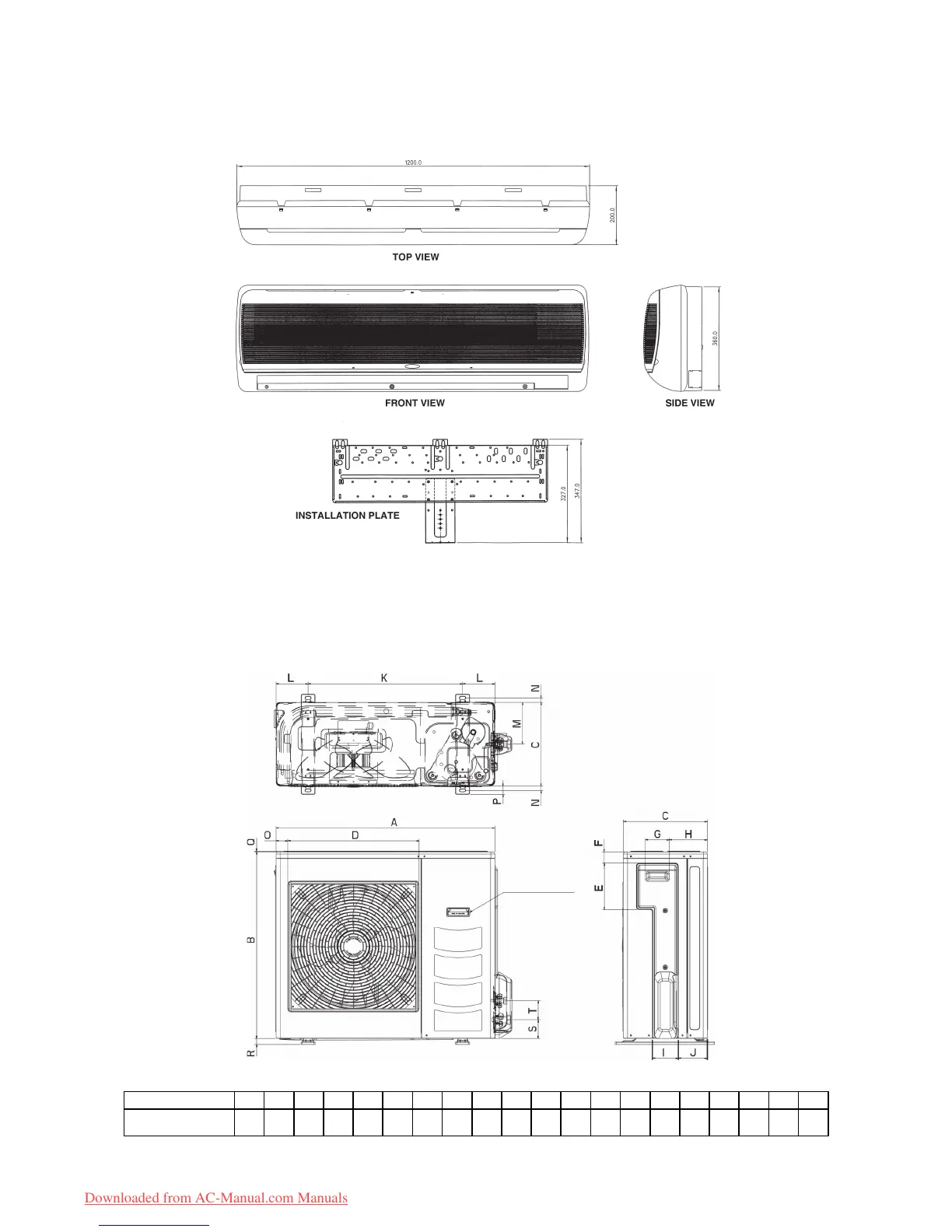

INDOOR UNIT
MODEL :
A5WM 31
1 / 301R
OUTDOOR UNIT
MODEL :
A5LC 28C / 28CR
Note : Dimension in mm
Note : Dimension in mm
For M5LC / MLC 028 C/CR Only
M
O
D
E
L
ABCDEFG
H
I
J
K
LM
NO
PQ
RS
T
ALC 28C/28CR A5LC
28C/28CR
855
730
328
513
182
44
93
149
101
113
60
3
126
164
17
47
32
3
23
73
75
Downloaded from AC-Manual.com Manuals
110
112
Table of Contents
Default Chapter
2
Table of Contents
2
1 Nomeneclature
3
Model Name
4
Product Line-Up
5
2 Features
9
Wireless Remote Control
9
Self Diagnosis
10
3 Application Information
11
Operating Range
11
Refrigerant Circuit Diagrams
12
Controllers
19
Temperature Setting
19
Turbo Mode
19
Indicator Lights
20
Controller Specifications
23
Installation
27
Additional Charge
37
4 Sound Data
41
Measuring Location
41
5 Engineering and Physical Data
45
General Data
45
Components Data
61
6 Performance Data
77
Performance Tables
81
Cooling Only
81
Cooling Mode
85
Heating Mode
85
7 Dimensional Data
108
Indoor Unit
110
Outdoor Unit
110
8 Electrical Data
112
9 Wiring Diagrams
120
10 Servicing and Maintenance
129
11 Troubleshooting
131
12 Exploded View & Parts List
136
