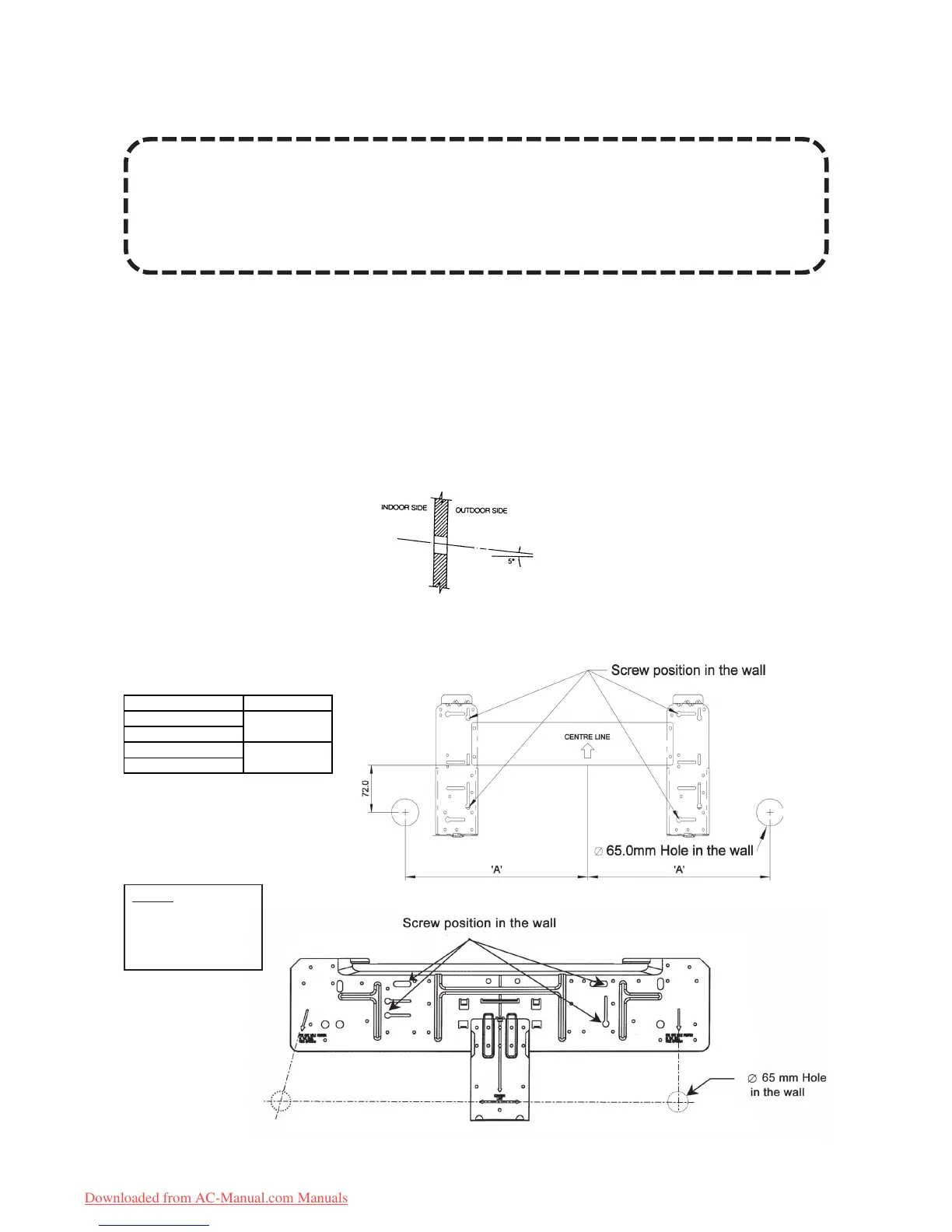

2) DRILLING HOLES AND MOUNTING INSTALLATION PLATE
CAUTION:
i) Please check the unit weight for each model. Always ensure that the wall is sufficiently strong to withstand
the weight. If not, it is necessary to reinforce the wall with plate, beams or pillars.
ii) The unit cannot be directly fixed onto the wall or the likes. In all cases, the installation plate provided MUST
be used.
• Paste the installation plan provided on the desired location on the wall and mark the holes location accordingly.
• Ensure that the minimum maintenance and servicing space at the top, left and right side of the unit is
reserved.
• Ensure also the levelness of the installation plate.
• Drill the screw mounting holes (minimum 4 screws are required).
• Drill the pipe hole at the location as per plan. (This is only applicable for rear piping outlet installation).
Note: The hole should be drilled slightly lower at outdoor side as per figure below:--
• Fix the installation plate firmly to wall, without tilting to left or right. Use a plumb line, if available.
MODEL
AWM 20 / 25 G/GR
A5WM 20 / 25 G/GR
AWM 30F / 30FR
A5WM 31F / 30FR
MODEL DIMENSION 'A'
AWM 07/09 G/GR
A5WM 07/09 G/GR
AWM 10/15 G/GR
A5WM 10/15 G/GR
350.0 mm
400.0 mm
