137

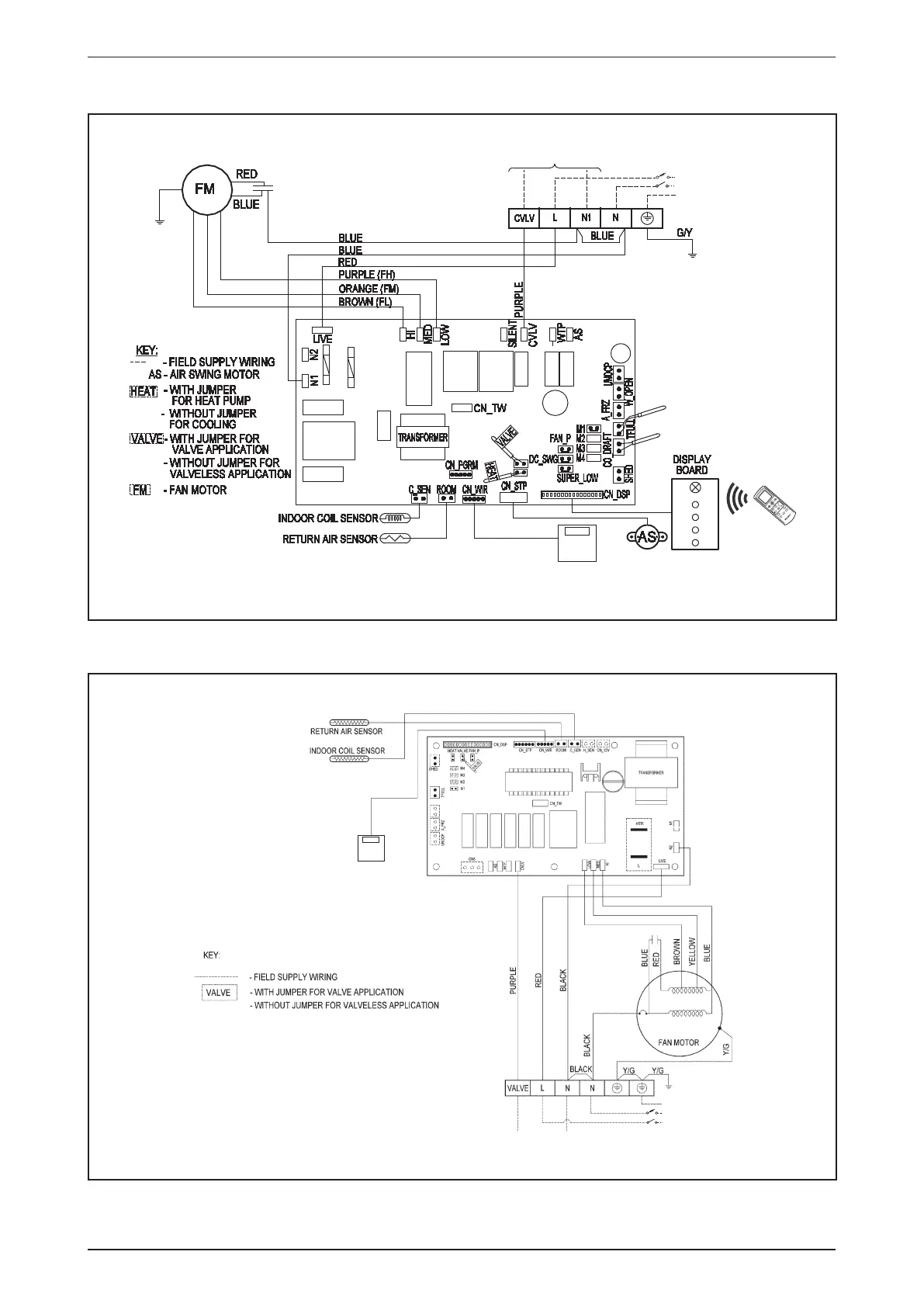

Wiring Diagrams
Model: ACM30/40/50EW
TO 2/3 WAY VALVE
TURBO
QUIET SLEEP
MODE
TIMER
CANCEL
ON OFF
SWIN
G FAN
CANCEL
CLOCK
POWER SUPPLY
L
N
E
220-240V/1Ph/50Hz
WIRED
CONTROLLER
(OPTIONAL)
Model: ACC10/15/20/25CW (With Controller)
WIRED
CONTROLLER
(OPTIONAL)
TO 2/3 WAY VALV E
L
N
E
POWER SUPPLY
220-240V/1Ph/50Hz
