138

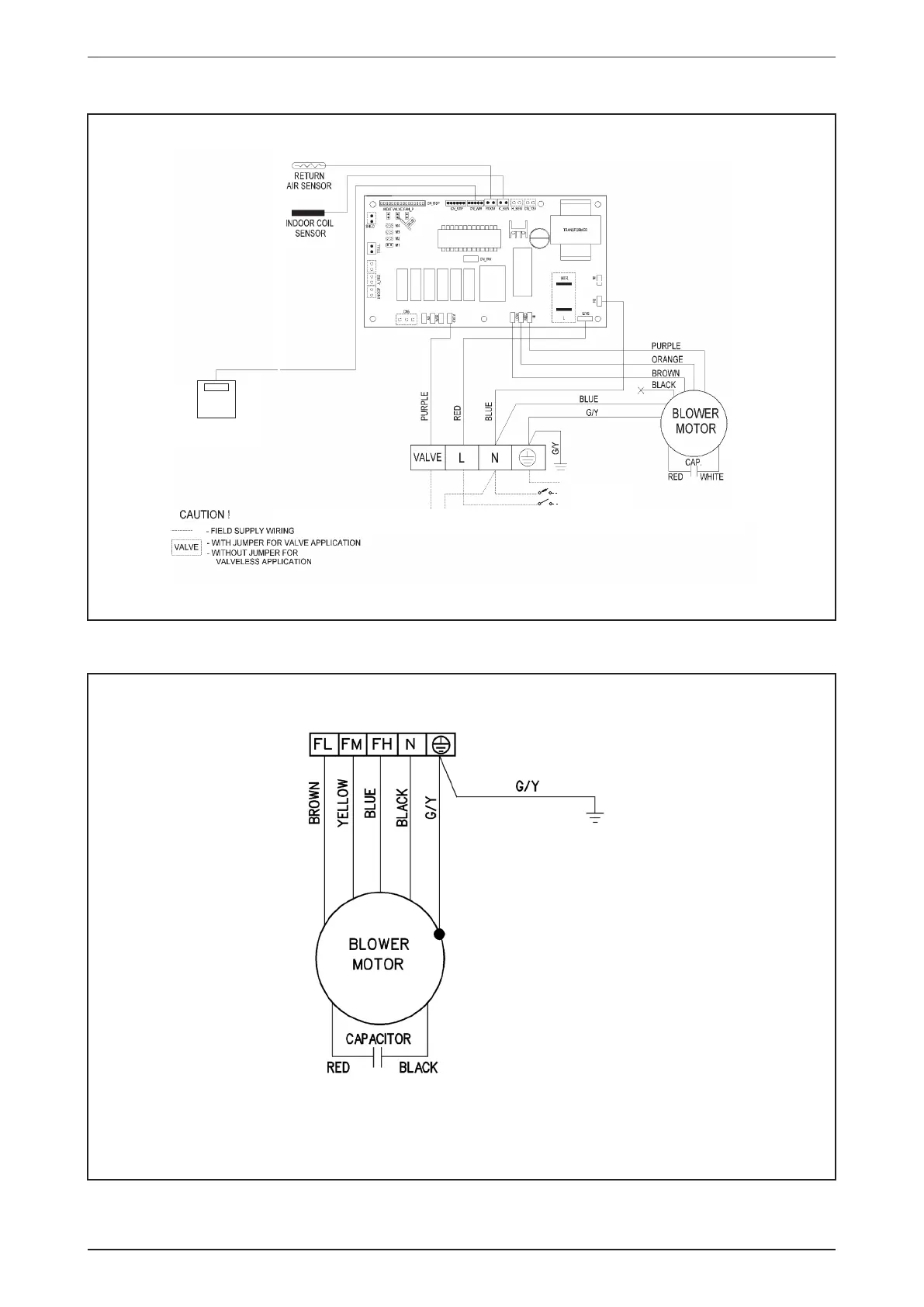

Wiring Diagrams
Model: ACC30/38/40/50/60CW (With Controller)
WIRED
CONTROLLER
(OPTIONAL)
TO 2/3 WAY VALVE
L
N
E
POWER SUPPLY
220-240V/1Ph/50Hz
Model: ACC10/15/20/25CW (Without Controller)
