Application Information
Model: ADB
Mounting
Ensure that the overhead supports are strong enough to hold the unit’s weight. Position hanger rods and
check for alignment with the unit. Check that hangers are secure and that the base of fan-coil unit is level
in the two horizontal directions, taking into account the gradient recommended for drainage ow as shown.
Check the gradient recommended for drainage ow as follow.
10
ADB20/25BW
500mm
300mm
300mm
300mm
500mm
* for free return of air

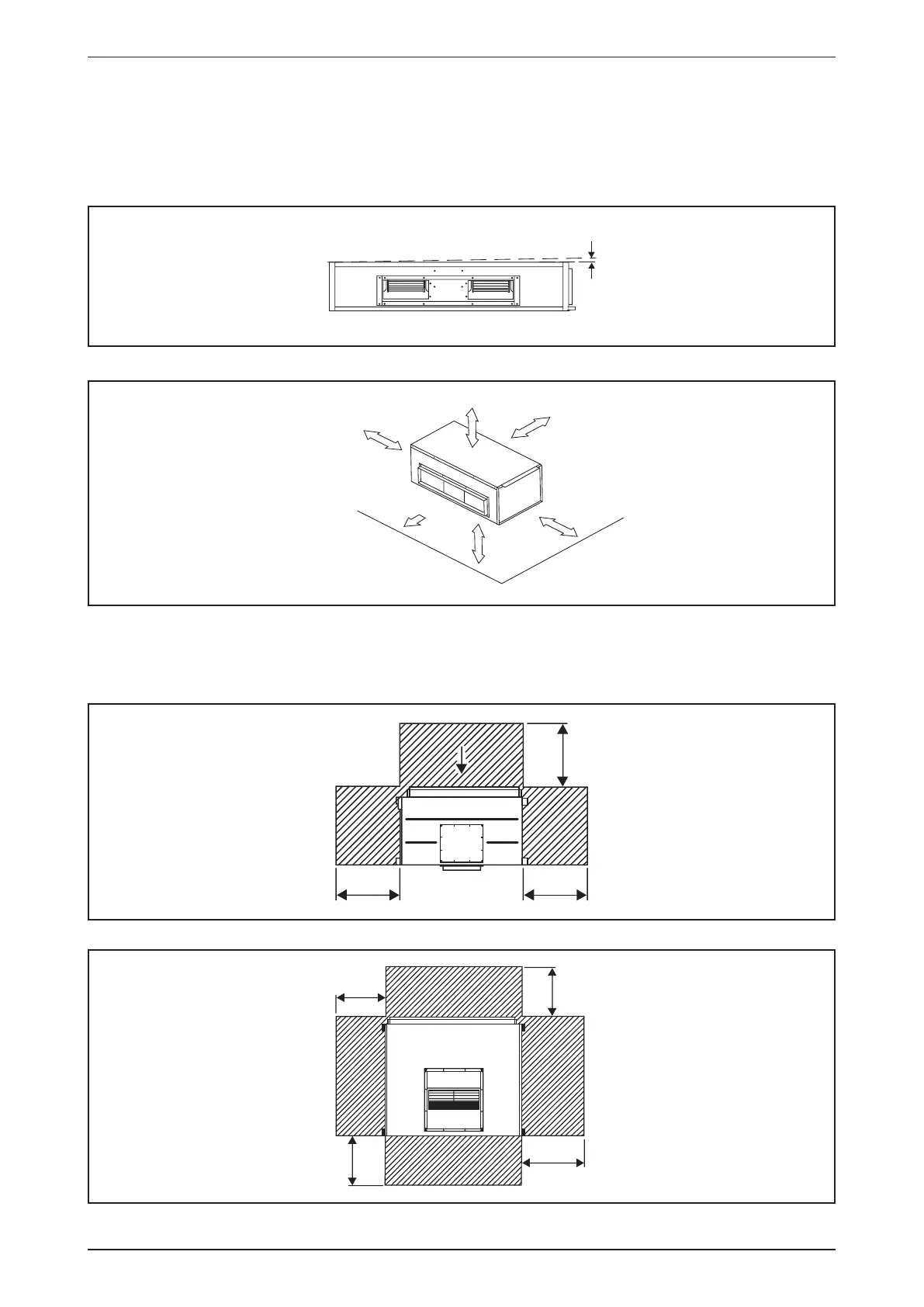

Provide clearance for servicing and optimal air ow as shown in the diagram.
The indoor unit must be installed such that there is no short circuit of cool discharge with air discharge.
Respect the installation clearance.
ADB30/40BW (Horizontal)
0.0080.008
800.0
ADB30/40BW (Vertical)
800.0
800.0
1000.0
800.0
All dimensions in mm
