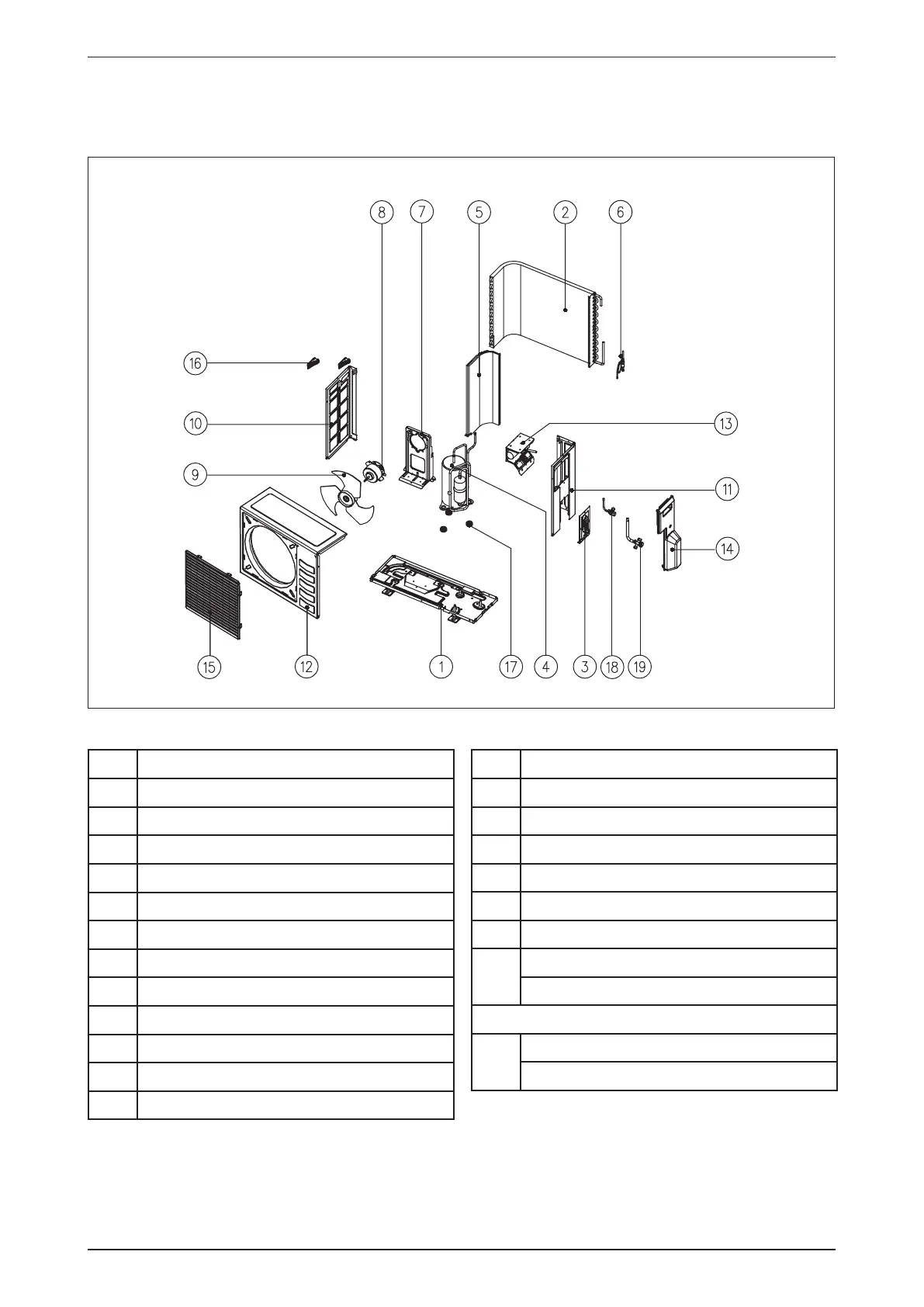

Exploded View and Part List AWM-J-2010
Note: All exploded view and part list are subjected to change by the manufacturer without prior notice
OUTDOOR UNIT
MODEL: ALC15C, A5LC10/15C
70024056771
No Description
1 Assy. Base Pan
2 Assy. Outdoor Coil
3
Valve Bracket
4 Compressor
5 Assy. Partition
6 Assy. Cap Tube
7 Bracket, Fan Motor
8 Fan Motor
9 Fan Blade
10 Left Panel
11 Right Panel
12 Assy. Front Panel
No Description
13 Assy. Control Panel
14 Assy. Valve Cover
15 Assy. Front Grille
16 Plastic Handle
17 Rubber Grommet
18 Assy. Flare Valve 2 Ways 1/4”
19 Assy. Flare Valve 3 Ways 3/8”
Assy. Flare Valve 3 Ways 1/2”
Parts Not in Diagram
Capacitor, Fan Motor
Capacitor, Compressor
To Next Page
