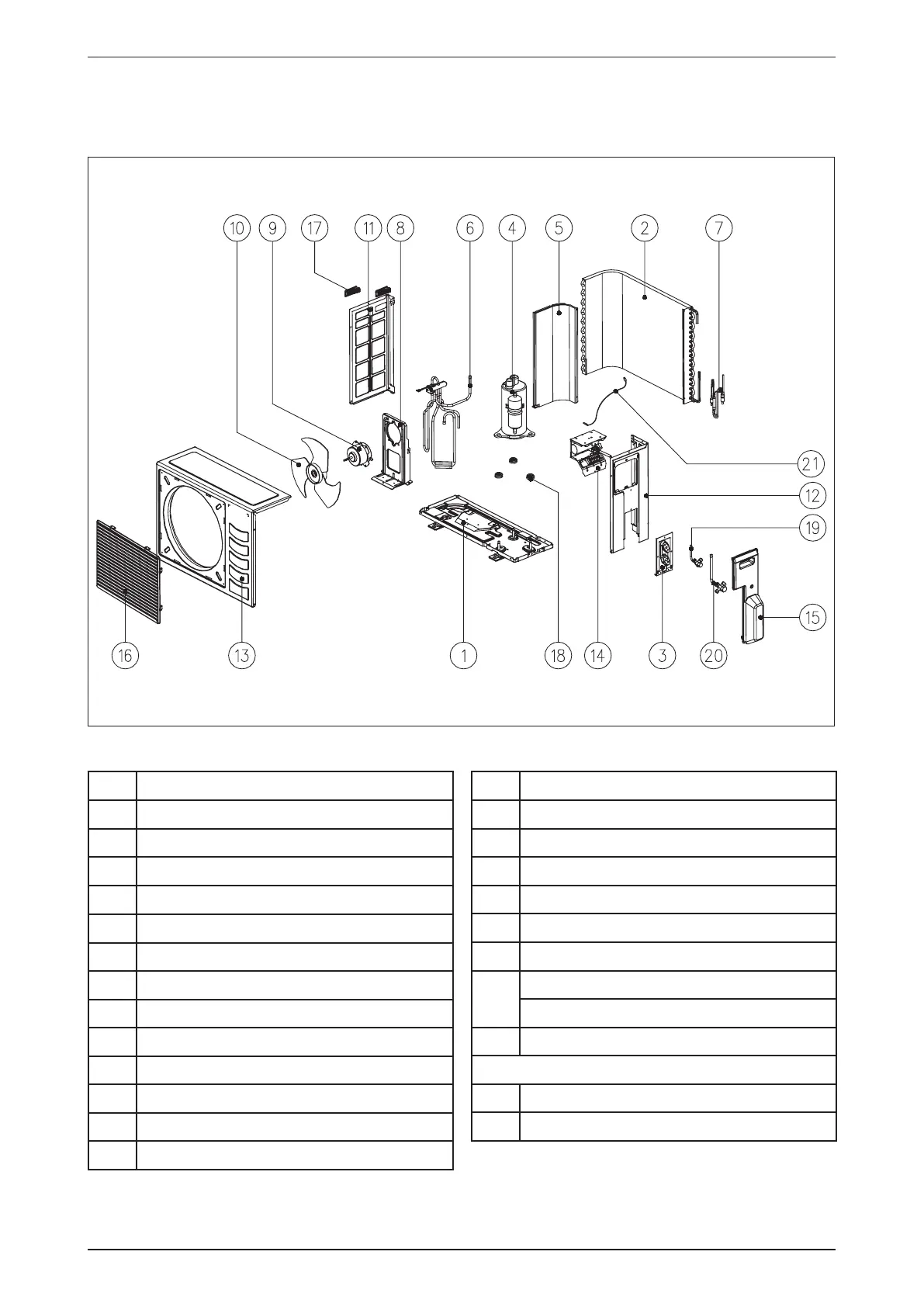

AWM-J-2010 Exploded View and Part List
Note: All exploded view and part list are subjected to change by the manufacturer without prior notice
OUTDOOR UNIT
MODEL: ALC15CR, A5LC10/15CR
70024061687
No Description
1 Assy. Base Pan
2 Assy. Outdoor Coil
3
Valve Bracket
4 Compressor
5 Assy. Partition
6 Assy. 4 Way Valve
7 Assy. Cap Tube
8 Bracket, Fan Motor
9 Fan Motor
10 Fan Blade
11 Left Panel
12 Right Panel
13 Assy. Front Panel
No Description
14 Assy. Control Panel
15 Assy. Valve Cover
16 Assy. Front Grille
17 Plastic Handle
18 Rubber Grommet
19 Assy. Flare Valve 2 Ways 1/4”
20 Assy. Flare Valve 3 Ways 3/8”
Assy. Flare Valve 3 Ways 1/2”
21 Sensor, Outdoor Defrost
Parts Not in Diagram
Capacitor, Fan Motor
Capacitor, Compressor
To Next Page
