1-5
English
Liquid Pipe
Brazer

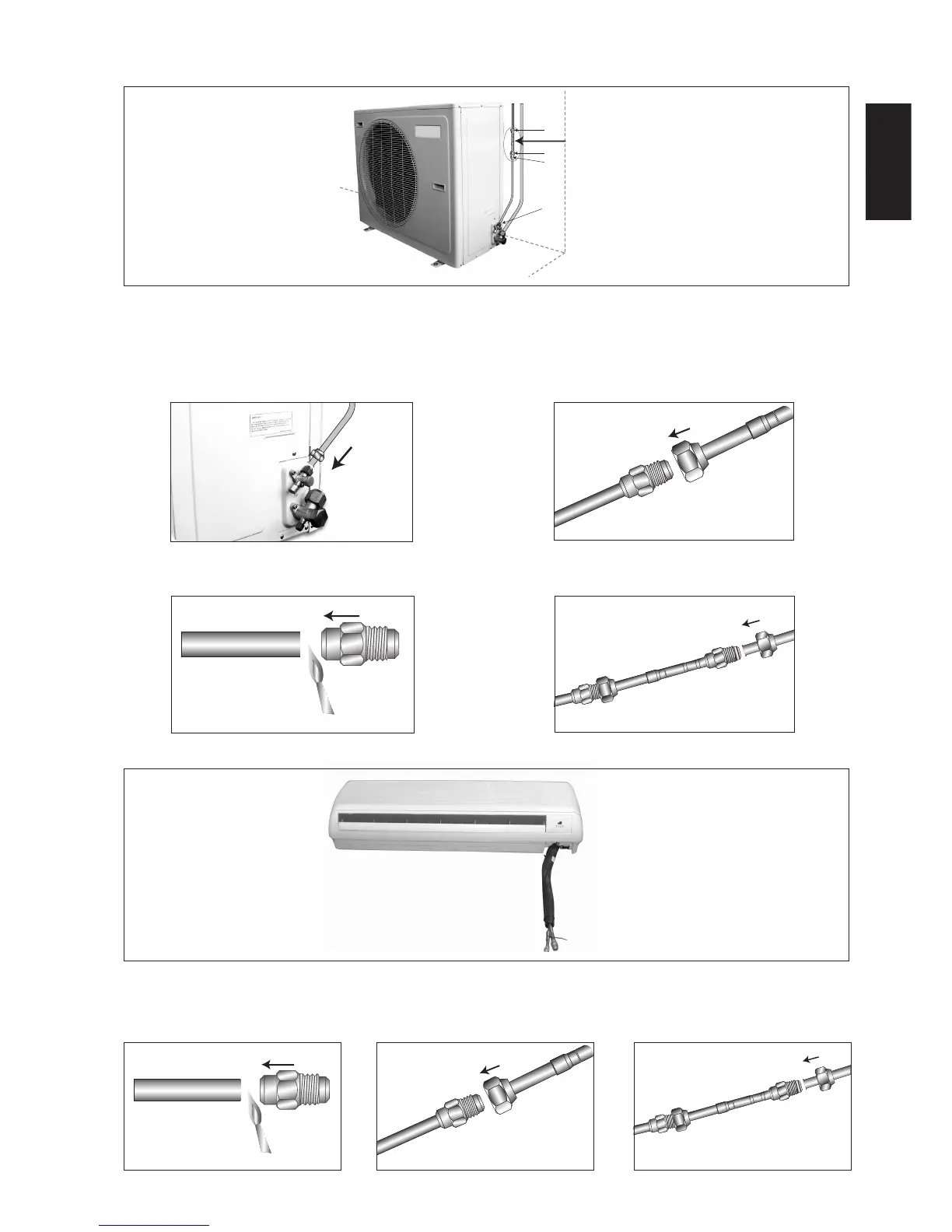

C. Indoor unit orifice pipe installation
Indoor Unit
Orifice Pipe
B. Outdoor unit orifice pipe installation (where installation space is limited)
Step 4
Step 3
Step 2
Step 1
Orifice Pipe
If the orifice pipe cannot be connected directly to the liquid valve due to space constraint, it can be connected in between of the
liquid pipe.
Steps:
1. Flare the liquid pipe and connect it to the liquid valve.
2. Braze an additional “Male” joint to the liquid pipe.
3. Connect the “Female” nut of the Orifice pipe to
the“Male” joint.
4. Flare another liquid pipe and connect it to the “Male”
joint of the orifice pipe.
Steps:
1. Braze an additional “Male” joint
to the liquid pipe.
3. Flare another liquid pipe and
connect it to the “Male” joint
of the orifice pipe.
2. Connect the “Female” nut of the
Orifice pipe to the“Male” joint.
Liquid Pipe
Brazer
Liquid Pipe
Orifice Pipe
Liquid Pipe
Orifice Pipe
Liquid Pipe
Orifice Pipe
Liquid Pipe
Orifice Pipe
To Next Page
