Combo Probe Installation:
If the BATTview comes with Combo Probe, use the ½” drill bit and drill a hole at the center of the
battery
(make sure it is installed at least 8 cells from the negative terminal)
as shown in the
example picture below. Seal the probe with RTV Silicon after inserting the probe in the battery.

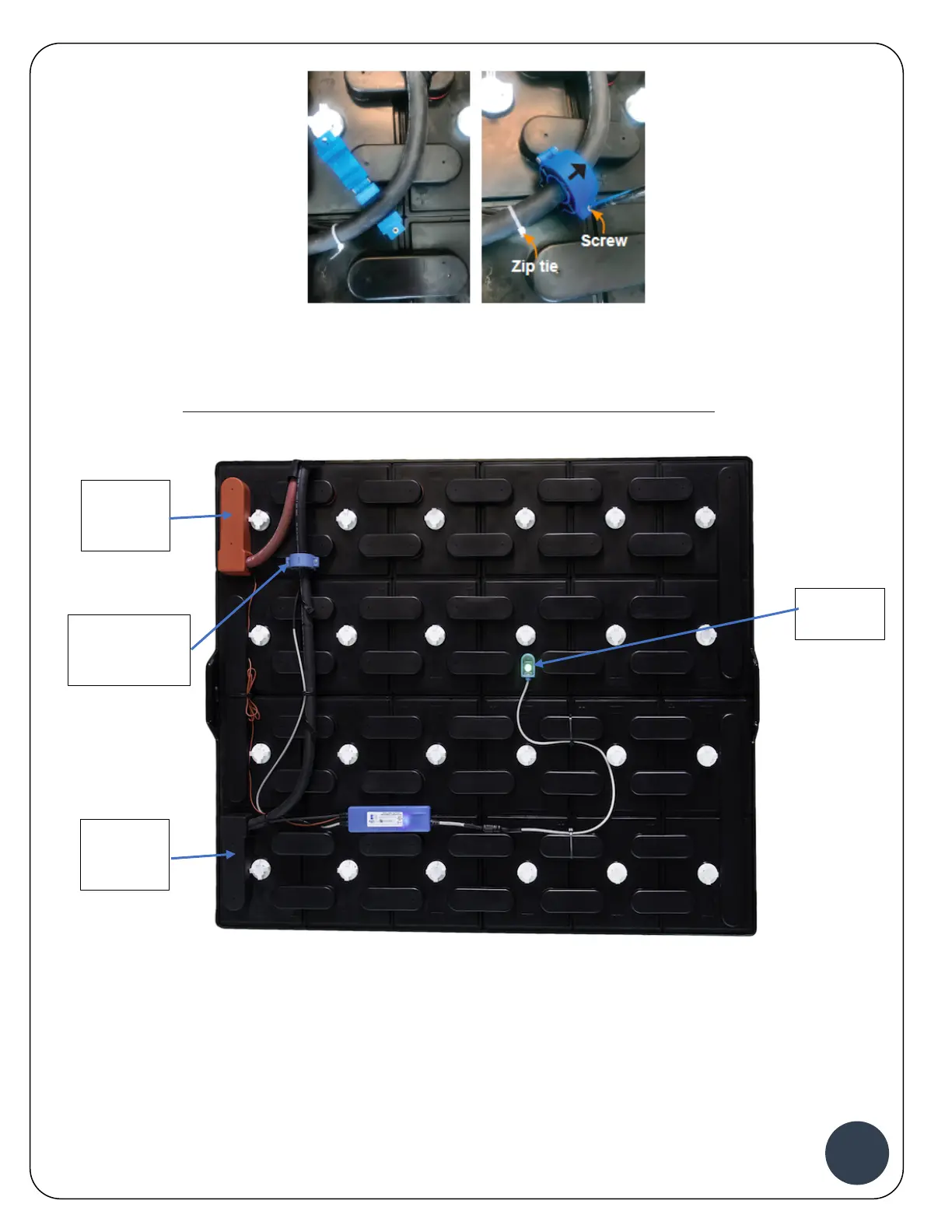

Example
: BATTview ll Installed on 36V industrial battery
Negative
Battery
Lead
Positive
Battery
Lead
Combo
Probe
Hall-effect
Current Sense
Leads
