USER MANUAL 750000992/16
7-9
MTS
e

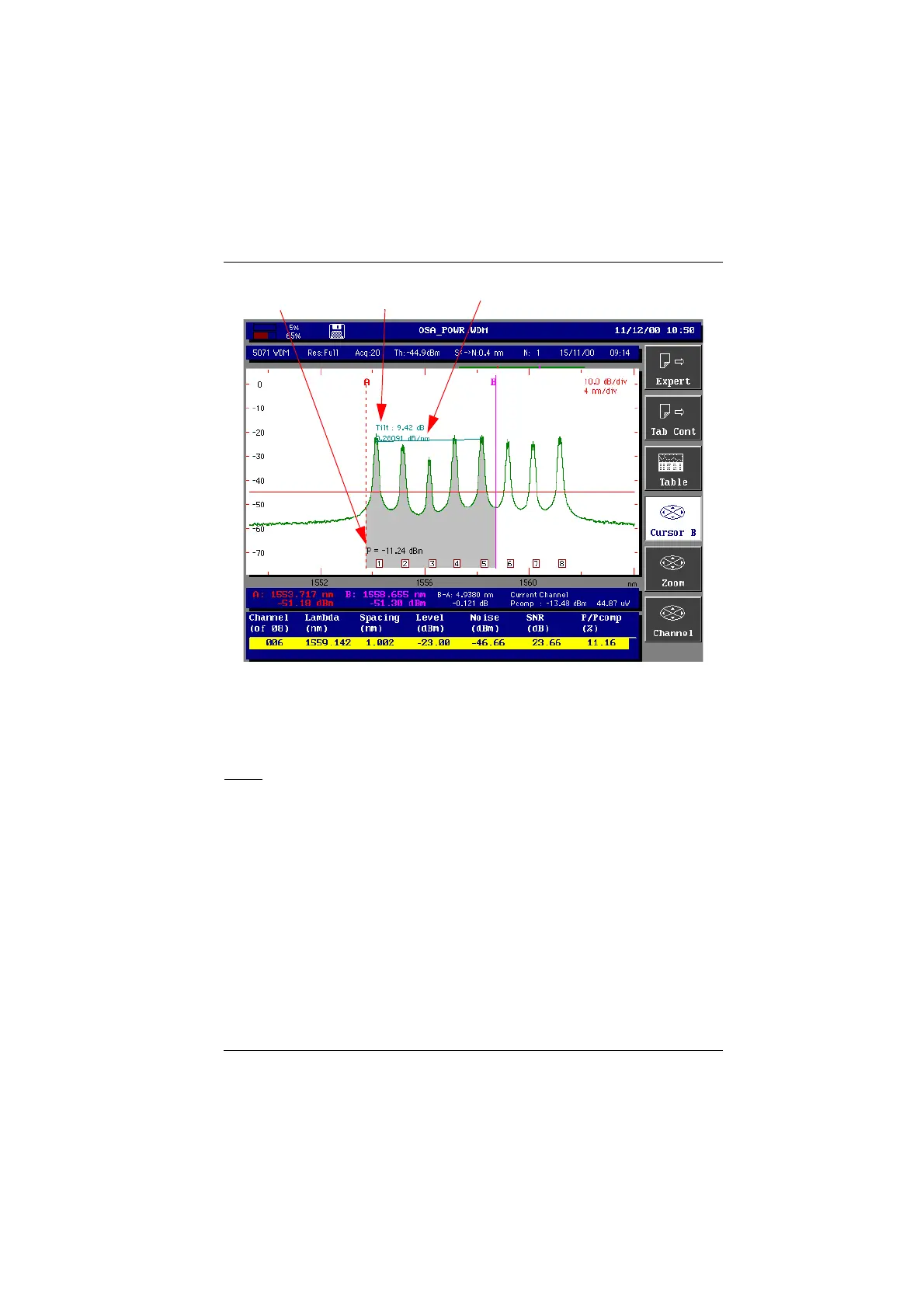

Display of WDM results
Display of total power, Gain Tilt and
gain slope between the cursors
Overlay
See "Overlay of traces" on page 7-12
Table
Lines
Depending on the choice made in the Set-up menu, in the Detection window, for
the «Channel Detection» parameter, the table contains:
• either one line for each detected channel, if the «1st sweep» option is selected
• or a line for each graduation if the grid option is selected.
Display type
By defect only one line of the table is displayed below the trace.
• To display 8 lines of the table, under the trace, press the <1/2 tabl> key or the
RESULTS button.
• to display 18 lines of the table (without trace), press the <Table> key or the
RESULTS button.
• to display again the trace with only a line of the table, press the <Trace> key
or the
RESULTS button.
Gain Tilt Gain SlopeTotal power
