Hardware Manual
9
Before Installation
The camera comes with terminal blocks used when an external power adapter and a digital
input/output device are needed to be connected to the camera. The following procedures
describe how to connect optional devices to the camera.

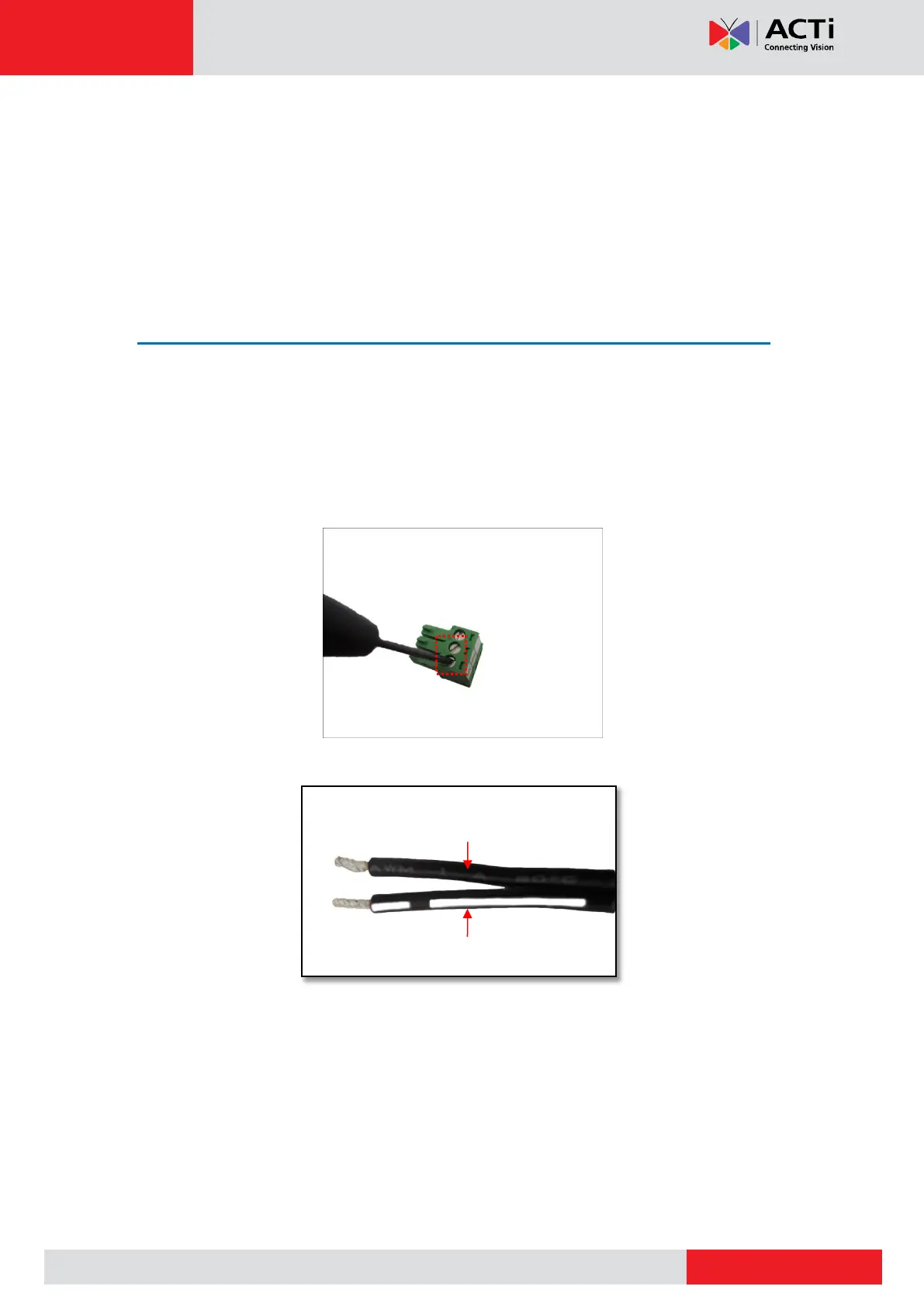

Prepare the Power Adapter (Optional)
In case of using a non-PoE switch or your PoE switch has limited power supply, you can
purchase a power Adapter and directly connect the camera to a power outlet. The power
adapter must be connected to the supplied terminal block before use.
To do this, follow the procedures below:
1. Loosen the screws of the 12V and GND pins of the power terminal block.
2. Take note that a standard power adapter cable has two (2) different wires:
White stripe: Connects to 12V Pin
