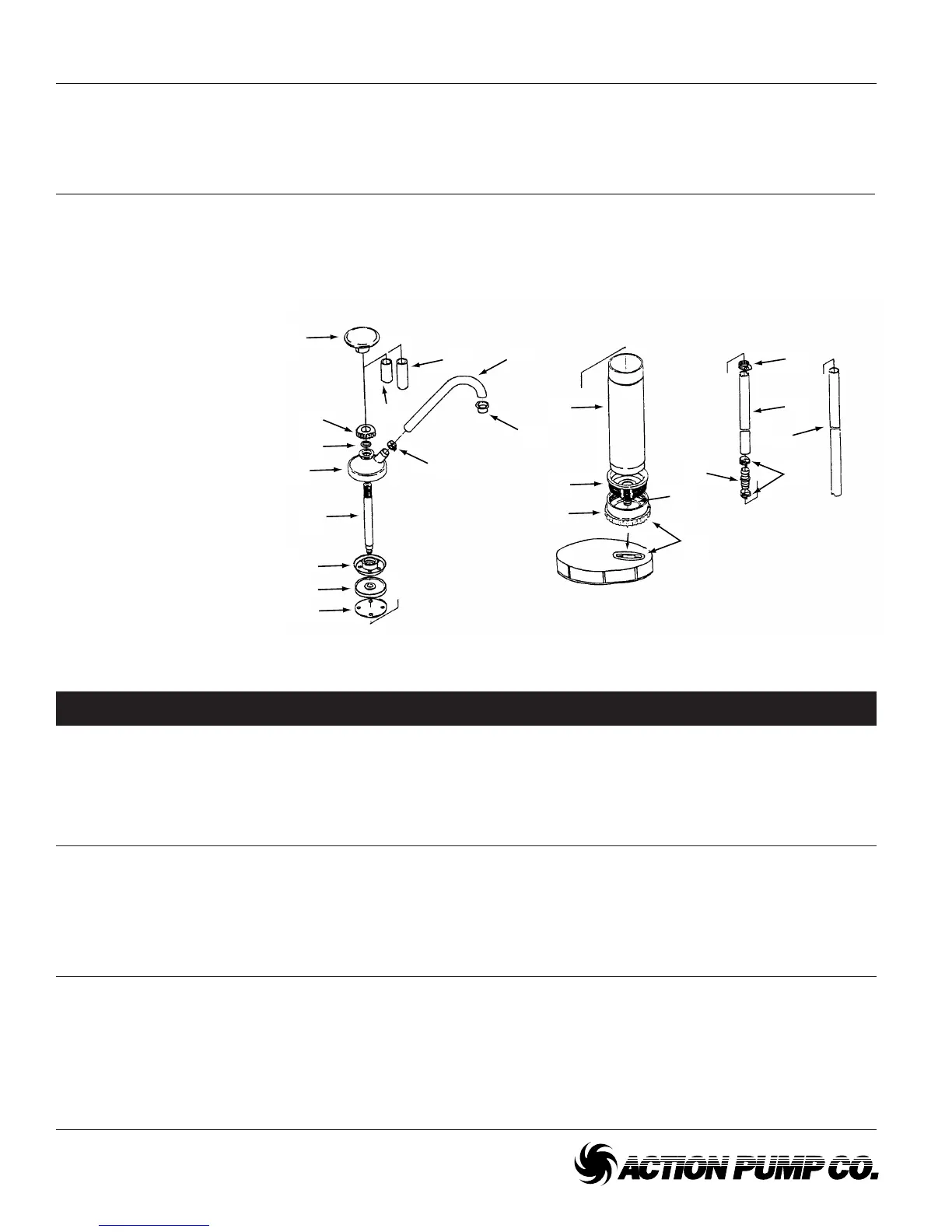

Figure 1 — Replacement Parts Illustration
1 Grip Polypropylene 6008-05 6009-05 1
2 Packing nut Polyethylene 6008-06 6009-06 1
3 Packing gland Viton 6008-14 6009-14 1
4 Cylinder cap Polypropylene 6008-02 6009-02 1
5 Piston rod Polypropylene 6008-07 6009-07 1
6 Piston Polyethylene 6008-08 6009-08 1
7 Second valve Polyethylene 6008-09 6009-09 1
8 First valve Polyethylene 6008-10 6009-10 1
9 Restriction clip Polyethylene 6008-19 6009-19 1
10 Tube clamp Steel 6008-15 6009-15 1
11 Restriction clip Polyethylene 6008-18 6009-18 1
12 Cylinder body Polypropylene 6008-01 6009-01 1
13 Drum bung Polypropylene NA NA 1
14 Adapter Polypropylene 6008-258 6009-258 1
15 Discharge spout Polyethylene 6008-13 6009-13 1
16 Spout cap Polyethylene 6008-20 6009-20 1
17 Tube connector Polyethylene 6008-17 6009-17 1
18 Dip tube Polyethylene 6008-18 6009-18 1
19 Dip tube Polyethylene 6008-19 6009-19 1
20 Tube clamps Steel 6008-16 6009-16 3
Reference Part Number For Models:
Number Description Material Model 6008 Model 6009 Quantity
Replacement Parts List
Action Operating Instructions and Parts Manual
Action Barrel Pumps
6008 and 6009
fitting
on lid
LID NOT INCLUDED
11
15
16
12
13
14
9
20
1
2
3
4
5
6
7
8
A
17
B
20
19
10
18
