S002217-2 Basketball System
Assembly Instructions (cont)
Step 7
Step 8
J
J
E
B
B
E
E
E
6
A
12
L
M
I
D
6
5
4
10
10
13

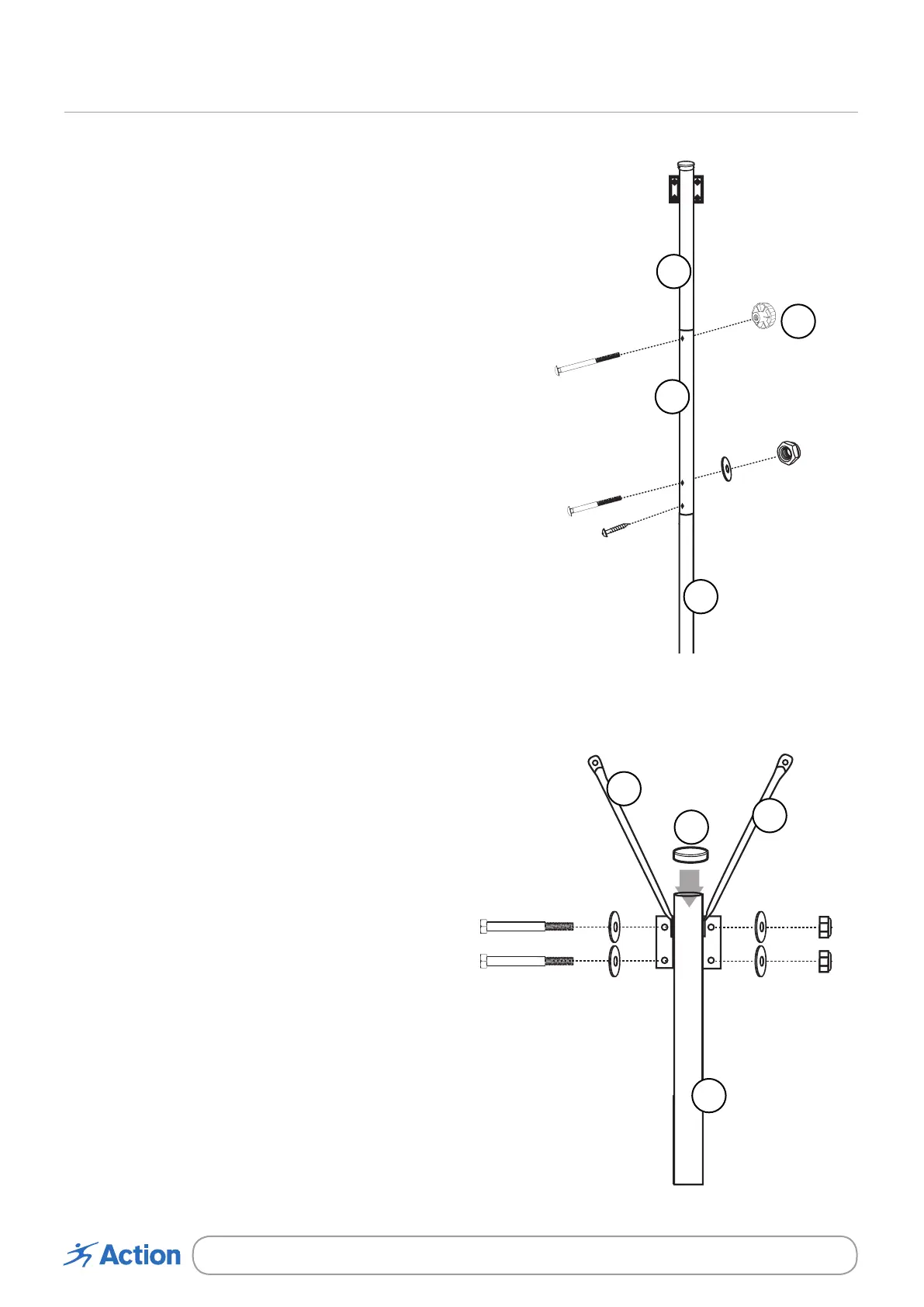

Secure the Top Pole 6 and upper Middle Pole 5
together at desired height using Bolt L and the
Plastic Knob 12.
Then secure the bottom of upper Middle Pole 5
into the top of the Bottom Pole 4 using Bolt M,
Washer D and Nut A in the upper hole provided.
Use Screw I in the lowest hole provided.
Attach the Backboard 1 and Rim 2 to the stand.
Secure this by placing the Bracket N on either
side of the Top Pole 6 where the holes are
provided.
Align the end of Support Arm 10 with the top
hole provided on Top Pole 6 and the Brackets N.
Fix this in place using Bolt J, Washer E and
Nut B.
Finish by plugging Top Pole 6 with the Pole Collar
13.
