S002217-2 Basketball System
Assembly Instructions

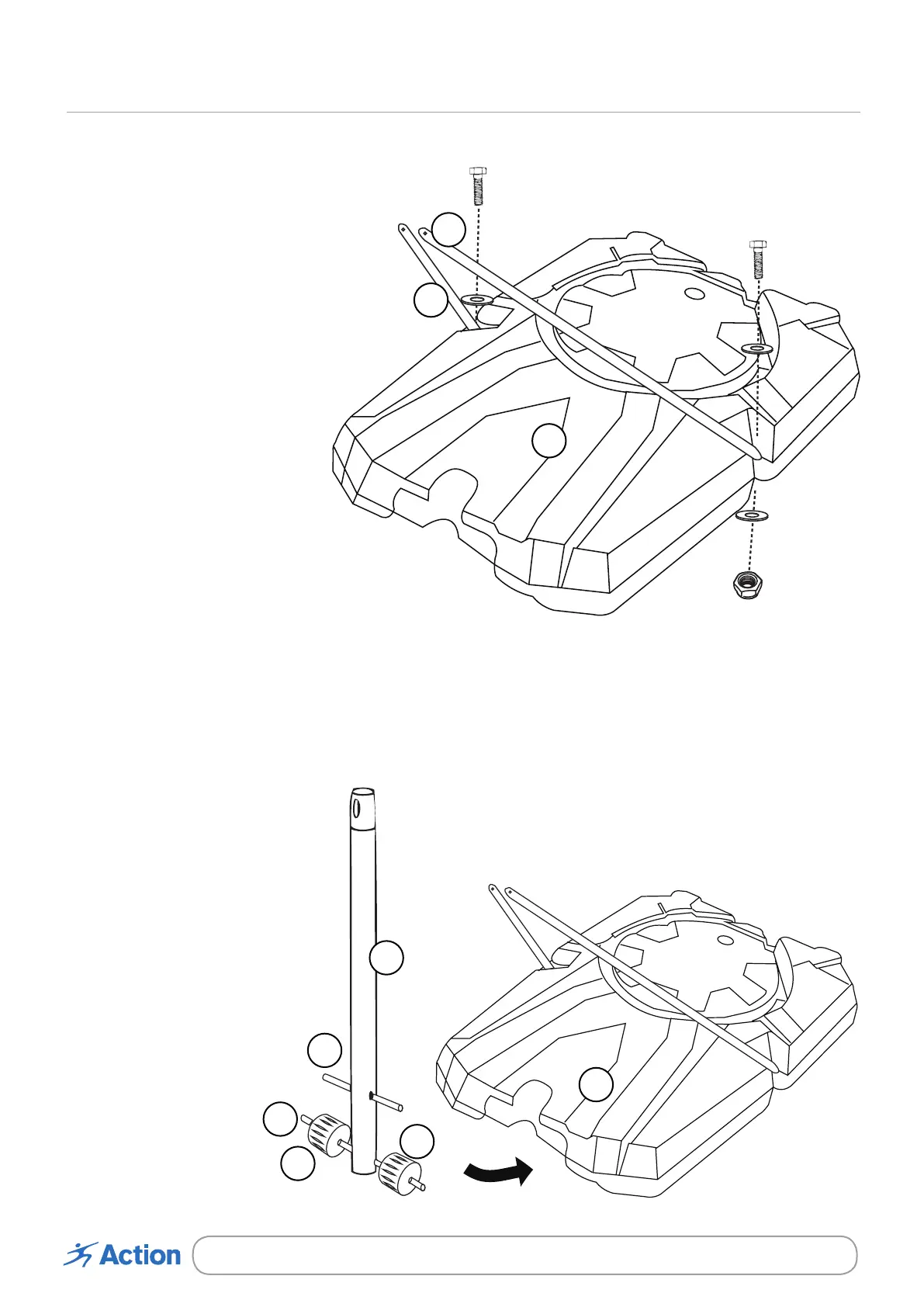

Step 2
Insert the long Axel 8 into the
lowest set of holes of Bottom Pole
4. Now insert the short Axel 9 into
the next set of holes above.
Slide wheels 11 onto each side of
Axel 8.
G
G
D
D
A
D
3
4
9
8
11
11
7
7
3
Step 1
Attach Support Arms 7 to the Base 3
using Bolt G and Washer D through the
top and secure with Nut A underneath.
