7
S002217-2 Basketball System
Assembly Instructions (cont)
Step 3

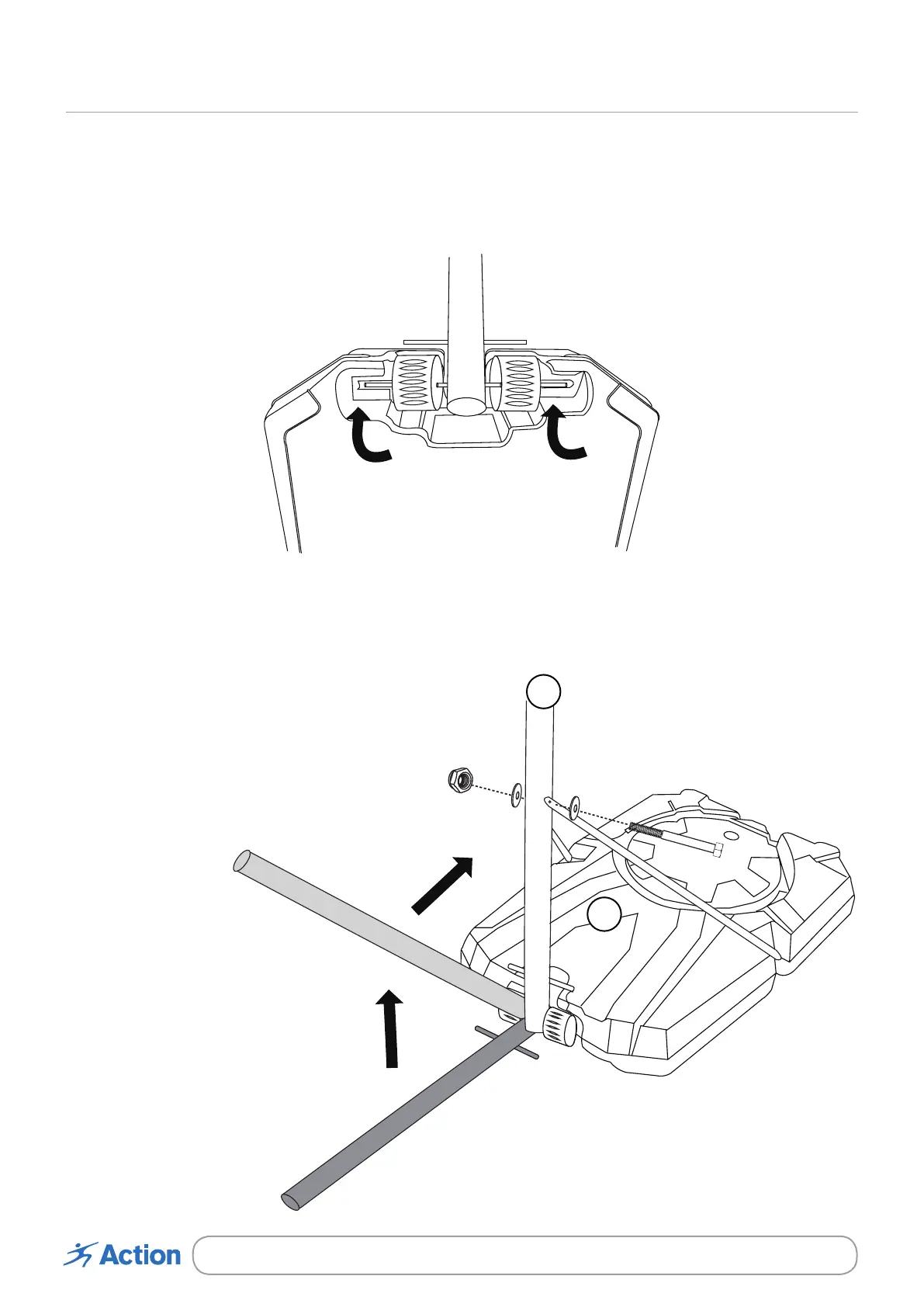

Attach Bottom Pole 4 to the Base 3 of the stand by slotting Axle 8 with wheels attached into the moulded
area provided underneath the base. See image below.
Using Bolt K, Washer D and Nut A,
fix the Support Arms 7 to the Botom
Pole 4 in the holes provided.
Guide the Bottom Pole 4 upwards so that
it is in the upright position. Ensure that the
Axle 9 slots into the grooves at the top of
the Base 3. See below image.
A
D
D
K
3
4
