ACTpro 1030e - Wiegand Wiring Diagrams; Wiegand Entry Reader Wiring; Wiegand Exit Reader Wiring

ACTpro Readers Installation Manual
Copyright © 2016 Access Control Technology Ltd. Part No.18-00106 Issue 0

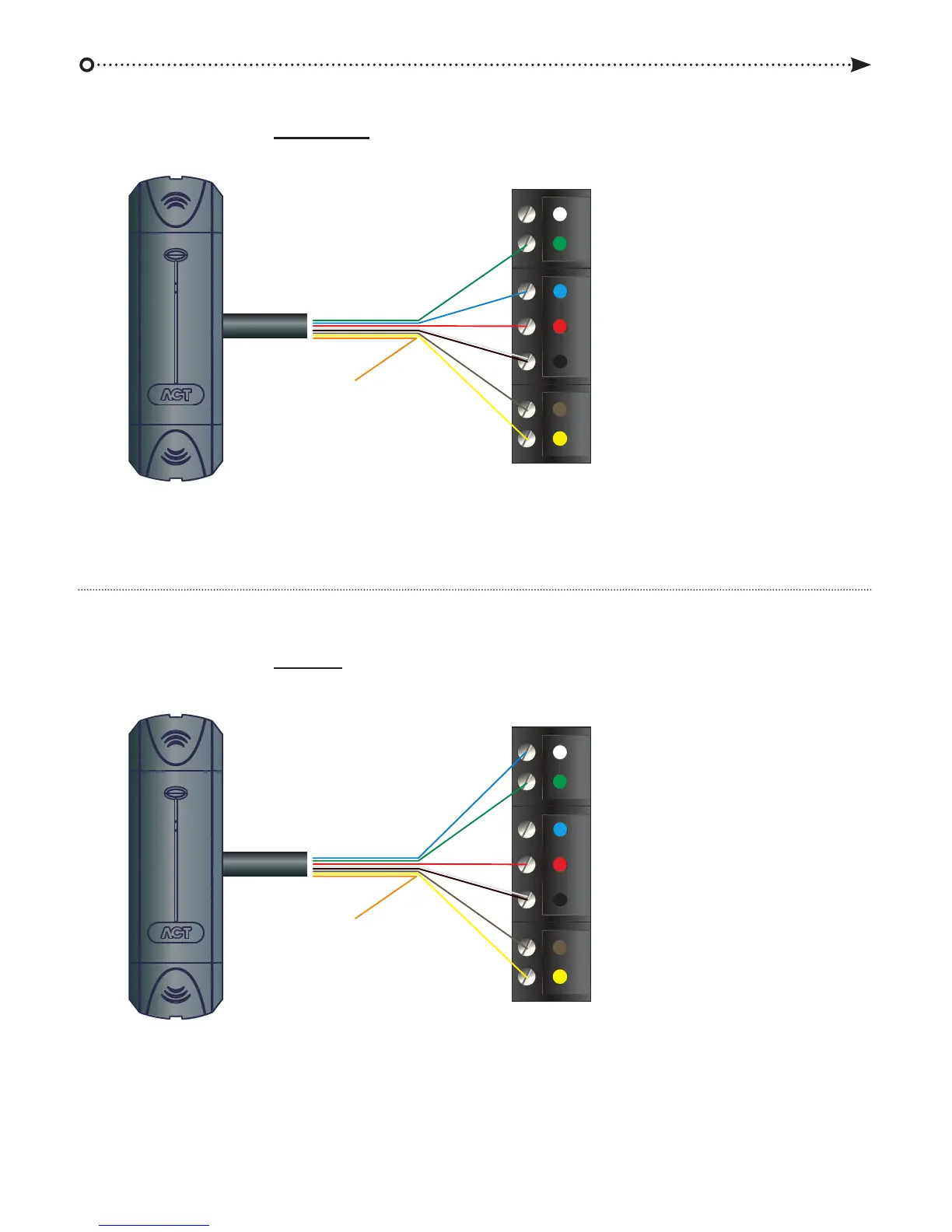

WIEGAND Entry Reader - Wiring
WIEGAND Exit Reader - Wiring
SENSE
CLOCK / D1 (Green)
DATA / D0 (Blue)
+12V (Red)
OV / GND (Black, White)
RED (Brown)
GREEN (Yellow)
CONNECT TO BUZZER
SENSE (Blue)
CLOCK / D1 (Green)
DATA / D0
+12V (Red)
OV / GND (Black, White)
RED (Brown)
GREEN (Yellow)
CONNECT TO BUZZER
IMPORTANT: To put ACT readers into wiegand mode
connect the SENSE on the reader to 0V/GND.
IMPORTANT: To put ACT readers into wiegand mode
connect the SENSE on the reader to 0V/GND PIN and
DATA/D0 to the SENSE PIN on the controller.
