PNEUMATIC ACTUATORS
ASSEMBLY & MAINTENANCE PROCEDURES
Ref. Doc. MMMACTREGDRE English Rev.2 – January 2012
12

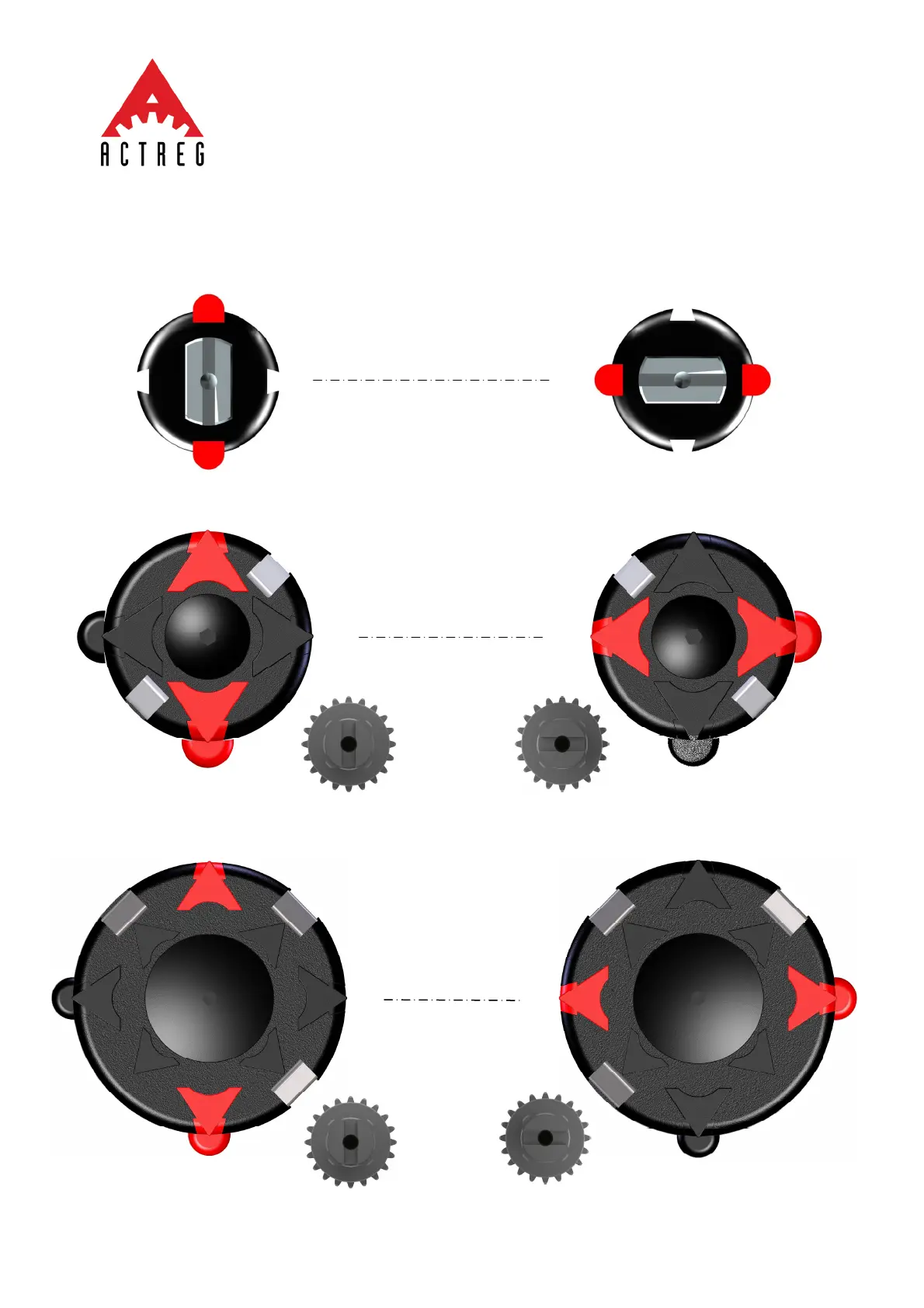

PIPE AXIS
Closed Position
Open Position
Model ADA-10
PIPE AXIS
Models 20 to 850
Models 1200 to 4000
PIPE AXIS
