PNEUMATIC ACTUATORS
ASSEMBLY & MAINTENANCE PROCEDURES
Ref. Doc. MMMACTREGDRE English Rev.2 – January 2012
6

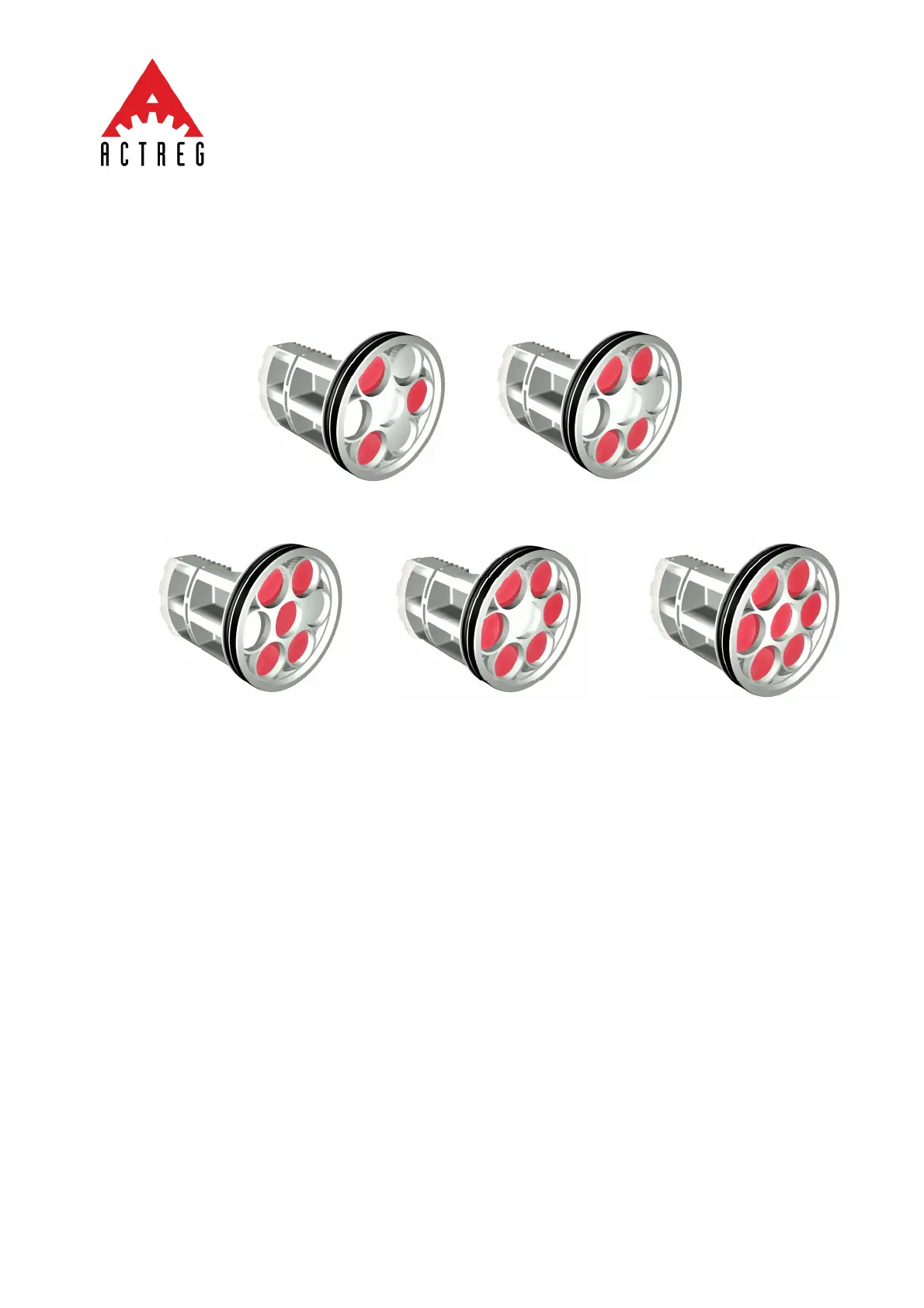

1.1.3 ACTUATORS SIZES ASR-130 ~ 4000
The actuators ASR-130 ~ 4000 use a minimum of 3 springs and a maximum of 7 springs
on each side, according to the diagrams below, depending on the springs combination that
require to be assembled.
2. GENERAL INFORMATION
2.1 STATEMENT
ACTREG Actuators sizes 300 and smaller
ACTREG S.A. states that Actreg Actuators covered by this Certificate have been designed and
manufactured in accordance with the following European Directives requirements:
- European Pressure Equipment Directive 97/23/CE: classified according to Article 3, Part 3, Cat.
SEP, must not carry the CE label.
- Machines Directive 89/392/CEE.
- Directive 94/9/CE ATEX, classification Group II, Cat. 2 for use in explosive atmospheres, Zones
1,2 & 21,22. Conformity evaluation according to Appendix VIII.
Marking CE Ex II2GDc.
-EN 15714-3
Applied harmonized and non-harmonized Technical Standards:
- See ACTREG’s Catalogue & Assembly & Maintenance Procedures.
- EN 13463-1:2001, EN 1127-1.
The electrical & mechanical accessories are not covered by this statement and will have to
carry their own certificate in order to be assembled with the Actreg Actuators.
