nLight ECLYPSE Enclosure
12"
12 3/4"
8-Relay
Panel
20 3/4"
16-Relay
Panel
3/4"
1 1/8" 1 1/8"
3/4"
14 1/4"
2 1/8"
TYP
10" TYP
1 5/16"
TYP
14 1/4"
8-Relay
Panel
22 1/4"
16-Relay
Panel
4"
5/8"
3/4"
n9/32" Mounting Holes
4 Places
All knockouts are dual
concentric style for 1/2"
& 3/4" trade size fittings
For Flush Mount Installations:
Alignment markings on all sides for 5/8" & 3/4" thick wallboards.
Align with stud surfaces for proper protrusion of box edge to be
flush finished wall surface. Verify with actual wall material
thicknesses to ensure a proper finished installation.
wall
stud
wall board
align marks with wall stud surface
for flush mount installs
Flush Mount
Install example
Flush
8-RELAY SIZED PANEL SHOWN, BUT APPLIES TO 16-RELAY VERSION
Box Dimensions & Installation Application Notes
TOP
912-00023-001
Page 3
Acuity Brands | One Lithonia Way Conyers, GA 30012 Phone: 800.535.2465 www.acuitycontrols.com © 2017 Acuity Brands Lighting, Inc. All rights reserved. 06/21/17

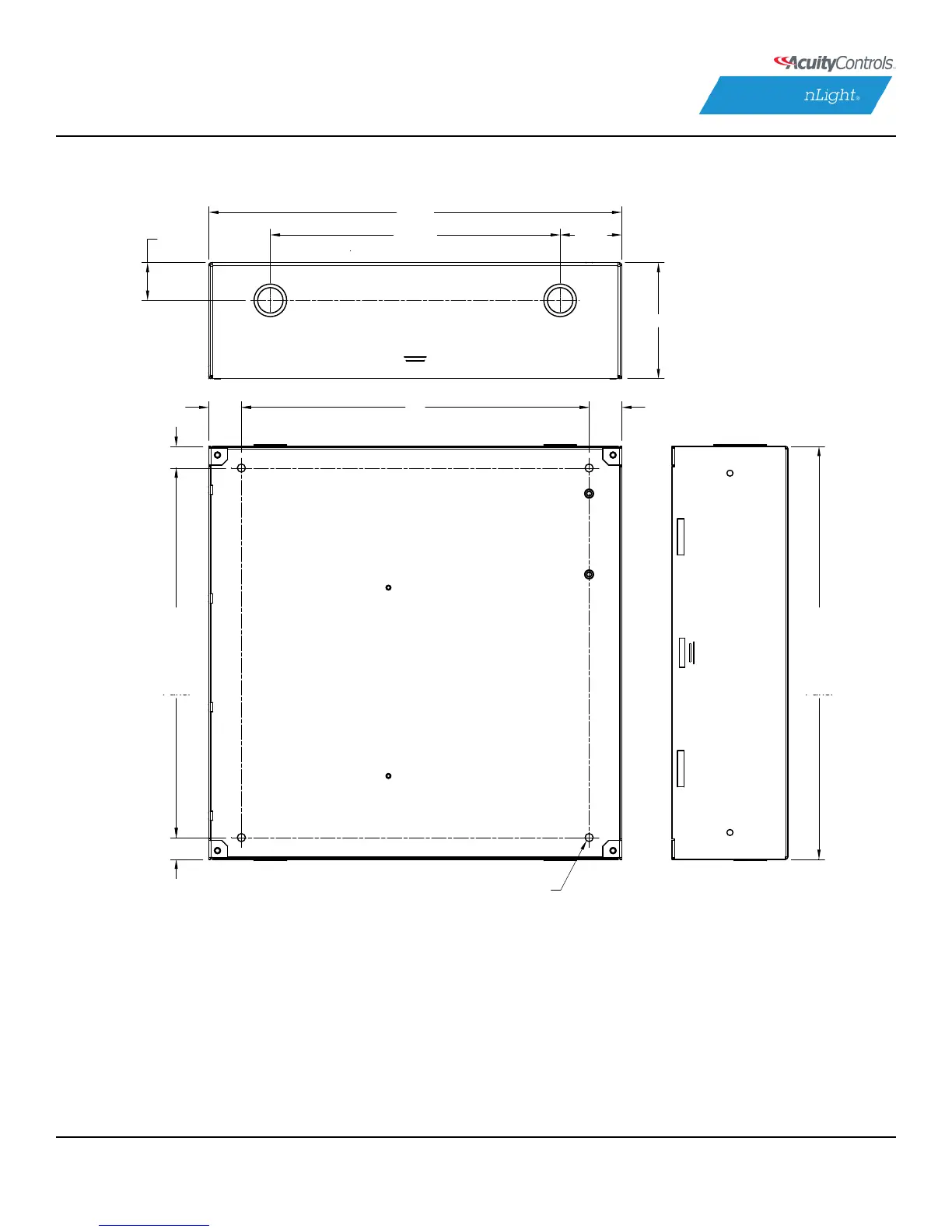

SURFACE MOUNT ENCLOSURE MOUNTING AND KNOCKOUT DIMENSIONS
