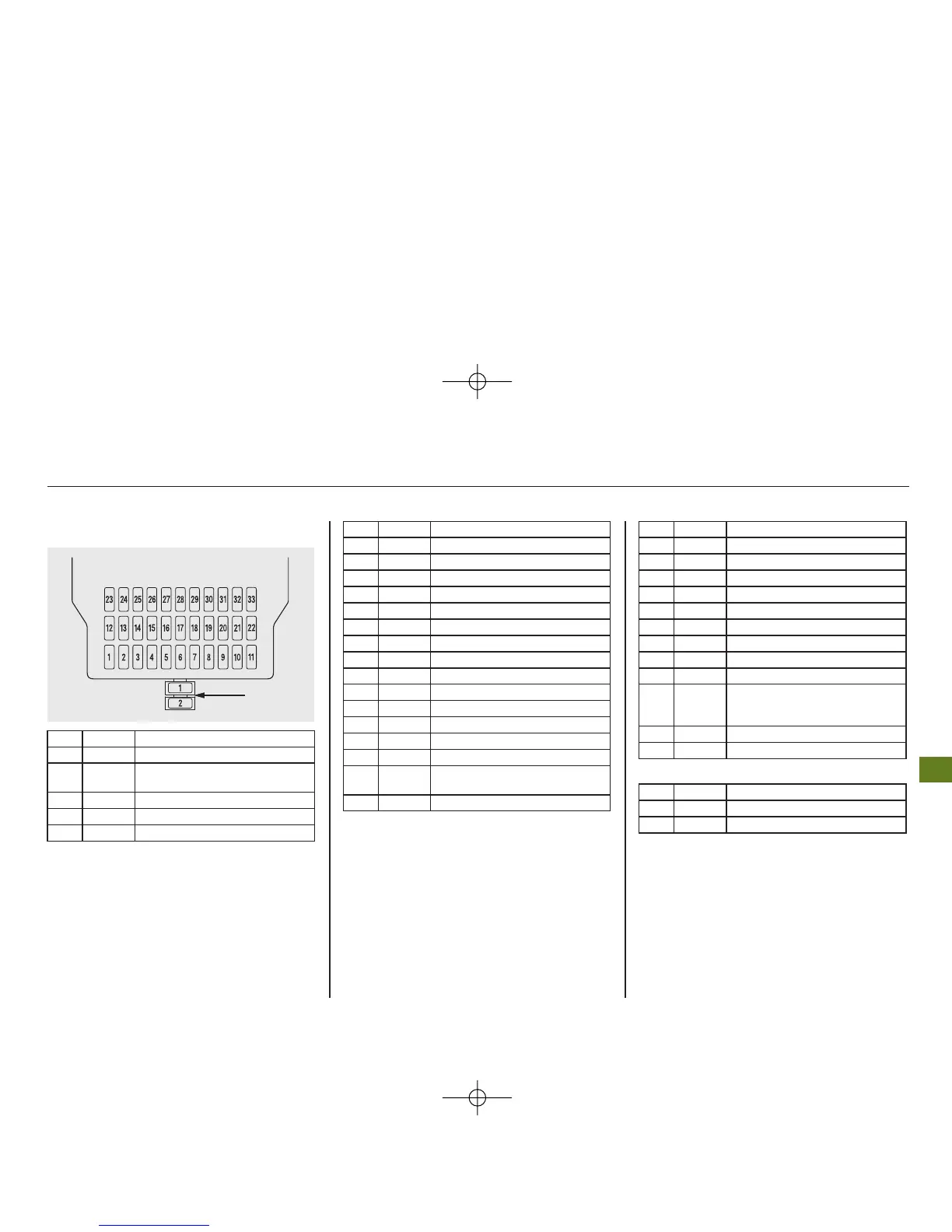

INTERIOR FUSE BOX
No. Amps. Circuits Protected
1 7.5 A TPMS
2 10 A Driver's Lumbar Support
Motor
3 15 A Moonroof
4 20 A Front Heated Seats
5 10 A Audio
No. Amps. Circuits Protected
6 7.5 A Interior Light
7 10 A Interior Light, Moonroof
8 20 A Door Lock
9 15 A ACC Socket
10 15 A IG Coil
11 30 A Windshield Wiper
12 10 A Subwoofer
13 20 A Passenger's Power Recline
14 20 A Driver's Power Slide
15 20 A Telescope Steering Wheel
16 20 A Driver's Power Recline
17 20 A Passenger's Power Slide
18 10 A Alternator
19 20 A Fuel Pump
20 7.5 A SH-AWD, Active Damper
Control Unit
21 7.5 A Gauges
No. Amps. Circuits Protected
22 10 A SRS
23 Not Used
24 20 A Left Rear Power Window
25 20 A Right Rear Power Window
26 30 A Passenger's Power Window
27 30 A Driver's Power Window
28 20 A Tilt Steering Wheel
29 10 A ABS VSA
30 10 A A/C
31 15 A
Headlight Auto Leveling,
Rear Wiper, Windshield/
Rear Washer
32 10 A ACC
33 Not Used
Auxiliary
No. Amps. Circuits Protected
1 7.5 A Starter DIAG
2 7.5 A STS
Auxiliary
Fuse Locations
445
Taking Care of the Unexpected
