To remove the left engine
compartment cover:
To remove the right engine
compartment cover:
Remove the battery and front
bulkhead covers (see page ).
Remove the holding clips by
pushingonthecenterofeach
fastener head.
Take the windshield washer hose
out from the holder on the bottom
side of the cover.
When reinstalling the covers, make
sure the pins and tabs are in their
proper positions.
Remove the holding clips by
pushingonthecenterofeach
fastener head.
Remove the battery cover (see
page ).
1.
2.
1.
2.
3.
450
450

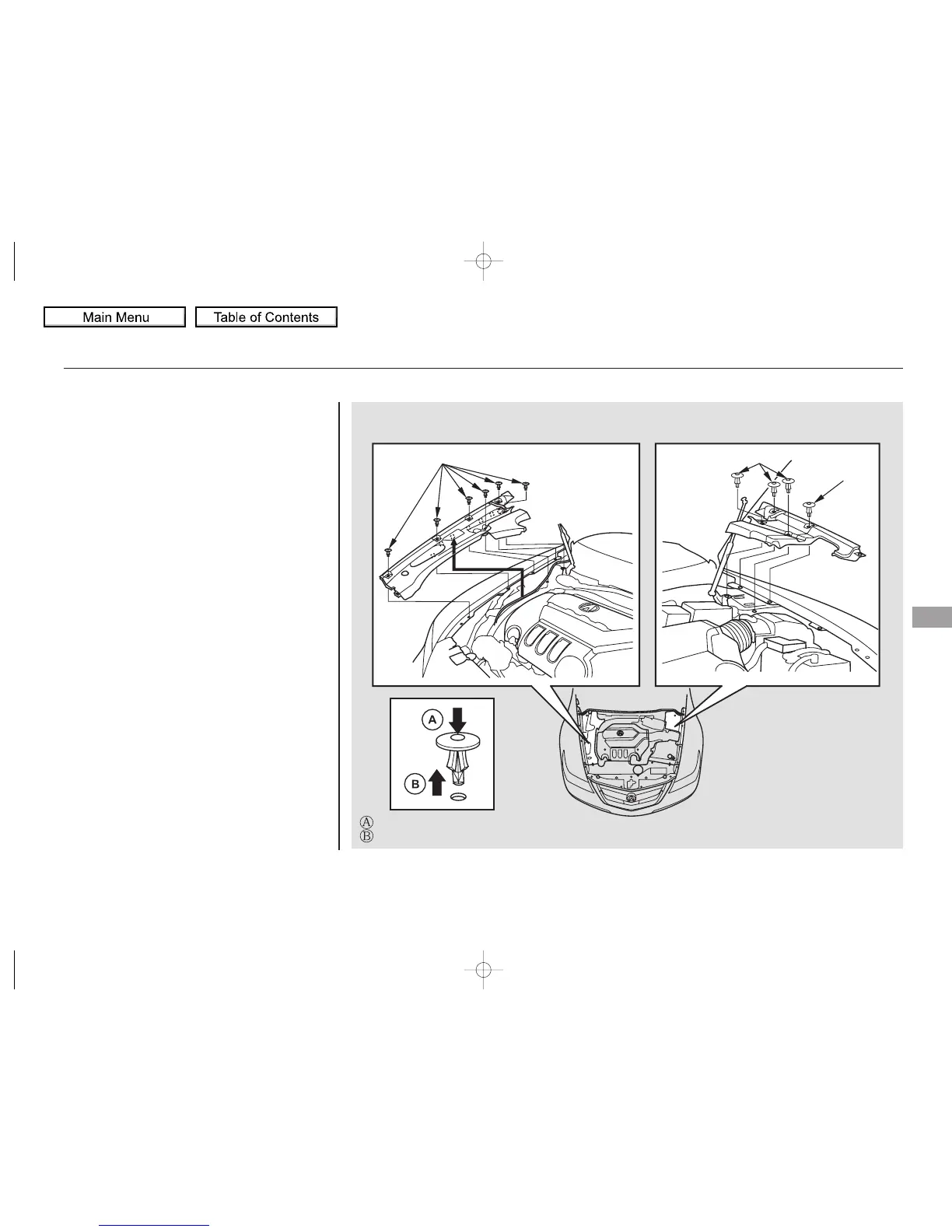

Engine Compartment Covers
Maintenance
451
RIGHT ENGINE COMPARTMENT LEFT ENGINE COMPARTMENT
:
:
Push to remove clip
Push to reset/install clip
CLIPS CLIPS
CLIP
