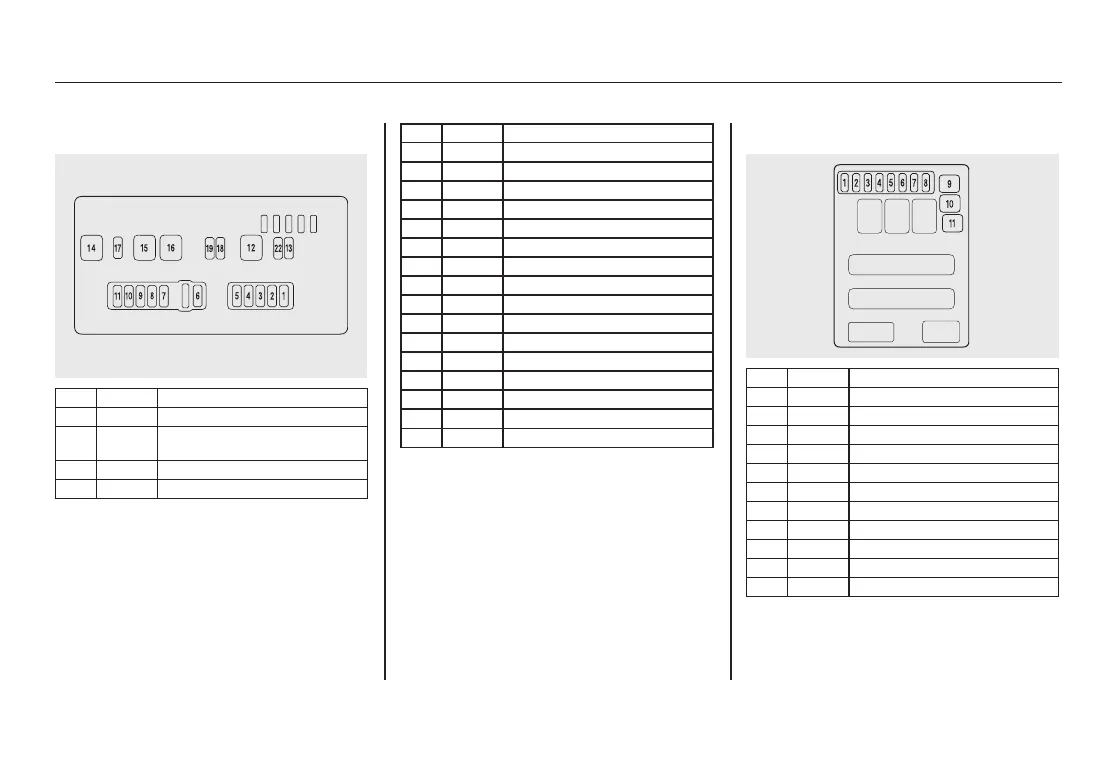

SECONDARY UNDER-HOOD FUSE BOX
No. Amps. Circuits Protected
1 10 A Left Daytime Running Light
2 10 A Right Daytime Running
Light
3 10 A Left Headlight High
4 10 A Right Headlight High
No. Amps. Circuits Protected
5 7.5 A Small Lights (Exterior)
6 30 A Headlight Low Main
7 7.5 A Cooling Fan Timer
8 15 A IGP
9 15 A IG Coil
10 15 A DBW
11 15 A AFHT
12 40 A Front Blower Motor
13 20 A Fog lights
14 30 A Headlight Washer
ꭧ
15 30 A Condenser Fan
16 30 A Cooling Fan
17 7.5 A MG Clutch
18 15 A Left Headlight Low
19 15 A Right Headlight Low
22 7.5 A Small Lights (Interior)
ꭧ: Canadian model
REAR FUSE BOX
No. Amps. Circuits Protected
1 － Not Used
2 － Not Used
3 － Not Used
4 － Not Used
5 10 A Rear ACC Socket
6 20 A Power Tailgate
ꭧ
7 － Not Used
8 7.5 A Cargo Area Light
9 30 A SH-AWD
10 30 A Rear Defroster
11 40 A Power Tailgate
ꭧ: If equipped
Fuse Locations
444
