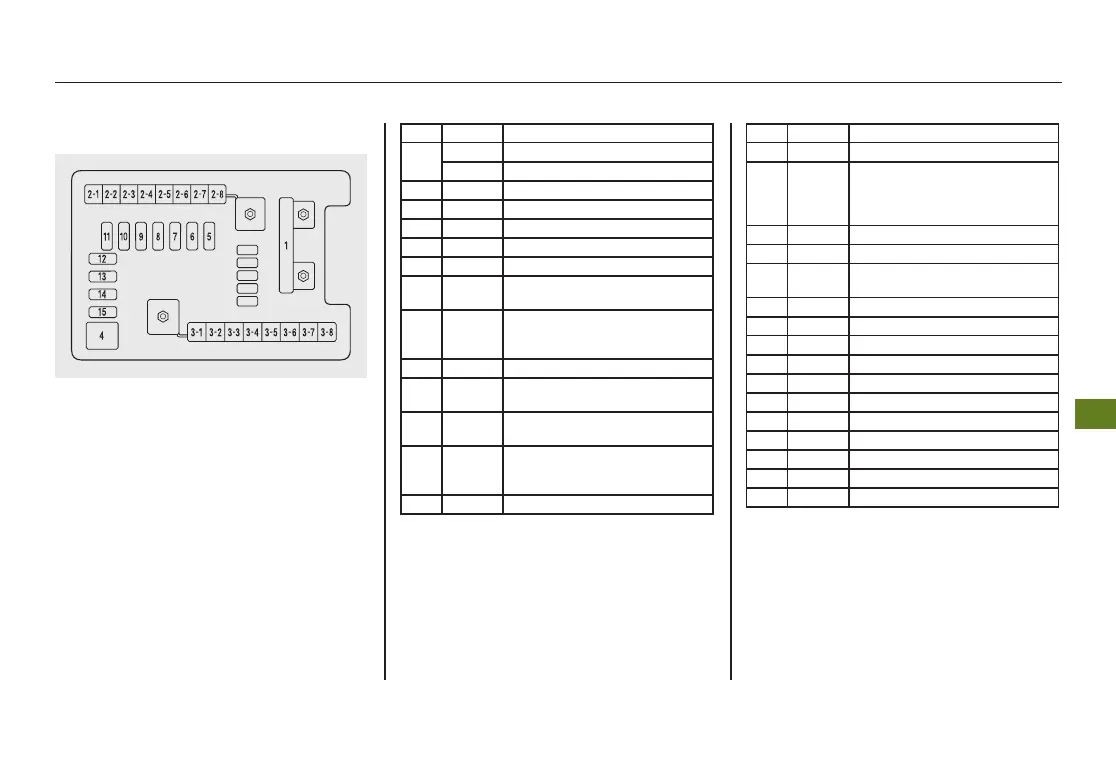

PRIMARY UNDER-HOOD FUSE BOX
No. Amps. Circuits Protected
1 120 A Main fuse
－ Not Used
2－1 － Not Used
2－2 － Not Used
2－3 30 A Rear Blower Motor
2－4 40 A ABS VSA
2－5 40 A Trailer Main
2－6 40 A Power Seats, Driver's Position
Memory System, Subwoofer
2－7 40 A Front Heated Seat, TPMS,
Moonroof, Driver's Lumbar
Support
2－8 － Not Used
3－1 60 A Fog Lights, Front Blower
Motor
3－2 40 A Headlights, Daytime Running
Lights
3－3 60 A Cooling Fan, Condenser Fan,
MG Clutch, Headlight
Washer
ꭧ
3－4 50 A Ignition Switch Main
ꭧ: Canadian model
No. Amps. Circuits Protected
3－5 50 A Power Window
3－6 60 A SH-AWD, Power Tailgate
Open/Closer, Rear ACC
Socket, Cargo Area Light,
Rear Defroster
3－7 30 A ECU (PCM)
3－8 － Not Used
4 40 A Audio, Door Lock, Interior
Lights
5 － Not Used
6 － Not Used
7 30 A Active Damper Control Unit
8 30 A Audio Amplifier
9 7.5 A Rear Entertainment System
10 15 A Hazard
11 15 A Horn, Stop
12 20 A ABS VSA
13 20 A Trailer (Brake)
14 20 A Rear Heated Seat
15 20 A A/C Inverter
CONTINUED
Fuse Locations
443
